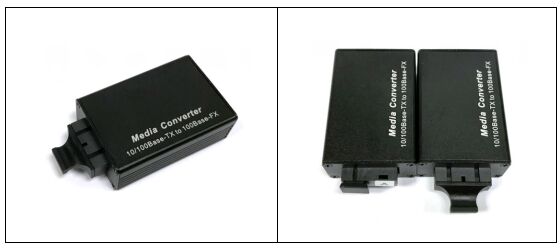

Mini 1-Port 10/100Base-TX to 100Base-FX Fiber Media Converter —— High Performance And Reliable Network
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | Mini 1-Port 10/100Base-TX to 100Base-FX Fiber Media Converter |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | Mini 1-Port 10/100Base-TX To 100Base-FX Fiber Media Converter | Ethernet Port Connector: | RJ45；SC/FC/ST |
|---|---|---|---|
| Transmission Rate:: | 10/100Mbps Self-adaption | Transmission Distance:: | 2km～100km |
| Operating Temperature: | -10 ~ 505℃ | Store Temperature: | -40~ 70 ℃ |
| Humidity: | 5%~90% | Size:: | 62.3 × 42.3 × 22mm |
| Warranty: | 1-5 Years | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | Mini 1-Port fiber media converter,10/100Base-TX to 100Base-FX converter,High-performance fiber optic media converter |
||
Product Description
Mini 1-Port 10/100Base-TX to 100Base-FX Fiber Media Converter
High Performance and Reliable Network Solution
Product Overview
This mini Fast Ethernet fiber optic transceiver features one 10/100M Ethernet port and one 155M optical port. It converts 10/100Base-TX twisted pair electrical signals to long-distance 100Base-FX optical signals, extending network transmission distance from 100 meters over copper to up to 100 kilometers. The converter provides isolation protection, enhanced data security, superior stability, and easy maintenance.
The compact aluminum alloy housing ensures excellent heat dissipation while providing an attractive, refined appearance.
Application Scenarios
Key Features
- Supports conversion between 10/100Base-TX and 100Base-FX
- 1 full duplex 155Mbps optical port and 1 10/100M adaptive electrical port
- 10/100M rate adaptive, MDI/MDI-X adaptive, full/half duplex adaptive
- Connection/activity status indicators for all optical/electrical ports
- Supports IEEE802.1 spanning tree protocol for simplified networking
- QoS support for efficient network operation
- Broadcast storm suppression capability
- Custom 5-16VDC wide voltage input support
- Supports up to 1552 bytes long packet transmission
- Full power consumption of only 1W
- Low latency transmission with isolation protection
- Plug-and-play operation with no configuration required
- Low-power chip design for minimal heat and stable long-term operation
- Compact size suitable for installation in small spaces
- Lightweight design at only 0.06kg for economical transport
- Aluminum alloy housing for superior heat dissipation and refined appearance
Technical Specifications
| Protocol Standards | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3x Flow control, IEEE802.1q VLAN, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
|---|---|
| RJ45 Port Parameters | Connector: RJ45 Transmission Rate: 10/100Mbps Self-adaption Cable Type: UTP-5E or higher Transmission Distance: 100 meters |
| Fiber Port Parameters | Connector: SC/FC/ST Transmission Rate: 155Mbps Fiber Wavelength: 850nm/1310nm/1490nm/1550nm Fiber Type: Single mode 9/125μm, multimode 50/125μm, 62.5/125μm Transmission Distance: 2km-100km |
| Performance | Forwarding: Store and forward Transmission mode: full duplex/half duplex adaptive MAC address table: 1K Frame memory: 448Kbit Network delay: ≤150μs |
| Power | Power supply type: external power supply Connector: DC socket, 2.5 × 5.0mm Operating voltage: 5V Power consumption: 0.7W-1.5W |
| Working Environment | Storage temperature: -40 to 70℃ Working temperature: -10 to 55℃ Working humidity: 5% to 90% non-condensing |
| Mechanical Structure | Size: 62.3 × 42.3 × 22mm Net Weight: 0.06KG Color: Black |
Why Choose TAKFLY
- 26+ years of fiber optic manufacturing experience
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment for quality assurance
- OEM branding accepted
- Global exhibition participation
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
