125M~2.5G Optical-Electrical-Optical Converter SFP+ to SFP+ —— High Performance & Efficiency
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 125M~2.5G Optical-Electrical-Optical Converter SFP+ to SFP+ —— High Performance & Efficiency |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 2000 nos/week |
|
Detail Information |
|||
| Product Name: | 125M~2.5G Optical-Electrical-Optical Converter SFP+ To SFP+ —— High Performance & Efficiency | Interface Type: | SFP To/from SFP |
|---|---|---|---|
| Transmission Distance: | Up To SFP Module (Max 80Km) | Rack-mountable :: | AC 85 ～ 220V OR |
| Power Consumption:: | ≤3W | Operating Temp: | 0~50°C |
| Storage Temp:: | -10 ～ 70 ℃ | Humidity: | 5%~90% |
| Dimension: | Standalone: 156mm (W)× 128mm (D)× 32mm(H) | ||
| Highlight: | SFP+ to SFP+ fiber converter,125M~2.5G optical-electrical converter,high-performance fiber optic media converter |
||
Product Description
125M~2.5G Optical-Electrical-Optical Converter SFP+ to SFP+
High Performance & Efficiency Optical-Electrical-Optical Converter supporting transmission rates from 125Mbps to 2.5Gbps.
Application Scenarios
Fast Ethernet, STS-3/STM-1, ESCON/SBCON, STS-12/STM-4, 1×Fiber Channel, Gigabit Ethernet, 2×Fiber Channel, STS-48/STM-16, 2.5 InfiniBand.
Key Features
- Support 2U Rack (16 Slots) and independent use
- Support network management (Web SNMP, Console)
- Support in-band management
- Support ITUT prescribed DWDM/CWDM wavelength
- Transmission rate: 125Mbps~2.5Gbps
- Support Jumbo Frame
- Transparent Transport and very low delay
- Support DMI function for SFP fiber module
- Support hot plugging
- Full State Led display
- Easy installation
Technical Specifications
| Performance Data | Technical Indexes |
|---|---|
| Access Type / Transmission Speed |
Fast Ethernet: 125Mbps STS-3/STM-1: 155.52Mbps ESCON/SBCON: 200Mbps STS-12/STM-4: 622.08Mbps 1×Fiber Channel: 1.0625Gbps Gigabit Ethernet: 1.25Gbps 2×Fiber Channel: 2.125Gbps STS-48/STM-16: 2.48832Gbps 2.5 InfiniBand or PCI Express: 2.5Gbps |
| Interface Type | SFP to/from SFP |
| Transmission Distance | Up to SFP module (Max 80Km) |
| Local SFP | Support SFP/CWDM/DWDM, Specific optical parameters please refer different modules's parameters |
| Remote SFP | Support SFP/CWDM/DWDM, Specific optical parameters please refer different modules's parameters |
| Power Requirement | Rack-mountable: AC 85～220V OR DC -48V dual-supply, optional Standalone: AC 220V OR -48V Power consumption: ≤ 3W |
| Work Environment | Operating Temp: 0～50℃ Storage Temp: -10～70℃ Humidity: 5%~90% (non-condensing) |
| Dimension | Card: 11.5mm (W)×78mm (D) Standalone: 156mm (W)×128mm (D)×32mm(H) |

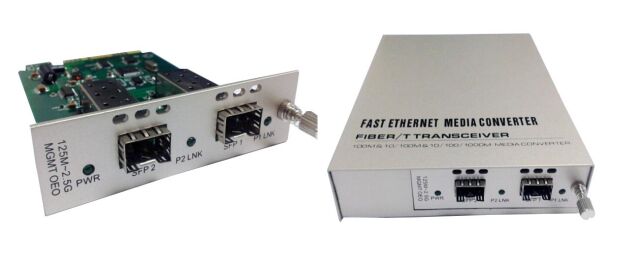

Product Image
Why Choose TAKFLY?
- 26+ years of fiber optic product manufacturing expertise
- 450+ experienced assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers driving continuous innovation
- 16 Germany-imported injection machines and advanced production lines
- 30+ testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- Comprehensive quality testing with tension strength and crush resistance testers
- Power meter testers and light checkers for quality assurance
- OEM branding accepted
- Regular participation in major industry exhibitions worldwide
Quality Control Process
- Raw material spot checks during incoming inspection
- Full inspection after completion of every production process
- Comprehensive half-done production checks
- Thorough finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per customer requirements
