40G OEO Fiber Media Converter 3R Repeater QSFP+ to QSFP+ —— High Performance & Efficiency
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 40G OEO Fiber Media Converter 3R Repeater QSFP+ to QSFP+ —— High Performance & Efficiency |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 2000 nos/week |
|
Detail Information |
|||
| Product Name: | 40G OEO Fiber Media Converter 3R Repeater QSFP+ To QSFP+ —— High Performance & Efficiency | Equipment Function: | 3R Repeater |
|---|---|---|---|
| Access Type: | 40G Ethernet | Interface Type: | QSFP To/From QSFP |
| Rack-mountable :: | AC 85 ～ 220V OR DC -48V | Power Consumption:: | ≤8W |
| Operating Temp: | 0~50°C | Humidity: | 5%~90% |
| Dimension: | Standalone :156mm（ W ）×128mm（ D ）× 32mm（ H ） | ||
| Highlight: | 40G QSFP+ fiber media converter,QSFP+ to QSFP+ 3R repeater,high performance fiber optic converter |
||
Product Description
40G OEO Fiber Media Converter 3R Repeater QSFP+ to QSFP+
High Performance & Efficiency Media Converter for 40G/10G Ethernet Networks
The 40G OEO Fiber Media Converter 3R Repeater QSFP+ to QSFP+ provides media conversion and distance extension for 40G or 10G Ethernet links. This hot-swappable device features two QSFP sockets for QSFP transceivers.
Application Scenarios
- Media conversion and distance extension for 40G or 10G Ethernet links
- Media conversion (multi-mode to single-mode) and link range extension
- Compatible with multi-mode QSFP for MPO MM (40G) or fan-out cables for quad 10G interfaces
Key Features
- Support 2U Rack (16 Slots) and independent use
- Support network management (Web SNMP, Console)
- 3R function (Re-amplify, Reshape, Retime)
- Support Jumbo Frame
- Transparent Transport with very low delay
- Support DMI function for QSFP fiber module
- Support 1*40G Mode and 4*10G Mode
- Support Loopback test function
- Support hot plugging
- Full State LED display
- Easy installation
Technical Specifications
| Performance Data | Technical Indexes |
|---|---|
| Equipment function | 3R Repeater |
| Protocols | Multiple functions in one module: - 40G converter/repeater - Quad 10G optical multiplexer 40G link interface: - Ethernet/IEEE: 802.3ba 40GE-LR4/SR4 10G interfaces: - 9.95 - 11.35 Gbps |
| Access Type | 40G Ethernet |
| Network management information | Card type information QSFP fiber module DMI function (Temperature, Voltage, Optical power) Link status detector Enable/Disabled Loopback test function Enable/Disable PRBS Generator and checker function |
| Interface Type | QSFP To/From QSFP |
| Transmission Distance | Up to QSFP module (Max 10Km) |
| Power requirement | Rack-mountable: AC 85～220V OR DC -48V Standalone: AC 220V OR -48V Power consumption: ≤8W |
| Work Environment | Operating Temp: 0~50℃ Storage Temp: -10~70℃ Humidity: 5%~90% (non-condensing) |
| Dimension | Card: 11.5mm(W)×78mm(D) Standalone: 156mm(W)×128mm(D)×32mm(H) |

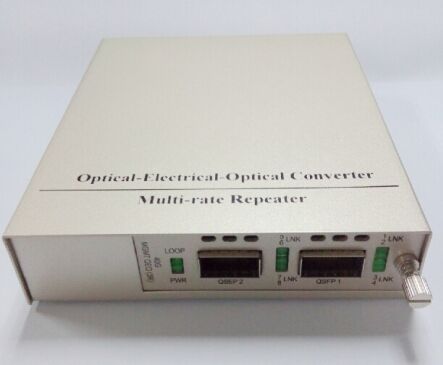

Product Image
Why Choose TAKFLY?
- 26+ years of fiber optic product manufacturing expertise
- 450+ experienced assembly workers with 3+ years of experience
- 10+ dedicated R&D Engineers driving continuous innovation
- 16 Germany-imported injection machines and advanced production lines
- 30+ testing equipment including OTDR, 3D, VFL, IL & RL test instruments
- Comprehensive quality testing with tension strength and crush resistance testers
- Power meter testers and light checkers for quality assurance
- OEM branding accepted
- Regular participation in major industry exhibitions worldwide
Quality Control Process
- Raw material spot checks during incoming inspection
- Full inspection after completion of every production process
- Comprehensive half-done production checks
- Thorough finished product inspection before packaging
- Final spot checks before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per customer requirements
