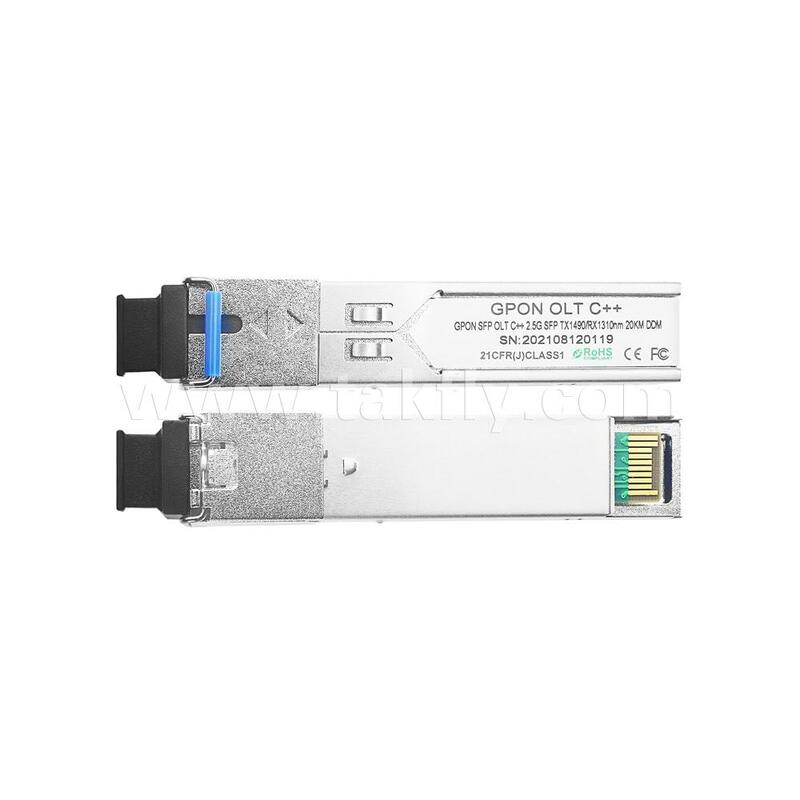

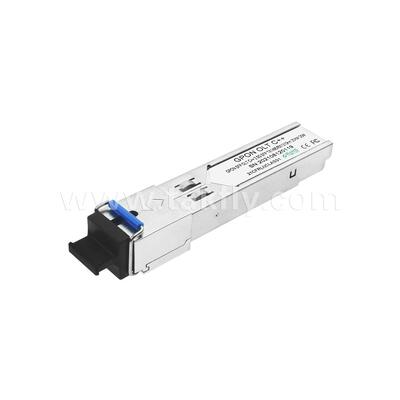

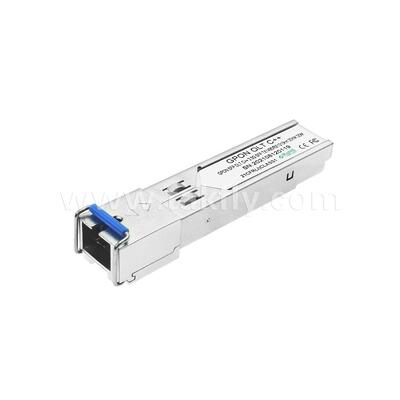

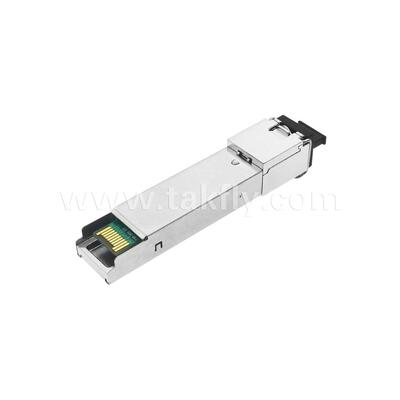

SFP Optical Transceiver Module GPON OLT Class C++ for Data Center FTTH FTTX
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | ISO, CE RoHS |
| Model Number: | GP4321-3SCDC2x |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD15-40/pc |
| Packaging Details: | Carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 50000pcs per month |
|
Detail Information |
|||
| Highlight: | GPON OLT Class C++ transceiver,SFP optical module for FTTH,FTTX data center transceiver module |
||
|---|---|---|---|
Product Description
The long-life class C++ GPON OLT SFP transceiver is engineered for point-to-multipoint (P2MP) Passive Optical Network (GPON) applications, conforming to rigorous ITU-T G.984.2 standards.
It excels in facilitating downstream transmission at 2488 Mbps and upstream at 1244 Mbps, featuring high-speed burst mode APD-TIA receiver and small form factor pluggable package with SC/UPC connector.
This GPON OLT transceiver module integrates a 1490nm continuous-mode 2.5Gbps DFB laser transmitter and a 1310nm burst-mode 1.25Gbps APD-TIA receiver. Compliant with Class 1 laser safety standard IEC 60825 and RoHS 6 compliant.
- Single fiber bi-directional data links asymmetric TX 2488Mbps / RX 1244Mbps application
- 1490nm continuous-mode DFB laser transmitter and 1310nm burst-mode APD-TIA receiver
- Small Form Factor Pluggable package with SC/UPC Connector
- Reset burst-mode receiver design support more than 15dB dynamic range
- 0 to 70°C operating temperature
- Single 3V power supply
- Digital diagnostic monitoring interface
- Digital burst RSSI function to monitor the input optical
- LVPECL compatible data input/output interface
- LVTTL transmitter disable control
- LVTTL transmitter laser fault alarm
- LVTTL receiver Signal Detect
- Low EMI and excellent ESD protection
- Class I laser safety standard IEC-60825 compliant
- RoHS-6 compliance
Transceiver modules not only excel in converting photoelectricity, but also shoulder the responsibility to enhance the flexibility of network coverage. Suppose a failure occurs, they will make component replacement much easier, thus providing a feasible solution for long-distance communication link transmission.
Transceiver modules are the key components that meet the performance requirements of today's network architecture and are widely used in Data Centers, transmission networks, mobile broadband and more.
The long-life class C++ GPON OLT SFP transceiver is particularly suited to Gigabit Passive Optical Networks Class C++ 20km.
