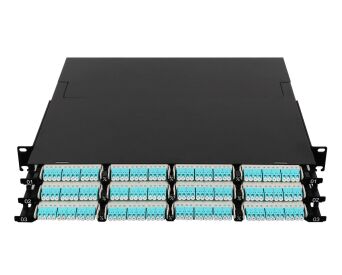

144 Core Super-high Density MPO Patch Panel
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 144 Core Super-high Density MPO Patch Panel |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 144 Core Super-high Density MPO Patch Panel | Fiber Type: | SM (G652, G655,G657); MM (OM1-OM5) |
|---|---|---|---|
| Connector: | Male (Pin Needle), Female MPO/MTP、 LC | Insertion Loss (dB): | ≤ 0.3 |
| Return Loss (dB): | UPC SM: 40dB APC SM: 60dB | Repeatability: | ≤ 0.1dB |
| Durability: | ≤ 0.2dB | Interchangeability: | ≤ 0.2dB |
| Bending Radius (Dynamic/static): | 20/10 | Product Name: | Racks、Cassette Module |
| Material: | 1.2mm Cold-rolled Steel | Designed In Accordance With: | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1 |
| Compliant To: | RoHS, Reach/SVHC | ||
| Highlight: | 144 core MPO patch panel,high density MPO patch panel,MPO patch panel with warranty |
||
Product Description
144 Core Super-high Density MPO Patch Panel
1U-19 inch MPO/MTP High-Density rack-mount fiber patch panel is designed for large data center room: MDF application, IDF wiring area optical fiber backbone connection, the fiber distribution unit management, and other high-density integrated optical fiber environments. It is installed in 19 inch racks and cabinets.
1U 19inch MPO/MTP Patch Panel could load 12 pre-connected cassette modules, and the maximum capacity can be managed is 144 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full patch panel.
Applications
- Optical fiber communication dense wiring system between buildings
- WAA
- LAN
- CATV
- Data center room of commercial building
- Telecommunication base station
- Optical link interconnection in optical active equipment for LAN cabling
- FTTH
- Data center room of industrial area
Features
- Installed in 19 inch rack-mount and cabinet, application for cassette modules centralized management
- 1U high-density size capacity 144 fibers for LC interface
- 2U high-density size capacity 288 fibers for LC interface
- 4U high-density size capacity 576 fibers for LC interface
- Male or Female MPO/MTP connector are available. Connected and positioned by PIN and adaptor to achieve precise and high stable connection
- Modular design, plug-in locking structure, the fiber has a clear line sequence identification, easy to test, install, remove and adjust the mating
- Sturdy and durable, electrostatic coating surface after the strict production process
- The cassette module and patch panel are small in size, lightweight, impact-resistant, high-pressure, flame-retardant, corrosion-resistant, strong structure to protect the internal optical fiber
Specifications
Packaging
Product Images
Why Choose TAKFLY
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM branding accepted
- Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available according to your requirements
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
