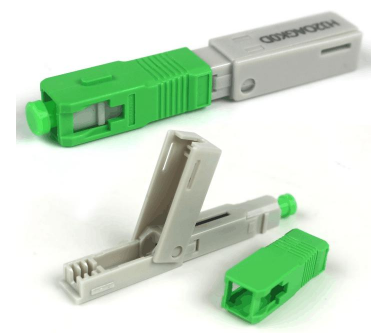

SC/APC Field Installable Fast Connector Specification (Embedded-APC) Item No.: TK-FC-SCA-E001
Product Summary
SC/APC Field Installable Fast Connector Specification (Embedded-APC) Item No.: TK-FC-SCA-E001 Description SC/APC Field Installable Fast Connector is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or ...
Product Custom Attributes
Product Name:
SC/APC Field Installable Fast Connector
Item No.::
TK-FC-SCA-E001
Cable Diameter::
0.9mm,2.0mm,3.0mm, 2.0*3.0mm
Fiber Diameter:
125um
Fiber Mode::
Single-mode Or Multimode
Insertion Loss::
≤0.5dB(Typical 0.2dB)
Return Loss::
≥55dB
Tensile Stength::
>40N
Operating Temperature:
-40°C～+85 °C
Fiber Brand:
Corning, YOFC, OFS, Draka
Basic Properties
Place of Origin:
China, Shenzhen
Brand Name:
DF/OEM/Nuetral
Certification:
CE/ROHS/REACH/ISO9001/ISO14001
Model Number:
TK-PC-48F-SC-OS2-50M
Trading Properties
Minimum Order Quantity:
negotiable
Price:
negotiable denpend on QTY
Packaging Details:
Blister box+Carton
Delivery Time:
5-9 working days depends on QTY
Payment Terms:
Western Union, T/T, MoneyGram/Paypal
Supply Ability:
1000PCS/Day
Product Description
SC/APC Field Installable Fast Connector Specification
(Embedded-APC)
Item No.: TK-FC-SCA-E001
Description
SC/APC Field Installable Fast Connector is used for field-installable optical fiber connector, widely used in Fiber To The Home (FTTH) access optical networks, not only for single-mode or multimode fiber, and can also choose to 900um,3 mm and the introduction of cable buffered type.
With fast installation time and low insertion loss, the connector system provides a good alternative to fusion splicing. Installation is as easy as strip, clean, cleave cam and crimp.
Product Application
-
Connections at the desk for LAN environments
-
Optical access network
-
Fiber to the Subscriber (FTTX) applications
-
Patch panels
-
Direct equipment termination
Product Features
-
Factory-installed fiber stub
-
No epoxy or polishing required
-
Quick and easy fiber termination in the field
-
Eliminates cable excess length and pigtail splice storage
-
Cost effective
Parameter
Product Pictures
Why Choose TAKFLY
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
