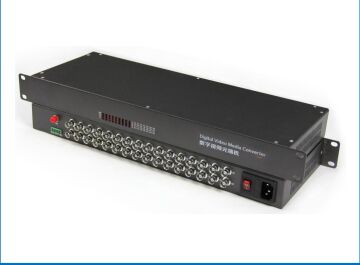

32 Channel Video Digital Optical Converter
Product Summary
32 Channel Video Digital Optical ConverterThis series of Digital Optical Converters adopts all-digital communication technology, capable of simultaneously transmitting 32 forward video channels and 1 reverse RS485/422 data channel over a single fiber. Utilizing non-compressed digital video encoding ...
Product Custom Attributes
Product Name:
32 Channel Video Digital Optical Converter
Video Channel:
32
Video Bandwidth:
5-8MHz
Sample Rate:
8bit/10bit
Signal To Noise Ratio:
≥ 65dB
Signal System:
PAL / NTSC / SECAM
Data Interface:
RS485
Data Rate:
DC-256Kbps
Fiber Brand:
Corning, YOFC, OFS, Draka
Transmission Wavelength:
1310nm/1550nm
Optical Interface:
FC / PC
Optical Dynamic Range:
17dB
Operating Temperature::
-40 ℃ ~ +75 ℃
Highlight:
32 channel digital optical converter
,video optical converter with warranty
,high power digital optical converter
Basic Properties
Place of Origin:
China, Shenzhen
Brand Name:
DF/OEM/Nuetral
Certification:
CE/ROHS/REACH/ISO9001/ISO14001
Model Number:
TK-PC-48F-SC-OS2-50M
Trading Properties
Minimum Order Quantity:
negotiable
Price:
negotiable denpend on QTY
Packaging Details:
Blister box+Carton
Delivery Time:
5-9 working days depends on QTY
Payment Terms:
Western Union, T/T, MoneyGram/Paypal
Supply Ability:
1000PCS/Day
Product Description
32 Channel Video Digital Optical Converter
This series of Digital Optical Converters adopts all-digital communication technology, capable of simultaneously transmitting 32 forward video channels and 1 reverse RS485/422 data channel over a single fiber. Utilizing non-compressed digital video encoding compatible with PAL, NTSC, and SECAM formats, it delivers broadcast-level image quality.
Featuring plug-and-play design for simple installation without on-site commissioning, these converters operate reliably across various environments with prolonged stability. LED status indicators monitor power and operational parameters, while lightning-proof design ensures equipment stability with no electromagnetic, radio frequency, or ground current interference.
Product Features
- Fully-digital, non-compressed broadcast fiber optic transmission
- Ultra-optical dynamic range, no adjustment required during use
- Compatible with PAL, NTSC, SECAM and other video formats
- RS232/485/422 data communication
- Three-level lightning protection
- Industrial design with high reliability for harsh environments
- Automatic power adjustment, temperature compensation, and overload protection with auto-restoration
- Full Surface Mount Technology
Performance Specifications
Video Indicators
| Parameter | Specification |
|---|---|
| Video Channels | 32 |
| Video Bandwidth | 5~8 MHz |
| Sample Rate | 8bit/10bit |
| Signal to Noise Ratio | ≥ 65dB |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.8° (typical) |
| Vertical Tilt | <0.5% (max) |
| Input/Output Impedance | 75Ω (unbalanced) |
| Input/Output Level | 1.0Vpp (typical) |
| Signal System | PAL/NTSC/SECAM |
Data Indicators
| Parameter | Specification |
|---|---|
| Data Interface | RS485/422 (optional) |
| Physical Interface | Five industrial terminal |
| Data Rate | DC-256Kbps |
| Bit Error Rate | <10E-12 |
Optical Indicators
| Parameter | Specification |
|---|---|
| Transmission Wavelength | 1310nm/1550nm |
| Optical Interface | FC/PC |
| Transmit Optical Power | -8dB |
| Receiver Sensitivity | -25dB |
| Optical Dynamic Range | 17dB |
| Maximum Optical Loss | 14dB |
| Transmission Distance | More than 20KM (single) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating Temperature | -40℃ ~ +75℃ |
| Humidity | 0 ~ 95% (no condensation) |
| Power Consumption | 2.5W @ DC5V |
| Dimensions | 1U*19' *155mm |
| MTBF | More than 100,000 hours |
Typical Applications
Security/Safe City building security monitoring; Highway and railway transportation remote monitoring systems; Urban public transport monitoring systems; E-police; Operator unattended engine room monitoring; Bank monitoring; Power system remote monitoring; Industrial and mining production process monitoring and management systems; Water flood control and reservoir site monitoring; Airport monitoring; Radio and television image transmission; School campus and examination room monitoring; High-rise buildings, intelligent buildings, intelligent communities, shopping malls and alarm monitoring; Customs barrier and warehouse video surveillance; Petrochemical facilities; Prison video surveillance; Confidential government agencies or departments monitoring and alarm systems; Military areas and military command control positions visualization; Forest fire command systems.
