4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 4K HDMI Fiber Optic Extender |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller | Standards: | HDMI 1.4 |
|---|---|---|---|
| Maximum Pixel Clock: | 225MHz | Maximum Data Rate: | 6.75Gbps |
| Connector: | Female HDMI Type A | Interface: | SFP Model – LC Connector |
| Wavelength: | Single-mode 1310nm | Operating Temperature:: | Operating: -5℃ ~ +70℃ |
| Humidity: | Operating: 5% ~ 90% | Dimension: | 94.5*73*26mm |
| The Warranty: | 1 Year | ||
| Highlight: | HDMI fiber optic extender cable,fiber optic HDMI extender with warranty,high power HDMI extender |
||
Product Description
4K HDMI 1.4 KVM Bidirectional Fibre Optic Video Extender 225MHz For Video Wall Controller
The HDMI Fiber Optic Extender provides long-distance transmission of HDMI and 3D signals over a single fiber optic cable. It supports high resolution up to 4K×2K and features EDID copy/pass-thru functionality. Ideal for applications requiring reliable long-distance transmission of high-resolution video with excellent stability and security.
4K HDMI Fiber Optic Extender Features
- Transmits HDMI video signals up to 2km-10km over a pair of fiber optic cables
- Supports video resolution up to 3860×2160@30Hz and 3D signals
- EDID copy/pass-thru function for compatibility with various display devices
- Compliant with HDMI 1.4 standard
- High compatibility with automatic source and display device matching
- Built-in automatic adjustment system for smooth, clear, and stable images
- Built-in ESD protection system
- Simple plug-and-play installation
4K HDMI Fiber Optic Extender Specifications
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 1.4 |
|
Maximum pixel clock |
225MHz |
|
|
Maximum data rate |
6.75Gbps |
|
|
Resolution range |
Up to 3840*2160@30Hz |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
Optic Fiber |
Interface |
SFP model – LC connector |
|
Fiber type |
Single-mode |
|
|
Optical fiber Wavelength |
Single-mode 1310nm |
|
|
Interface bandwidth |
10Gbps |
|
|
Transmission distance |
Single-mode fiber: standard 2km;maximum 10km |
|
|
Other |
Power supply |
The power adapter: DC 5V/2A |
|
Power dissipation |
MAX 5W |
|
|
Temperature Operating |
-5℃ ~ +70℃ |
|
|
Humidity Operating |
5% ~ 90% |
|
|
Dimension |
94.5*73*26mm |
|
|
The warranty |
1 year free warranty |
|
Panel

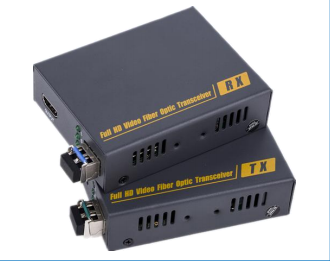

4K HDMI Fiber Optic Extender Images
Installation Guide
- Connect the provided DC power supplies to the power socket of the transmitter and receiver
- Connect an HDMI cable between the HDMI input port of transmitter and HDMI output port of video source
- Connect the HDMI output port of receiver to the display device with HDMI cable
- Connect the transmitter optical port to the receiver optical port using one fiber optic cable
4K HDMI Fiber Optic Extender Diagram
Why Choose TAKFLY?
- Over 26+ years of manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to product development
- 16 sets of Germany imported injection machines and 16 production lines
- 30+ sets of testing equipment including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding accepted
- Regular participation in international exhibitions including OFC, ECOC, and CommunicAsia
Quality Control
- Raw material inspection before production
- Full inspection after every production process
- Comprehensive quality checks during production
- Final product inspection before packaging
- Pre-shipment spot checks
Delivery Information
| Order Type | Delivery Time |
|---|---|
| Samples | 1-3 working days |
| Mass Production | 3-7 working days |
| Packaging | Plastic Bag, Carton and Pallet available per request |
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We will provide charges upon request.
Q4: Can I visit you?
A4: Yes, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise, please provide photos for our reference. Our QC department will investigate and provide solutions, and we will implement improvements for future production.
Q6: What are your packaging terms?
A6: Standard packaging includes blister boxes and cartons. Custom packaging is available upon customer request.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: What is your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can manufacture based on your samples or technical drawings.
