1x2 / 2x2 Single Mode Mini Fused Biconic Fiber Coupler for Optical Systems
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 1x2 / 2x2 Mini Fiber Coupler |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 1x2 / 2x2 Single Mode Mini Fused Biconic Fiber Coupler For Optical Systems | Product Description: | P Grade/A Grade |
|---|---|---|---|
| Operation Wavelength (nm): | 1310 Or 1550 Nm | Operating Bandwidth (nm): | ±15 |
| Insertion Loss（50/50））: | ≤3.6dB | PDL (50/50)(dB): | ≤0.15dB |
| Directivity (dB): | >=55 | Operating Temperature: | -40℃~+85℃ |
| Fiber Type: | G657A | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | mini fused biconic fiber coupler,1x2 fiber coupler high power,2x2 fiber coupler PM components |
||
Product Description
1x2 / 2x2 Single Mode Mini Fused Biconic Fiber Coupler for Optical Systems
1x2 / 2x2 Mini Fiber Coupler Applications
- EDFA Mini size EDFA
- Mini size transmitter
- Mini size receiver module
- Optical communication systems
- Testing instruments
1x2 / 2x2 Mini Fiber Coupler Features
- Low excess loss
- Mini Size
- Low PDL
- High stability
- High reliability
1x2 / 2x2 Mini Fiber CouplerSpecifications
|
Product Description |
P |
A |
|
|
Operation Wavelength (nm) |
1310 or 1550 |
||
|
Operating bandwidth (nm) |
±15 |
||
|
Insertion Loss(dB) |
50/50 |
≤3.4 /3.4 |
≤3.6/3.6 |
|
40/60 |
≤4.4/2.5 |
≤4.6/2.7 |
|
|
30/70 |
≤5.7/1.8 |
≤5.9/2.0 |
|
|
20/80 |
≤7.5/1.2 |
≤7.7/1.4 |
|
|
10/90 |
≤10.8/0.7 |
≤11.5/0.8 |
|
|
5/95 |
≤14.6/0.4 |
≤15.7/0.5 |
|
|
2/98 |
≤19.0/0.3 |
≤19.5/0.4 |
|
|
1/99 |
≤21.0/0.25 |
≤21.5/0.35 |
|
|
Uniformity (50/50) (dB) |
≤0.10 |
≤0.15 |
|
|
Directivity (dB) |
≥55 |
||
|
Operating Temperature℃ |
-40 ~ +85 |
||
|
Fiber Type |
G657A |
||
Note: All insertion loss and insertion loss referenced without connectors.

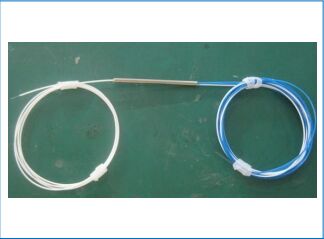

1x2 / 2x2 Mini Fiber Coupler Pictures
1x2 / 2x2 Mini Fiber Coupler Packaging
Why Choose TAKFLY?
- With more than 26+ years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL & RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
