10/100/1000M Media converter Specification
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 10/100/1000M Media converter |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 2000 nos/week |
|
Detail Information |
|||
| Product Name: | 10/100/1000M Media Converter Specification | Access Method: | 10/100/1000Mbps |
|---|---|---|---|
| Standard: | IEEE802.3,IEEE802.3U,IEEE802.3ab ,IEEE802.3Z ,EEE802.19,IEEE802.1P,IEEE80 2.1d | Wavelength: | 850/1310/1550nm |
| Distance: | Dual Fiber LC Type MM: 550m,Dual Fiber SM: 10/2030 15080Km,Single Fiber SM: 20140160Km. CAT5: 100m | Time Delay: | <10us |
| Power Supply: | DC5V 1A (external Power),AC220 0.5A /DC-48( Internal Power ) | Power Dissipaion: | 3W |
| Operating Temperature: | Operating Temperature : 0~50ºC | Environment: | Humidity: 5% To 90% Non-condensing |
| Storage Temperature: | -40~70ºC | Dimensions: | External:94mmx70mmx26mm;Internal:140mmx110mmx30mm |
| Highlight: | 10/100/1000M media converter,gigabit media converter fiber optic,media converter with fiber connector |
||
Product Description

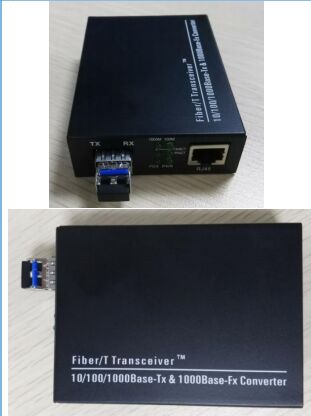

10/100/1000M Media Converter Specification
10/100/1000M Media converter Overview
Advanced media converter supporting conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and 1000Base-SX/LX with full-duplex 1000M working pattern.
10/100/1000M Media converter Features
- HLC solution with low-temperature-rise chip, eliminating need for cooling system
- Flow control implementation to decrease broadcast storm
- Premium optical-electronic-integration module ensuring reliable data transmission and extended working life
- Broadcast filtering, address auto-learning and auto-updating capabilities
- Store-and-forward operating mechanism
- Full-duplex flow control or half-duplex back pressure working patterns with Auto-negotiation
- 9kbyte super data packet transmission via store and forwarder mode
- Comprehensive indicator lamps for link-loss, electrical and optical link diagnostics
- Dynamic data transmission monitoring and full/half duplex, data rate indicators
- MTBF exceeding 50,000 hours, compliant with telecom operating standards
- Flexible optical port options: dual fiber (MM), dual fiber (SM), single fiber (SM)
10/100/1000M Media converter Specifications
|
Access Method |
10/100/1000Mbps |
|
Standard |
IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE80 2.1d |
|
Wavelength: |
850nm/1310nm/1550nm |
|
Distance: |
Dual Fiber LC type MM: 550m, Dual Fiber SM: 10/20/30 /50/80Km, Single Fiber SM: 20/40/60Km, CAT5: 100m |
|
Conversion Method: |
Media Conversion |
|
Time Delay: |
<10μs |
|
BER: |
<1/1000000000 |
|
LED Indicator Lamps: |
1000M, 100M, FX LINK/ACT, TP LINK/ACT,FDX,POWER |
|
Power Supply: |
DC5V 1A (external power), AC220 0.5A /DC-48( internal power ) |
|
Power Dissipation |
3W |
|
Operating Temperature: |
0 ~ 50 ℃ |
|
Humidity: |
5%~90% |
|
Storage Temperature: |
-40~ 70 ℃ |
|
Dimension: |
External:94mmx70mmx26mm; Internal: 140mmx110mmx30mm |
Why Choose TAKFLY
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to product innovation
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- 30+ sets of Testing Machines including OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, crush resistance testers, power meter testers, and light checkers
- OEM branding services available
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material incoming inspection with spot checking before production
- Full inspection after completion of every individual process
- Comprehensive half-done production checks
- Thorough finished product inspection before packing
- Final spot checking before shipping
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging Options: Plastic Bag, Carton, and Pallet available per customer request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly. Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise upon receipt, please provide photos for our reference. Our QC department will investigate and provide solutions, and we will implement improvements for future production.
Q6: What is your terms of packing?
A6: Standard packaging includes blister boxes and cartons. Customized packaging is available per customer specifications.
Q7: What is your terms of payment?
A7: T/T 30% deposit, with 70% balance due before delivery. We provide product and packaging photos before final payment.
Q8: What is your terms of delivery?
A8: Available delivery terms include EXW, FOB, CFR, CIF, and DDU.
Q9: How about your delivery time?
A9: Standard delivery is 5-7 working days after receiving advance payment. Specific timing depends on product items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
