10/100/1000M Media Converter
Product Summary
10/100/1000M Media Converter Product Overview A high-performance media converter supporting conversion between auto-adaptation 10Base-T, 100Base-TX or 100Base-T and 1000Base-SX/LX with full duplex 1000M working pattern. Key Features Advanced HIC solution with low-temperature-rise chip eliminates ...
Product Custom Attributes
Product Name:
10/100/1000M Media Converter
Access Method::
10/100/1000Mbps
Standard::
IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d
Wavelength::
850nm/1310nm/1490nm/1550nm
Distance::
Dual Fiber MM :550m Dual Fiber SM : 10/20/30/50/80Km , Single Fiber SM : 20/40/60/80Km CAT5:100m
Time Delay::
<10μs
BER::
<1/1000000000
LED Indicator Lamps::
1000M ,100M, FX LINK/ACT, TP LINK/ACT,FDX,POWER
Power Supply:
DC5V 1A (external Power), AC100-260 0.5A /DC-48( Internal Power )
Power Dissipation::
3W
Operating Temperature:
0 ~ 50 ℃
Working Rate::
10/100/1000Mbps
Storage Temperature::
-40~ 70 ℃
Dimensions::
External: 94mmx70mmx26mm
Gross Weight ::
External : 0.4kg
Highlight:
gigabit media converter fiber optic
,10/100/1000M Ethernet media converter
,fiber optic media converter with warranty
Basic Properties
Place of Origin:
China, Shenzhen
Brand Name:
DF/OEM/Nuetral
Certification:
CE/ROHS/REACH/ISO9001/ISO14001
Model Number:
TK-PC-48F-SC-OS2-50M
Trading Properties
Minimum Order Quantity:
negotiable
Price:
negotiable denpend on QTY
Packaging Details:
Blister box+Carton
Delivery Time:
5-9 working days depends on QTY
Payment Terms:
Western Union, T/T, MoneyGram/Paypal
Supply Ability:
2000 nos/week
Product Description
10/100/1000M Media Converter
Product Overview
A high-performance media converter supporting conversion between auto-adaptation 10Base-T, 100Base-TX or 100Base-T and 1000Base-SX/LX with full duplex 1000M working pattern.
Key Features
- Advanced HIC solution with low-temperature-rise chip eliminates need for cooling system
- Implements flow control to decrease broadcast storm
- Premium optical-electronic-integration module ensures reliable data transmission and long service life
- Supports broadcast filtering, address auto-learning and auto-updating
- Store-and-forward operating mechanism with 9kbyte super data packet transmission
- Full-duplex flow control or half-duplex back pressure working patterns with Auto-negotiation
- Comprehensive indicator lamps for link-loss, electrical and optical link diagnostics
- MTBF exceeding 50,000 hours, compliant with telecom operating standards
- Flexible optical port options: dual fiber (MM), dual fiber (SM), single fiber (SM)
Technical Specifications
| Access Method | 10/100/1000Mbps |
|---|---|
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.1q, IEEE802.1p, IEEE802.1d |
| Wavelength | 850nm/1310nm/1490nm/1550nm |
| Distance |
Dual Fiber MM: 550m Dual Fiber SM: 10/20/30/50/80Km Single Fiber SM: 20/40/60/80Km CAT5: 100m |
| Conversion Method | Media Conversion |
| Time Delay | <10μs |
| BER | <1/1000000000 |
| LED Indicators | 1000M, 100M, FX LINK/ACT, TP LINK/ACT, FDX, POWER |
| Power Supply | DC5V 1A (external power), AC100-260 0.5A /DC-48 (internal power) |
| Power Dissipation | 3W |
| Operating Temperature | 0 ~ 50 ℃ |
| Working Rate | 10/100/1000Mbps |
| Storage Humidity | 5%~90% |
| Storage Temperature | -40~ 70 ℃ |
| Working Humidity | 5%~90% non-condensing |
| Dimensions | External: 94mm x 70mm x 26mm |
| Gross Weight | External: 0.4kg |

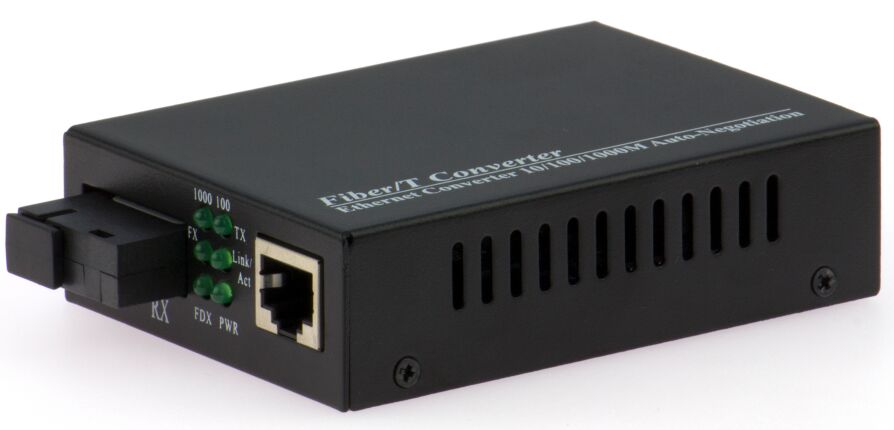

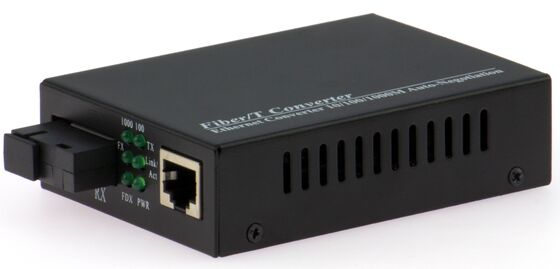

Product Image
Why Choose TAKFLY
- 25+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers
- 16 Germany imported Injection Machines and 16 Production Lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding available
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material incoming inspection before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Finished products inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Yes, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If quality issues arise, please provide photos for our reference. Our QC department will investigate and provide solutions, and we will implement improvements for future production.
Q6: What is your terms of packing?
A6: Standard packaging includes blister box and cartons. Custom packaging is available per customer requirements.
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We provide product and packaging photos before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific timing depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can produce based on your samples or technical drawings.
