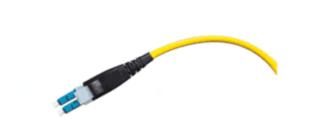

LC Smart Optical Fiber Patchcord LSZH/PVC SM/MM UPC and APC
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-48F-SC-OS2-50M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product NEC Pigtailame: | LC Smart Optical Fiber Patchcord | End Face Type: | UPC And APC |
|---|---|---|---|
| Fiber Type: | SM (G652、G655、G657); MM (OM1-OM5) | Cable Diameter: | 0.9、2.0、3.0 Or Customized (Simplex/duplex) |
| Intertion Loss: | ≤0.3dB | Return Loss: | UPC SM≥50dB, APC SM≥ 60 DB, PC MM ≥ 35 DB |
| Repeatability: | ≤ 0.1 | Durability: | ≤ 0.2dB |
| Tensile Strength: | 0.9mm >5N, 2.0mm/3.0mm >70N | Operation Temperature: | -20℃~70℃ |
| Storage Temperature: | -40℃~80℃ | Outer Sheath Material: | PVC、LSZH、TPU |
| Length: | 10M , 20M Or Customized | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | LSZH fiber optic patchcord,SM MM fiber patch cable,UPC APC optical patchcord |
||
Product Description
LC Smart Optical Fiber Patchcord LSZH/PVC SM/MM UPC and APC
LC smart optical fiber patch cord is developed with duplex optical fiber and additional two copper pins for transmission and management signal.
Fiber Optic Pigtail Applications
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
Fiber Optic Pigtail Features
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Length 2m, 3m, 5m are optional
- Standard: Telcordia GR-326-CORE
- Various flame retardant outer sheath option
- International standard color/ color conforms to international standard
- The connectors of LC smart optical fiber patchcord are built in LED indicator light, which are used for searching and operation.
Product Parameter
- Cable Appearance: fiber+ copper cable+fiber, side by side structure.
- Touch pin: Diameter 1.5mm, made of 50 micro - inch gold plated phosphor bronze with spring
- Copper Conductor: 26AWG
- Conductors: 2 fibers+2 core wire
- Jacket Material: PVC/PE
- Insulation Materials: CM /CMR /CMP/LSOH
Fiber Optic Pigtail Specifications
| End face type | UPC and APC |
|---|---|
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 5.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | 0.9mm cable>5N 2.0/3.0mm cable>70N |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~80℃ |
| Outer Sheath Material | PVC,LSZH,TPU |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
Product Picture
Why Choose TAKFLY
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
