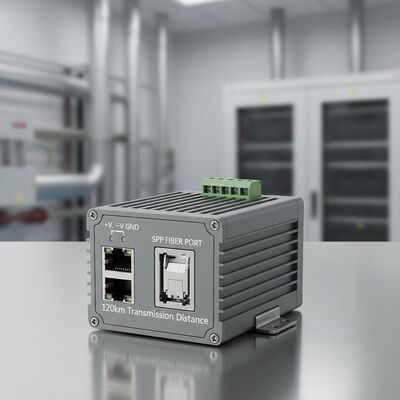

10/100/1000M Mini Industrial Media Converter with SFP Fiber Port and 120km Transmission Distance
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/TAKFLY |
| Certification: | CE/ROHS/FCC/REACH/ISO |
| Model Number: | DF-1000M-MC-ID-MINI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 26.5~USD30.5/PC |
| Packaging Details: | 1pc in a inner box, several box in a carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 30000PCS per month |
|
Detail Information |
|||
| Rate: | 10/100/1000M | Fiber Port: | SFP, LC |
|---|---|---|---|
| Connector: | One UTP RJ-45 Connector, One SFP Connector, One DC-inlet Connector | Operating Voltage: | DC 9~56V |
| Rated Current: | 0.5/0.25A | Operating Temperature: | -30℃~+75℃ |
| Storage Temperature: | -40°C To 85°C | Dimension: | 118mm×39mm×26mm |
| Mode: | Single Mode | Network Ports: | 1 Channel |
| Optical Connector: | LC | Wave Length: | 1310nm / 1550nm |
| Cable Utp: | Cat. 5 UTP | Transmission Distance: | 500m Up 120km |
| Transmission: | 1000Base-T And 1000Base-SX/LX | Humidity: | 5% To 90% Non-condensing |
| Port Type: | 1× RJ45 To 1× SFP | ||
| Highlight: | 1000M Fiber Ethernet Media Converter,Mini Type Industial Media Converter,10 100 1000M Industial Media Converter |
||
Product Description

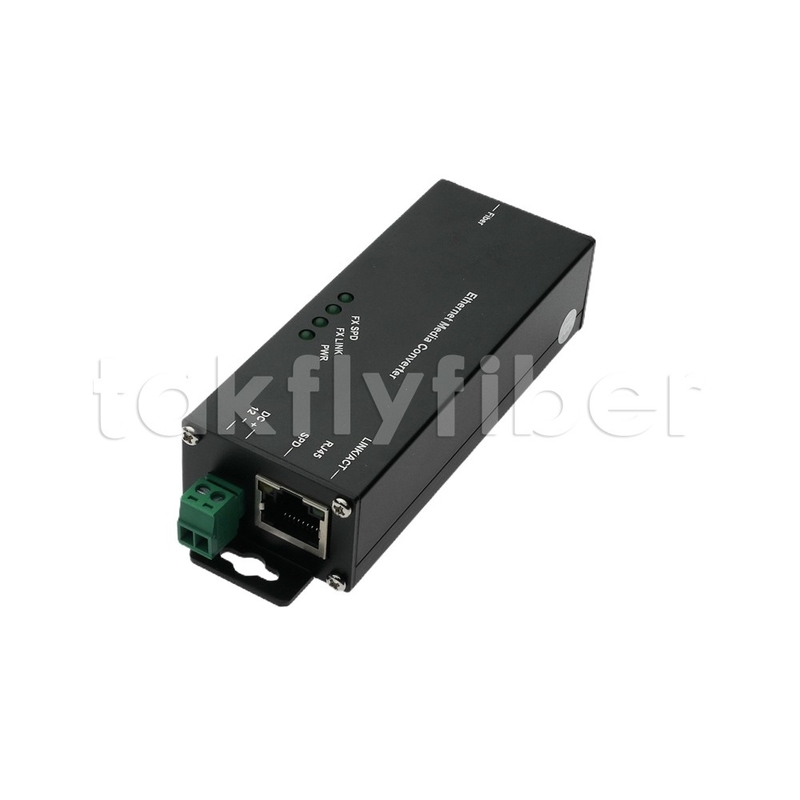

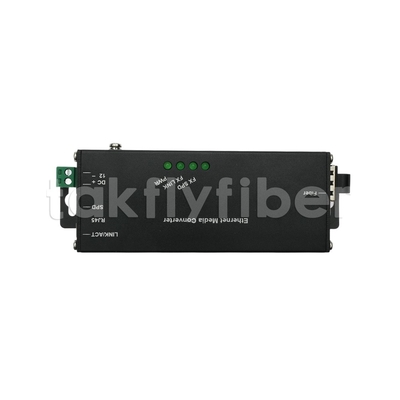

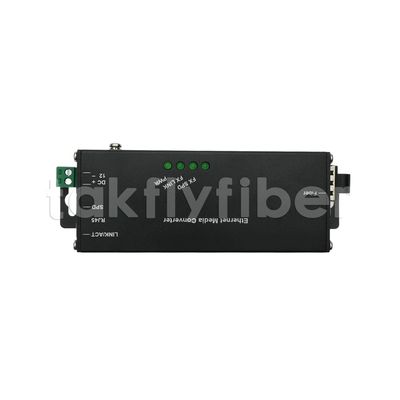

10/100/1000M Mini Type Industrial Media Converter
This Gigabit Ethernet stand-alone Mini Industrial media converter provides cost-effective, entry-level media conversion between 1x10/100/1000Base-TX ports and 100/1000Base-FX ports. With its fixed configuration, deployments are plug-and-play, and its compact size makes it ideal for space-limited locations.
1x10/100/1000Base Fiber Media Converter with SFP fiber options including single mode dual fiber, multimode dual fiber, and single mode single fiber configurations.
Manufacturer Background: Takfly is a leading manufacturer of Fiber Optic passive and active products since 2000, with ISO9001 and ISO14001 certification. All products comply with CE, ROHS, REACH requirements, and OEM services are available.
Key Features
- Unit and Port LEDs for quick status monitoring
- Auto-Negotiation and Auto-MDI/MDIX functionality
- Fixed Full-Duplex on fiber connections
- Automatic Link Restoration
- Connect to legacy network equipment
- Eliminate Collision Domains
- 10/100/1000Base-TX UTP to 100/1000Base-FX fiber media conversion
- Supports IEEE802.3U, IEEE802.3z, IEEE802.3ab standards
- SFP Port compatibility
- DIP switch for configuration settings
- Compact package design
- IEEE802.3x flow control support
- LFP and ALS functionality
- Automatic reset after fiber link disconnection
Technical Specifications
| Transmission Distance | Twisted-pair: 100M standard CAT5/CAT5e cable. SFP distance depends on plug-in Fiber Transceiver |
| Store-and-Forward Mode | 1518 Bytes |
| Pass Through Mode | 10K Bytes |
| LFP Mode | Supported |
| DIP Switches | LFP function (optional), ALS function (optional), FX Reset (optional), FX speed (optional), 100Base-FX interface |
| Connector | One UTP RJ-45 connector, one SFP connector, one DC-inlet connector |
| Operation Mode | Full duplex or half duplex mode |
| Power Requirement | Operating Voltage: DC 9~56V, Rated Current: 0.5/0.25A |
| Environmental Requirements | Operating Temperature: -30℃~+75℃, Storage Temperature: -40℃~85℃, Relative Humidity: 5%~95% (non-condensation), MTBF: 100,000 hours, Enclosure: Metal |
| Mechanical Structure | Dimensions: 118mm×39mm×26mm |
| Warranty | 3 Years |
| Emissions | FCC Class A, CE Class A |
Delivery Information
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to request
Shipping Options
DHL, UPS, FEDEX, TNT, EMS (3-5 working days). Continuous tracking and status reporting provided. By Sea or By Air shipping available using your preferred forwarder or our partnered service.
Payment & Pricing
Payment Terms: T/T, Paypal, Western Union and L/C available.
Pricing: Negotiable for large quantity orders.
Pricing: Negotiable for large quantity orders.
