10 100 1000M Mini Type Industial Media Converter with SFP Port for High Temperature Application
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/TAKFLY |
| Certification: | CE/ROHS/FCC/REACH/ISO |
| Model Number: | DF-1000M-MC-ID-MINI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD 26.5~USD30.5/PC |
| Packaging Details: | 1pc in a inner box, several box in a carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 30000PCS per month |
|
Detail Information |
|||
| Rate: | 10/100/1000M | Fiber Port: | SFP, LC |
|---|---|---|---|
| Connector: | One UTP RJ-45 Connector, One SFP Connector, One DC-inlet Connector | Operating Voltage: | DC 9~56V |
| Rated Current: | 0.5/0.25A | Operating Temperature: | -30℃~+75℃ |
| Storage Temperature: | -40℃ 85℃ | Dimension: | 118mm×39mm×26mm |
| Highlight: | SFP Port Industial Media Converter,1000M Mini Type Industial Media Converter,High Temperature Application Industial Media Converter |
||
Product Description

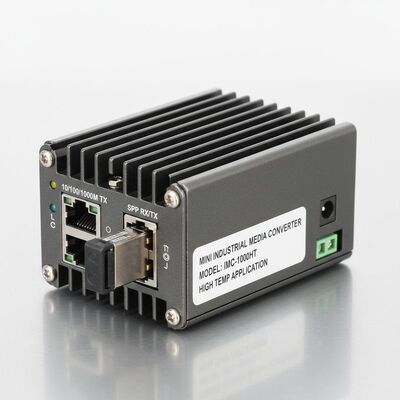

10 100 1000M Mini Type Industial Media Converter with SFP Port for High Temperature Application

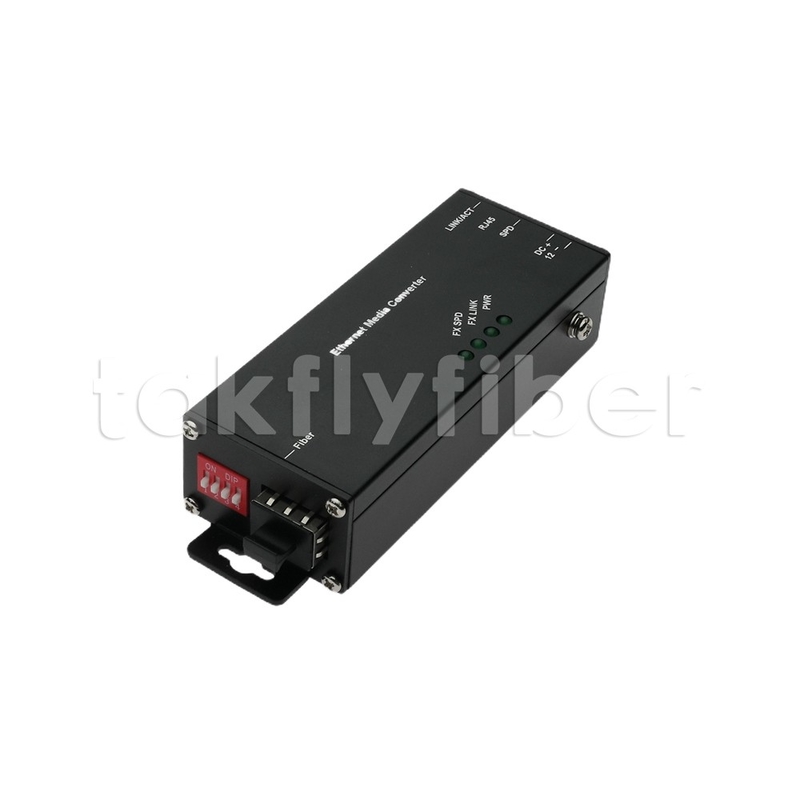

This is a Gigabit Ethernet stand-alone Mini Industrial media converter that provides cost effective, entry-level media conversion between 1x10/ 100/ 1000Base-TX ports and 100/ 1000Base-FX ports . With its fixed configuration , deployments are just plug-and-play, and with it is small size , it is ideal for locations where space is limited.
1x10/ 100/ 1000Base Fiber Media Converter, SFP Fiber Media Converter, Options in single mode dual fiber, multimode dual fiber and single mode single fiber.
Takfly is a leading manufacturer of Fiber Optic passive and active products since 2000, with ISO9001 and ISO14001 certified.
All of our products are complied with CE, ROHS, REACH requirement, OEM is available.
Features

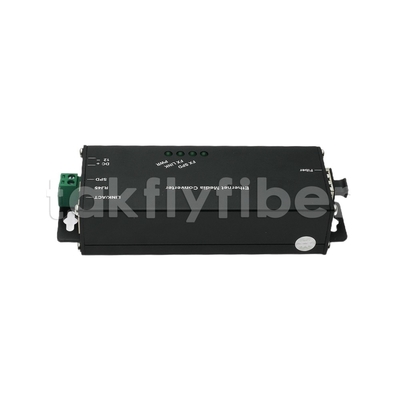

- Unit and Port LEDs allow for quick status information
- Auto-Negotiation
- Fixed Full-Duplex on fiber
- Auto-MDI/ MDIX
- Automatic Link Restoration
- Connect to legacy network equipment
- Eliminate Collision Domains
- 10/ 100/ 1000Base-TX UTP to 100/ 1000Base-FX fiber media converter
- Supports IEEE802 .3U IEEE802 .3z 1000Base-TX/FX protocols , IEEE802 .3ab standards
- SFP Port

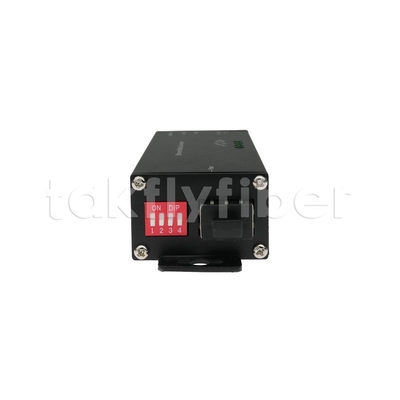

- DIP switch to set different configurations
- Compact package size
- Supports IEEE802 .3x flow control; 100Base-FX interface; auto MDI-MDIX function; LFP function; ALS function;The media converter is reset again after the fiber link is disconnected
Specification
|
Transmission Distance |
Twisted-pa 100M standard CAT5/CAT5e cable SFP, Distance depend on plug-in Fiber Tranceiver |
| Store-and-Forward Mode | 1518Bytes |
| Pass Through Mode | 10KBytes |
| LFP Mode | Support |
|
DIP Switches |
LFP function (optional) ALS function (optional) FX Reset (optional) FX speed (optional)100Base-FX interface |

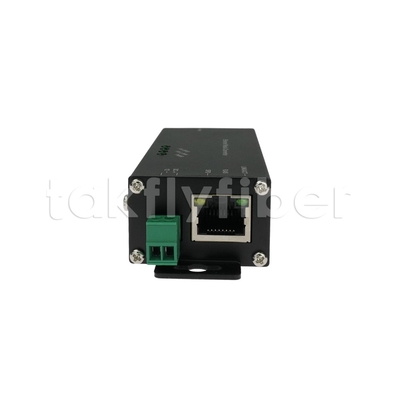

| Connector | One UTP RJ-45 connector, one SFP connector, one DC-inlet connector |
| Operation Mode | Full duplex or half duplex mode |
|
Power Requirement |
Operating Voltage DC 9~56V Rated Current: 0.5/0.25A |
|
Environmental Requirement |
Operating Temperature: -30℃~+75℃ Storage Temperature: -40℃ 85℃ Relative Humidity: 5%~95% (non-condensation) MTBF: 100,000 h Enclosure: Metal |
| Mechanical Structure | Dimensions: 118mm×39mm×26mm |
| Warranty | 3 Year |
| Emissions | FCC Class A, CE Class A |
