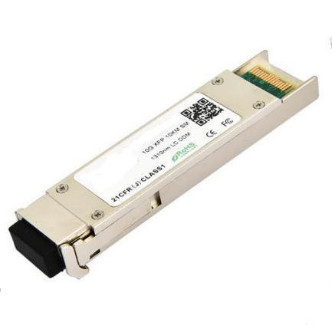

• 10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package
10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package

10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package

Product Details:

Place of Origin: Guangdong, SHENZHEN
Brand Name: TAKFLY
Certification: CE,ROHS,REACH,ISO9001,ISO14001
Model Number: XFP-TK1392-LC10

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pices
Price: US$0.01 ~ US$1200/PC
Delivery Time: 3-7working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Ratio: 50/50 Center Wavelength: 1450nm
Insertion Loss: ≤0.3dB Package Weight: 10g
Package Type: Bare Fiber, 900um Loose Tube, 2mm Cable Wavelegth: 1310nm
Axis Alignment: Slow Axis Or Fast Axis Wavelength Range: 1310nm, 1550nm
Application: Optical Communication Systems Splitter Ratio: 98/2
Storage Temperature: -40~+85℃ Port Number: 1x2
Fiber Length: 1m Fiber: PM Corning 980nm Fiber
Power Handling Capacity: High Power
Highlight:

10KM XFP Optical Transceiver

,

1310nm XFP Optical Transceiver

,

10Gbps XFP Optical Transceiver

Product Description

Description
  • TAKFLY XFP-TK1392-LC20 Small Form Factor 10 G (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification1.They comply with 10-Gigabit Ethernet 10GBASE-LR/LW per IEEE 802.3ae and 10G Fiber Channel. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and lead-free per Directive 2002/95/EC3.

Features

  • Hot-pluggable XFP footprint
  • Supports 9.95Gb/s to 11.3Gb/s bit rates
  • XFI Loopback Mode
  • RoHS-6 Compliant (lead-free)
  • Power dissipation <1.5W
  • Case temperature range: -5°C to 70°C
  • Maximum link length of 20km
  • Uncooled 1310nm DFB laser
  • Full Duplex LC connector
  • No Reference Clock required
  • Built-in digital diagnostic functions
  • Standard bail release mechanism

Applications

  1. 10GBASE-LR/LW 10G Ethernet
  2. 10G Fiber Channel
  3. SONET OC-192 SR-1 SDH STM I-64.

Absolute Maximum Ratings

Parameter   Symbol Min Typ Max Unit
Maximum Supply Voltage   Vcc3 -0.5   4.0 V
Storage Temperature   TS -40   85 °C
Case Operating Temperature   Tcase -5   70 °C



Electrical Characteristics(TOP = -5 to 70 °C, VCC3 = 3.13 to 3.45 Volts)

Parameter Symbol Min Typ Max Unit Ref.
Supply Voltage #2 Vcc3 3.13   3.45 V
Supply Current – Vcc3 supply Icc3     450 mA

Module total power

P

    1.5 W 1
Transmitter
Input differential impedance Rin   100   Ω 2
Single ended data input swing Vin,pp 120   820 mV
Transmit Disable Voltage VD 2.0   Vcc V 3
Transmit Enable Voltage VEN

GND



GND + 0.8

V
Transmit Disable Assert Time       10 us
Receiver
Single ended data output swing Vout,pp 340 650 850 mV 4
Data output rise time tr     38 ps 5
Data output fall time tf     38 ps 5
LOS Fault VLOS fault Vcc–0.5   VccHOST V 6
LOS Normal VLOS norm

GND



GND+0.5

V 6
Power Supply Rejection PSR         7

Notes:

  1. Maximum total power value is specified across the full temperature and voltage range.
  2. After internal AC coupling.
  3. Or open circuit.
  4. Into 100 ohms differential termination.
  5. These are unfiltered 20-80% values
  6. Loss of Signal is open collector to be pulled up with a 4.7k – 10kohm resistor to 3.15 – 3.6V. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
  7. Per Section 2.7.1. in the XFP MSA Specification1.

Optical Characteristics (TOP = -5 to 70 °C, VCC3 = 3.13 to 3.45 Volts)

Transmitter
Parameter Symbol Min. Typ Max. Unit Ref.

Average Optical Power

P

-2



3

dBm



Optical Wavelength

λ

1290 1310 1330

nm



Sidemode Suppression ratio

SSRmin

30

dB



Optical Extinction Ratio

ER

3.2

dB



Transmitter and Dispersion Penalty

TDP

    2

dB



Average Launch power of transmitter

P

    -30

dBm



Tx Jitter

Tx



Per 802.3ae requirements



Relative Intensity Noise

RIN

    -130

dB/Hz


Receiver
Parameter Symbol Min. Typ Max. Unit Note

Receiver Sensitivity

RSENS

    -15 dBm 1

Input Saturation Power (Overload)

Psat

0.5     dBm

Wavelength Range

λC

1270   1610 nm

Receiver Reflectance

Rrx

    -15 dB

LOS De-Assert

LOS

    -22 dBm
LOS Assert

LOS

-30     dBm

LOS Hysteresis

  0.5   4 dB

Notes:

Measured with worst ER; BER<10-12@ 10.3Gbps, 231 – 1 PRBS.


Pin Assignment

10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package 0


10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package 1

10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package 2



General Specifications

10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package 3

Digital Diagnostic Functions

As defined by the XFP MSA1, The XFP transceivers provide digital diagnostic functions via a 2-wire serial interface, which allows real-time access to the following operating parameters:

  1. Transceiver temperature
  2. Laser bias current
  3. Transmitted optical power
  4. Received optical power
  5. Transceiver supply voltage

It also provides a sophisticated system of alarm and warning flags, which may be used to alert end-users when particular operating parameters are outside of a factory-set normal range.



The operating and diagnostics information is monitored and reported by a Digital Diagnostics Transceiver Controller (DDTC) inside the transceiver, which is accessed through the 2-wire serial interface. When the serial protocol is activated, the serial clock signal (SCL pin) is generated by the host. The positive edge clocks data into the XFP transceiver into those segments of its memory map that are not write-protected. The negative edge clocks data from the XFP transceiver. The serial data signal (SDA pin) is bi-directional for serial data transfer. The host uses SDA in conjunction with SCL to mark the start and end of serial protocol activation. The memories are organized as a series of 8-bit data words that can be addressed individually or sequentially. The 2-wire serial interface provides sequential or random access to the 8 bit parameters, addressed from 000h to the maximum address of the memory.



Mechanical Specifications

TAKFLY XFP transceivers are compliant with the dimensions defined by the XFP Multi-Sourcing Agreement (MSA).

10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package 4

XFP Transceiver (dimensions are in mm)



PCB Layout and Bezel Recommendations

10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package 5



XFP Host Board Mechanical Layout (dimensions are in mm)

10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package 6



XFP Detail Host Board Mechanical Layout (dimensions are in mm)

10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package 7



Regulatory Compliance

10Gbps 1310nm XFP Optical Transceiver with 10KM Transmission Distance and Lightweight 10g Package 8
