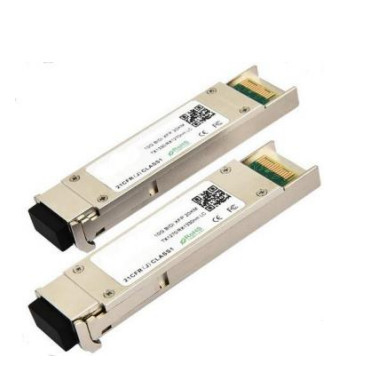

• 10Gbps XFP Bi-Directional Transceiver,  60KM Reach Tx1270/1330nm / Rx1330/1270 nm
10Gbps XFP Bi-Directional Transceiver,  60KM Reach Tx1270/1330nm / Rx1330/1270 nm

10Gbps XFP Bi-Directional Transceiver, 60KM Reach Tx1270/1330nm / Rx1330/1270 nm

Product Details:

Place of Origin: Guangdong, SHENZHEN
Brand Name: TAKFLY
Certification: CE,ROHS,REACH,ISO9001,ISO14001
Model Number: TK-Bxx92-3LCD60

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pices
Price: US$0.01 ~ US$1200/PC
Delivery Time: 3-7working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Ratio: 50/50 Center Wavelength: 1450nm
Insertion Loss: ≤0.3dB Package Weight: 10g
Package Type: Bare Fiber, 900um Loose Tube, 2mm Cable Wavelegth: 1310nm
Axis Alignment: Slow Axis Or Fast Axis Wavelength Range: 1310nm, 1550nm
Application: Optical Communication Systems Splitter Ratio: 98/2
Storage Temperature: -40~+85℃ Port Number: 1x2
Fiber Length: 1m Fiber: PM Corning 980nm Fiber
Power Handling Capacity: High Power
Highlight:

1330nm XFP Bi-Directional Transceiver

,

60KM XFP Bi-Directional Transceiver

,

10Gbps XFP Bi-Directional Transceiver

Product Description

Description
  • TAKFLY XFP-TKBxx92-3LCD60 is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 60km on SMF.
  • The transceiver module comprises a transmitter with a 1270/ 1330nm DFB laser transmitter and the receiver section consists of a APD photodiode integrated with a TIA Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10GbE systems.



Features

  • Supports 9.95Gb/s to 10.5Gb/s bit rates
  • Hot-pluggable XFP footprint
  • Maximum link length of 60KM with SMF

  • 1270/ 1330nm DFB laser Transmitter and 1330/ 1270nm Receiver

  • XFP MSA package with LC connector

  • No reference clock required

  • Loop Back Support.

  • +3.3V ,+1.8V power supply

  • Power dissipation <2W

  • Compatible with RoHS

  • Built-in digital diagnostic functions

  • Temperature range 0°C to 70°C



Applications

  1. 10GBASE-ER 10G Ethernet at 10.3125Gbps
  2. 10GBASE-EW 10G Ethernet at 9.953Gbps
  3. 1200-SM-LL-L 1-0G Fiber Channel at 10.51875Gbps

Absolute Maximum Ratings

Parameter Symbol Min. Typ. Max. Unit Note
Storage Temperature Ts -40 - 85 ºC
Storage Ambient Humidity HA 5 - 95 %
Operating Relative Humidity RH - - 85 %
Power Supply Voltage VCC -0.3 - 4 V
Signal Input Voltage VCC Vcc-0.3 - Vcc+0.3 V



Recommended Operating Conditions

Parameter Symbol Min. Typ. Max. Unit Note
Ambient Operating Temperature TA 0 - 70 ºC Without air flow
Power Supply Voltage VCC 3.14 3.3 3.47 V
Power Supply Current ICC - - 450 mA
Data Rate BR   10.3125   Gbps
Transmission Distance TD 2 - 60 km Note (1)
Coupled fiber Single mode fiber ITU-T G.652
Notes:
1) Measured with SMF


Specification of Transmitter

Parameter Symbol Min. Typ. Max. Unit Note
Average Launched Power PO 2 - 6 dBm
Average Launched Power(Laser Off) POUT-OF F



-



-

-30 dBm Note (1)
Optical Modulation Amplitude OMA -3 - - dBm Note (1)
Center Wavelength Range λC   1270/1330   nm
Side mode suppression ratio SMSR 30 - - dB
Spectrum Bandwidth(-20dB) σ - - 1 nm
Extinction Ratio ER 3.5 6 - dB Note (2)
Output Eye Mask Compliant with FC_PI_4 REV 7.0   Note (2)
Notes:

1) The optical power is launched into SMF

2) Measured with RPBS 2^31-1 test pattern @10.3125Gbs



Specification of Receiver

Parameter Symbol Min. Typ. Max. Unit Note
Input Optical Wavelength λIN   1330/1270   nm
Receiver Sensitivity in average PIN - - -20 dBm Note (1)
Input Saturation Power (Overload) PSAT 0.5 - - dBm Note (1)
LOS Assert PA -30 - - dBm
LOS De-Assert PD - - -25 dBm
LOS -Hysteresis PHys 0.5 - 4 dB
Note:

1) Measured with RPBS 2^31-1 test pattern @10.3125Gbs BER=<10^-12 ER=6DB



Electrical Interface Characteristics

Parameter Symbol Min. Typ. Max. Unit Note
Total power supply current Icc - - 350 mA
Transmitter
Differential Data Input Voltage VDT 120 - 820 mVp-p
Differential line input Impedance RIN 85 100 115 Ohm
Transmitter Fault Output-High VFaultH 2.4 - Vcc V
Transmitter Fault Output-Low VFaultL -0.3 - 0.8 V
Transmitter Disable Voltage- High VDisH 2 - Vcc+0.3 V
Transmitter Disable Voltage- low VDisL -0.3 - 0.8 V
Receiver
Differential Data Output Voltage VDR 300 - 850 mVp-p
Differential line Output Impedance ROUT 80 100 120 Ohm
Receiver LOS Pull up Resistor RLOS 4.7 - 10 KOhm
Data Output Rise/Fall time tr/tf 20 - - ps
LOS Output Voltage-High VLOSH 2 - Vcc V
LOS Output Voltage-Low VLOSL -0.3 - 0.4 V



Pin Description

10Gbps XFP Bi-Directional Transceiver,  60KM Reach Tx1270/1330nm / Rx1330/1270 nm 0

Pin

Logic

Symbol

Name/Description

Note

1   GND Module Ground 1
2   VEE5 Optional –5.2 Power Supply – Not required
3 LVTTL-I Mod-Desel Module De-select; When held low allows the module to respond to 2-wire serial interface commands
4 LVTTL-O Interrupt Interrupt (bar); Indicates presence of an important condition which can be read over the serial 2-wire interface 2
5 LVTTL-I TX_DIS Transmitter Disable; Transmitter laser source turned off
6   VCC5 +5 Power Supply
7   GND Module Ground 1
8   VCC3 +3.3V Power Supply
9   VCC3 +3.3V Power Supply
10 LVTTL-I SCL Serial 2-wire interface clock 2
11 LVTTLI/O SDA Serial 2-wire interface data line 2
12 LVTTL-O Mod_Abs Module Absent; Indicates module is not present. Grounded in the module. 2
13 LVTTL-O Mod_NR Module Not Ready; XGIGA defines it as a logical OR between RX_LOS and Loss of Lock in TX/RX. 2
14 LVTTL-O RX_LOS Receiver Loss of Signal indicator 2
15   GND Module Ground 1
16   GND Module Ground 1
17 CML-O RD- Receiver inverted data output
18 CML-O RD+ Receiver non-inverted data output
19   GND Module Ground 1
20   VCC2 +1.8V Power Supply – Not required





21





LVTTL-I





P_Down/RST

Power Down; When high, places the module in the low power stand-by mode and on the falling edge of P_Down initiates a module reset
      Reset; The falling edge initiates a complete reset of the module including the 2-wire serial interface, equivalent to a power cycle.
22   VCC2 +1.8V Power Supply – Not required
23   GND Module Ground 1
24 PECL-I RefCLK+ Reference Clock non-inverted input, AC coupled on the host board – Not required 3
25 PECL-I RefCLK- Reference Clock inverted input, AC coupled on the host board – Not required 3
26   GND Module Ground 1
27   GND Module Ground 1
28 CML-I TD- Transmitter inverted data input
29 CML-I TD+ Transmitter non-inverted data input
30   GND Module Ground 1

Notes:

1) Module circuit ground is isolated from module chassis ground within the module.

2) Open collector; should be pulled up with 4.7k – 10kohms on host board to a voltage between 3. 15V and 3.6V.

3) A Reference Clock input is not required by the XFP-10GER. If present, it will be ignored.



Recommended Block Circuit

10Gbps XFP Bi-Directional Transceiver,  60KM Reach Tx1270/1330nm / Rx1330/1270 nm 1

Outline Dimensions

10Gbps XFP Bi-Directional Transceiver,  60KM Reach Tx1270/1330nm / Rx1330/1270 nm 2



Regulatory Compliance

Feature Reference Performance
Electrostatic discharge (ESD) IEC/EN 61000-4-2 Compatible with standards
Electromagnetic Interference (EMI)

FCC Part 15 Class B EN 55022 Class B

(CISPR 22A)

Compatible with standards
Laser Eye Safety FDA 21CFR 1040.10, 1040.11 IEC/EN 60825-1, 2 Class 1 laser product
Component Recognition IEC/EN 60950, UL Compatible with standards
ROHS 2002/95/EC Compatible with standards
EMC EN61000-3 Compatible with standards
