Polarity Rotating 2.0mm LC PC Uniboot Duplex Fiber Optic Patch Cord with G657A1 Fiber for Network
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-3.0-1M-LCP-LCP-SM-OS2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | US$0.01~4.69/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 10000PCS/Day |
|
Detail Information |
|||
| Product Name: | Polarity Rotating 2.0mm LC PC Uniboot Duplex Fiber Optic Patch | Intertion Loss: | ≤0.3dB |
|---|---|---|---|
| Return Loss: | UPC SM ≥ 60dB | Fiber Type: | OS2, G652D , G657A1 , G657A2 , G657B3 |
| Diameter: | 3.0mm | Connector Type: | UPC |
| Jacket Material: | LSZH/PVC/PU | Color: | Yellow, Customized |
| Wavelength: | 1310nm,1550nm | Length: | 1M Or Customized |
| Operation Temperature: | -40℃~80℃ | Fiber Diameter: | 9/125 |
| Grade: | Telecom Grade | Certificate: | CE/ROHS/REACH |
| Production Capcity: | 10000PCS/Day | ||
| Highlight: | SM G657A1 Duplex Patch Cord,Uniboot Duplex Patch Cord,LC PC Breakout Patch Cable |
||
Product Description
Uniboot Duplex Patch Cord SM G657A1 Polarity Rotating 2.0mm LC PC
Polarity Rotating 2.0mm LC PC Uniboot Duplex Fiber Optic Patch Cord
High-performance single-mode G657A1 fiber optic patch cord with polarity rotation capability for reliable network connectivity.
Product Overview
Takfly's fiber optic patch cords undergo comprehensive testing including end face inspection, insertion loss, and return loss measurements. With a monthly production capacity of 1 million units, we offer competitive pricing and fast delivery.
Our products are trusted in major worldwide projects and have established long-term partnerships with industry leaders including Lapp, Amper, Telefonica, Orange, Corning, Amphenol, SENKO, and Ericsson.
Technical Specifications
| Parameter | Specification |
|---|---|
| End Face Type | PC, UPC and APC |
| Fiber Type | SM (G652/G655/G657); MM (OM1-OM5) |
| Cable Diameter | 0.9 / 2.0 / 3.0 mm or customized (Simplex/Duplex) |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | UPC SM ≥ 50dB, APC SM ≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2 dB |
| Interchangeability | ≤ 0.2 dB |
| Tensile Strength | 0.9mm cable > 5N, 2.0/3.0mm cable > 70N |
| Operating Temperature | -20℃ to 70℃ |
| Storage Temperature | -40℃ to 80℃ |
| Outer Sheath Material | PVC/LSZH or Customized |
| Bending Radius (Static/Dynamic) | 10D/20D |
| Length | Customized |
Applications
- CATV Systems
- Telecommunication Networks
- Active Device Termination
- Local Area Networks (LANs)
- Data Processing Networks
- Test Equipment
- Wide Area Networks (WANs)
Key Features
- Low insertion loss and high reflection loss
- Excellent exchange ability
- Superior durability
- High temperature stability
- Compliant with Telcordia GR-326-CORE standard

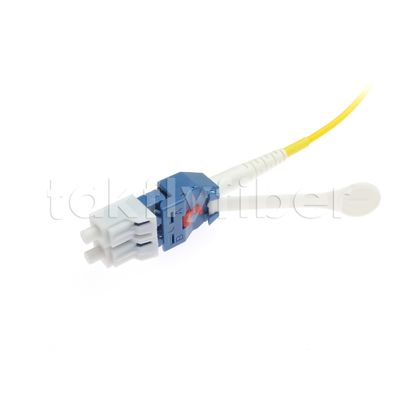

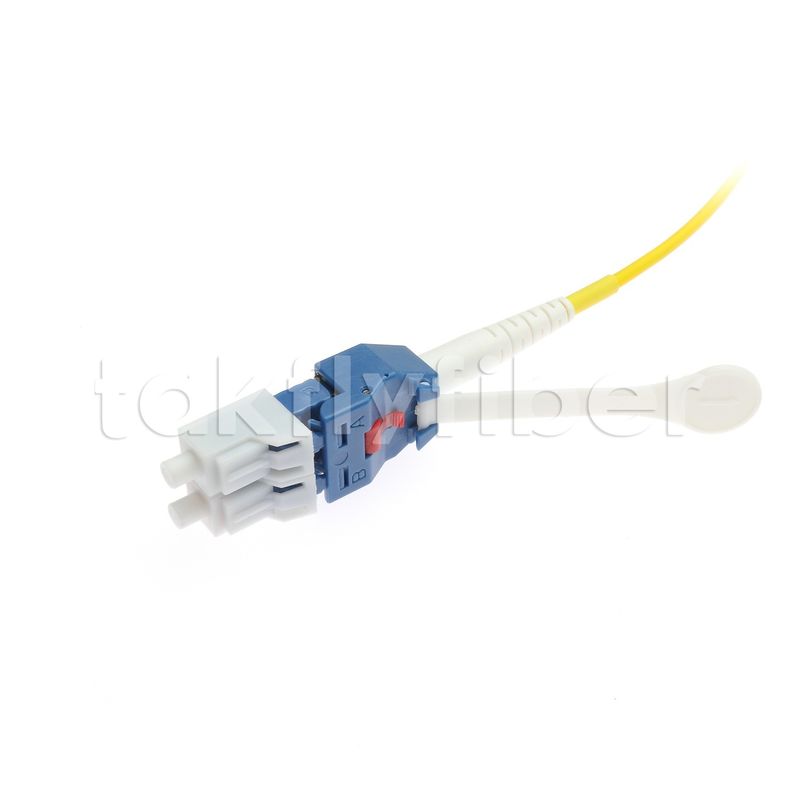

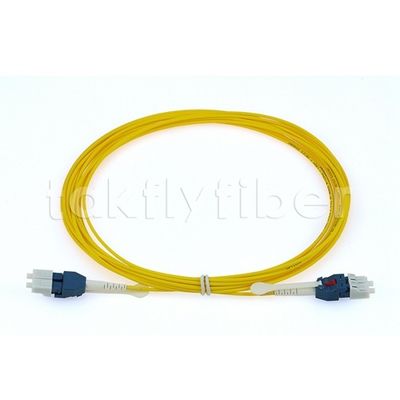

Product Image
Ordering Information
Required Specifications for Custom Orders:
- Connector Type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode Type: Single Mode (UPC and APC) / Multi Mode (PC)
- Cable Diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating Material: PVC / LSZH
- Fiber Count: Simplex / Duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
- Cable Type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch Cord Length: Customized to your requirements
- For MPO/MTP connectors: Specify method (A/B/C type), gender (male/female), and fiber count
With over 10 years of experience in optical fiber products, we have helped more than 127 customers expand their business and increase sales. We provide professional guidance to help you save time and money while enhancing your sales performance.
