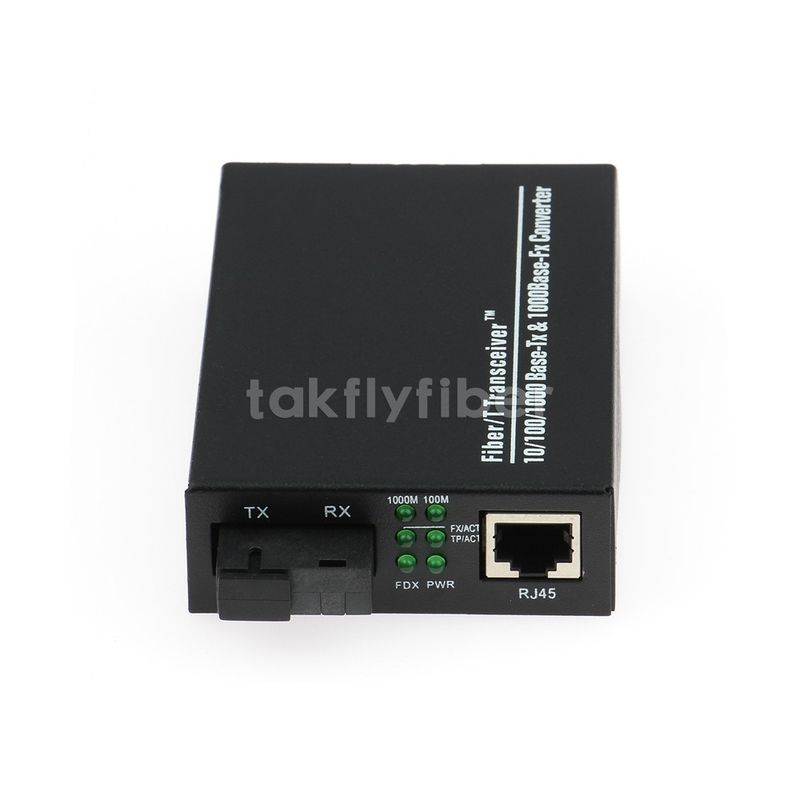

1550nm DC5V 120km Fiber Optic Media Converter Single SC Slot 1000M
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ROHS, FCC, REACH, ISO9001, ISO14001 |
| Model Number: | MC-1000-SC-N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 nos |
|---|---|
| Price: | USD 10 ~ USD 20 |
| Packaging Details: | Spone + Box + Carton |
| Delivery Time: | 3~5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 nos/week |
|
Detail Information |
|||
| Wavelength: | 850nm/1310nm/1550nm | Transmission Distance: | 550m To 120km |
|---|---|---|---|
| Copper Cable: | Cat5, Cat5e, Cat6 | Fiber Connector: | SC Duplex |
| RJ45 Port Working Rate: | 10/100/1000Mbps | Fiber Port Working Rate: | 1000Mbps |
| High Light: | 120km Fiber Optic Media Converter,DC5V Fiber Optic Media Converter,Single SC SFP Media Converter |
||
Product Description
10/100/1000M Ethernet To Fiber Media Converter Gigabit with 1310/1550nm Single SC Fiber Slot and 1 RJ45 Port
1. Description
Media converters are flexible and cost-effective devices for implementing and optimizing fiber links in all types of networks. The most common type of media converter is a device that functions as a transceiver converting the electrical signal used in copper Unshielded Twisted Pair (UTP) network cabling into light waves used in fiber optic cabling.
The Gigabit media converter with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
2. Feature
* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3z, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
* Hot Pluggable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.
* Unique IC solution applied.
* Supports 10/100Mbps full/half duplex, easy upgrades.
* Auto MDI/MDI-X.
* Auto Negotiation.
* Support flow control.
* Concentrated into BT-EF16-D220(16slot for media converter cards) or BT-EF14-D220(14slot for media converter standalone type) 2U rack-mount chassis.
* Stable performance more than 50 thousands hours with fault-free.
* In conformity with safety code of FCC, CE and RoHS.
3. Technical Spec
| Access Method | 10/100/1000Mbps |
| Standard | IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d |
| Wavelength | 850nm/1310nm/1550nm |
| Distance | Dual Fiber MM :550m Dual Fiber SM : 10/20/30/50/80Km Single Fiber SM : 20/40/60/80Km CAT5:100m |
| Conversion Method | Media Conversion |
| Time Delay | <10μs |
| BER | <1/1000000000 |
| LED Indicator Lamps | 1000M,100M, FX LINK/ACT, TP LINK/ACT, FDX, POWER |
| Power Supply | DC5V 2A (external power), AC220 0.5A /DC-48( internal power ) |
| Power Dissipation | 3W |
| Operating Temperature | 0 ~ 50 ℃ |
| Working rate | 10/100/1000Mbps |
| Storage Humidity | 5% ~ 90% |
| Storage Temperature | -40 ~ 70 ℃ |
| Working humidity | 5% ~ 90% non-condescending |
4. Application
* Extend your Ethernet connection up to 0~25km away using fiber optics
* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network
FAQ:
Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
