1000Mbps RJ45 80km Ethernet Fiber Media Converter Single Mode
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ROHS, FCC, REACH, ISO9001, ISO14001 |
| Model Number: | MC-1000-SC-N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 nos |
|---|---|
| Price: | USD 10 ~ USD 20 |

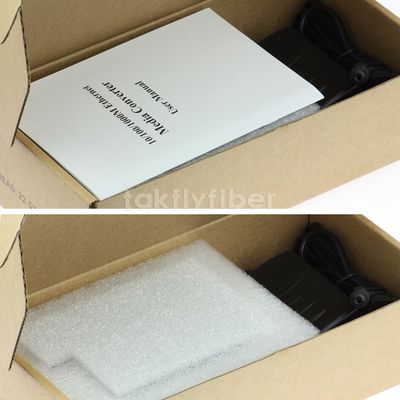

| Packaging Details: | Spone + Box + Carton |
| Delivery Time: | 3~5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 nos/week |
|
Detail Information |
|||
| Wavelength: | 850nm/1310nm/1550nm | Transmission Distance: | 550m To 120km |
|---|---|---|---|
| Copper Cable: | Cat5, Cat5e, Cat6 | Fiber Connector: | SC Duplex |
| RJ45 Port Working Rate: | 10/100/1000Mbps | Fiber Port Working Rate: | 1000Mbps |
| High Light: | 1000Mbps Ethernet Fiber Media Converter,80km Ethernet Fiber Media Converter,RJ45 Single Mode Media Converter |
||
Product Description
10/100/1000Mbps RJ45 20km 40km 60km 80km Simplex Single Mode Fast Ethernet Fiber Media Converter
1. Description
The Gigabit media converter with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
2. Feature
- 10/100/1000Mbps Ethernet
- 10/100/1000 BASE-T/TX electrical port
- 1000 BASE-SX/LX optical port
- Electrical port supports Auto-Negotiation for 100Mbps or 1000Mbps, full duplex or half duplex data.
- Automatic MDI/MDI-X crossover
- Distances : 40KM Single mode
- Voltage transient protection on all power and signal input.output lines provides unconditional protection from power surges and other voltage transient events
- No in-field optical adjustments required
- LED Indicators
3. Technical Spec
| Access Method | 10/100/1000Mbps |
| Standard | IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d |
| Wavelength | 850nm/1310nm/1550nm |
| Distance | Dual Fiber MM :550m Dual Fiber SM : 10/20/30/50/80Km Single Fiber SM : 20/40/60/80Km CAT5:100m |
| Conversion Method | Media Conversion |
| Time Delay | <10μs |
| BER | <1/1000000000 |
| LED Indicator Lamps | 1000M,100M, FX LINK/ACT, TP LINK/ACT, FDX, POWER |
| Power Supply | DC5V 2A (external power), AC220 0.5A /DC-48( internal power ) |
| Power Dissipation | 3W |
| Operating Temperature | 0 ~ 50 ℃ |
| Working rate | 10/100/1000Mbps |
| Storage Humidity | 5% ~ 90% |
| Storage Temperature | -40 ~ 70 ℃ |
| Working humidity | 5% ~ 90% non-condescending |
4. Application
* Extend your Ethernet connection up to 0~25km away using fiber optics
* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network
