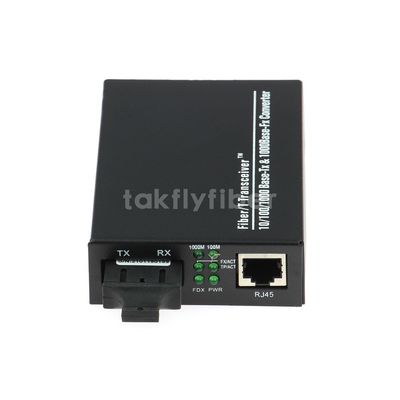

1000Mbps 20km 25km Fiber Optical Media Converter 3W OEM ODM
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ROHS, FCC, REACH, ISO9001, ISO14001 |
| Model Number: | MC-1000-SC-N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 nos |
|---|---|
| Price: | USD 10 ~ USD 20 |
| Packaging Details: | Spone + Box + Carton |
| Delivery Time: | 3~5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 nos/week |
|
Detail Information |
|||
| Wavelength: | 850nm/1310nm/1550nm | Transmission Distance: | 550m To 120km |
|---|---|---|---|
| Copper Cable: | Cat5, Cat5e, Cat6 | Fiber Connector: | SC Duplex |
| RJ45 Port Working Rate: | 10/100/1000Mbps | Fiber Port Working Rate: | 1000Mbps |
| High Light: | 1000Mbps Fiber Optical Media Converter,25km Fiber Optical Media Converter,3W Dual Fiber Media Converter |
||
Product Description
Gigabit 1000Mbps dual fiber 20km 25km fiber optical media converter OEM ODM
1. Description
10/100/1000Mbps adaptive Gigabit Ethernet Fiber Media Converter uses the switching technology to conduct media conversion, which meets the standards of IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab. FC1000A supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX.
2. Feature
1. standard: In conformity to IEEE 802.3 10 Base-T standard.
In conformity to IEEE 802.3u 100 Base-TX/FX standard.
2. Built in 128Kb RAM for data buffer.
3. Back pressure flow control for full duplex
IEEE802.3 X and half duplex.
4. Automatic identification of MDI/MDI-X cross line.
5. Forward 1600 bytes packets for management. Can also reach 9k bytes (optional, Must inform us ahead).
6. Supports link fault pass through function.
7. Supports far end fault function.
8. Fiber connector:Choice from SC,ST,FC or LC connector for multimode and single mode.
9. Built in a watchdog timer to monitor internal switch error.
10. LED display for link/activity,full/half,10M/100M.
11.Transmission distance can reach 2km for multimode and 120KM for single mode.
12.Support 4KV lighting protection(external power supply,Optional).
13.Can be rack mounted in 2U 14 slots chassis(external power supply).
3. Technical Spec
| Access Method | 10/100/1000Mbps |
| Standard | IEEE802.3,IEEE802.3u,IEEE802.3ab ,IEEE802.3z ,IEEE802.1q,IEEE802.1p,IEEE802.1d |
| Wavelength | 850nm/1310nm/1550nm |
| Distance | Dual Fiber MM :550m Dual Fiber SM : 10/20/30/50/80Km Single Fiber SM : 20/40/60/80Km CAT5:100m |
| Conversion Method | Media Conversion |
| Time Delay | <10μs |
| BER | <1/1000000000 |
| LED Indicator Lamps | 1000M,100M, FX LINK/ACT, TP LINK/ACT, FDX, POWER |
| Power Supply | DC5V 2A (external power), AC220 0.5A /DC-48( internal power ) |
| Power Dissipation | 3W |
| Operating Temperature | 0 ~ 50 ℃ |
| Working rate | 10/100/1000Mbps |
| Storage Humidity | 5% ~ 90% |
| Storage Temperature | -40 ~ 70 ℃ |
| Working humidity | 5% ~ 90% non-condescending |
4. Application
* Extend your Ethernet connection up to 0~25km away using fiber optics
* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones
* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)
* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network
FAQ:
Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
