SM OS2 Mode Conditioning Fiber Optic Patchcord MM 62.5/125 OM1 Duplex
Product Details:
| Place of Origin: | China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PT-3.0-2M-LCU-STU-OS2-OM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | US$0.01~9.99/PC |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | Mode Conditioning Fiber Optic Patchcord | Intertion Loss: | ≤0.3dB(850nm, 1300nm) |
|---|---|---|---|
| Return Loss: | ≥50dB (SM UPC), ≥60dB (APC), ≥20dB (MM PC) | Fiber Type: | OM1 To OS2 |
| Diameter: | 3.0mm | Connector Type: | UPC , APC |
| Jacket Material: | LSZH | Color: | Orange, Yellow Or Customized |
| Wavelength: | 1310nm, 1550nm | Length: | 2M Or Customized |
| Operation Temperature: | -20 ~ +65 ℃ | Fiber Diameter: | 9/125 |
| Highlight: | Mode Conditioning Fiber Optic Patchcord,SM OS2 Fiber Optic Patchcord,OM1 Duplex Patch Cord |
||
Product Description
SM OS2 Mode Conditioning Fiber Optic Patchcord MM 62.5/125 OM1 Duplex
Mode-conditioning patch cords are designed for longwave(1310nm) Gigabit Ethernet applications over multimode fiber. They consist an offset connection of a SM fiber to a MM fiber. There are two MM fibers on one end and one MM and one SM fiber on the other. This patch cords is required with -LX or longwave Gigabit Ethernet transceivers that use both SM and MM fibers. When launching into a MM fiber, the transceivers can generate multiple signals that cause Differential Mode Delay (DMD) which can severely limit transmission distances. A mode conditioning patch cord removes these multiple signals, eliminating problems at the receiver end.
Fiber Optic Patchcord Applications
- CATV,LANs,WANs
- Telecommunication networks
- Active device termination
- FTTx
- Building network access
Fiber Optic Patchcord Features
- Low insertion loss,High return loss,Stricter than industry standards
- Good exchange ability and good durability,Stable optical properties
- Permanent displacement seal
- Other connection mode available according customer requirements
- Screen different value delay effection
- Standard connector,Various connector option: LC/SC/FC/ST etc.
- Compliant with IEC61754,GR-326,TIA/EIA 568 standard
Fiber Optic Patchcord Specifications
| Fiber Type | SM(9/125um) |
MM(50/125um, 62.5/125um) |
|
| Polish | UPC | APC | UPC |
|
Insertion Loss |
Light source direction |
Testing Wavelength |
Data |
| A→B |
850nm, 1300nm |
≤0.20dB | |
| B→A |
850nm, 1300nm |
≤0.20dB | |
| C→D |
850nm, 1300nm |
≤15.0dB(50/125) ≤18.0dB(62.5/125) |
|
| C→D |
1310nm, 1550nm |
≤2.1dB(50/125) ≤2.6dB(62.5/125) |
|
| D→C |
850nm, 1300nm |
≤0.20dB | |
| Return Loss | SM/UPC≥50dB,APC≥60dB；MM/UPC≥20dB | ||
| Repeatability | 1000 times typical change value ≤ 0.20dB | ||
| Interchangeability | ≤0.20dB | ||
| Jacket Material(optional) | LSZH,PVC | ||
| Fiber Moder(optional) | G652D, G657A, G657B, OM1, OM2, OM3, OM4 | ||
| Cable Diamete | 2.0 / 3.0mm | ||
| Operating Temperature | -20 ~ +65 ℃ | ||
| Storage Temperature | -40 ~ +85 ℃ | ||

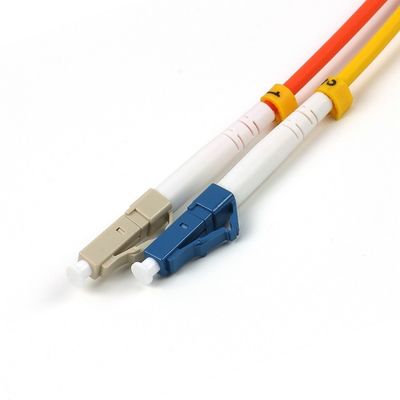

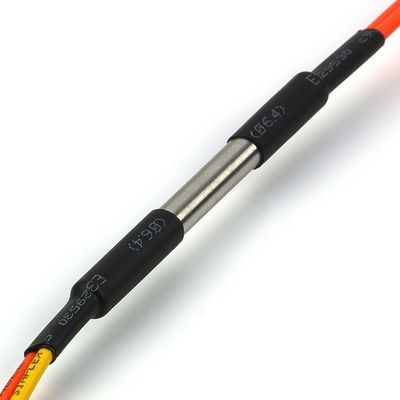

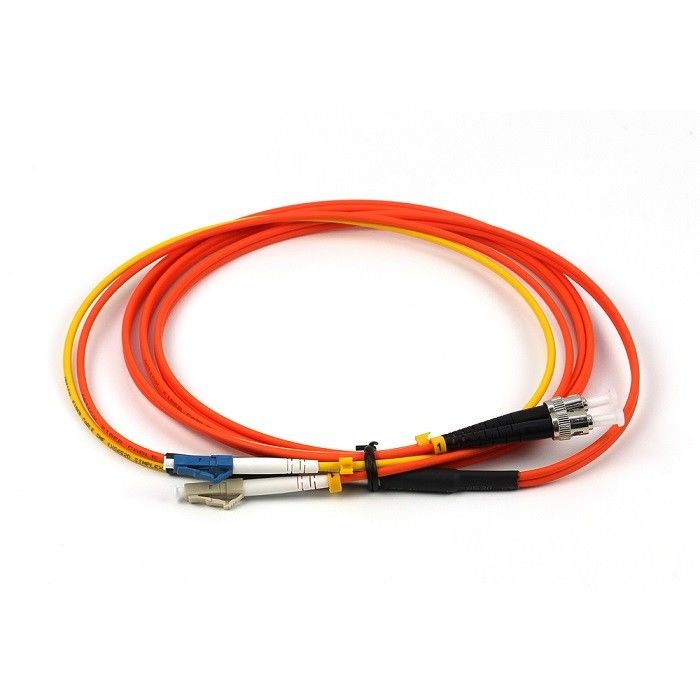

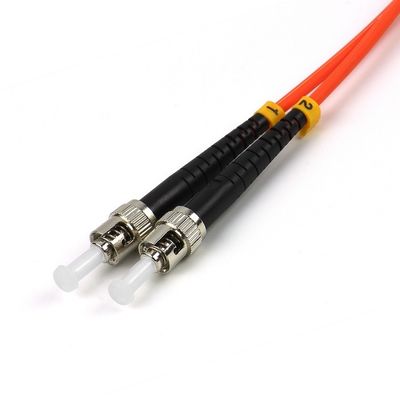

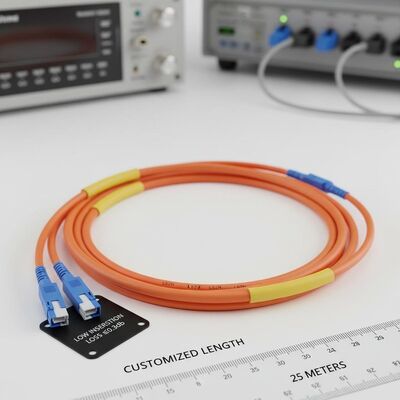

Fiber Optic Patchcord Picture
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
- With more than 24 years manufacturing experience in Fiber optic products;
- More than 450 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
Quality Control:
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Shipping:
- DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
- By Sea or By Air, could use your own pointed forwarder or our cooperated one.
Price: If your QTY is big, the price could be negotiated.
I have been working in this field more than 10 years, I believe, I could give you very good service and professional answers!
If you’re interested in our products or have any doubt, why not send me inquiry at once?
