FTTH Fiber Optic Termination Box 8 16 24cores IP68 Joint Distribution Caja De

FTTH Fiber Optic Termination Box 8 16 24cores IP68 Joint Distribution Caja De

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: FTKS-1806-24H

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiable
Packaging Details: Standard export packing
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 500000 pcs/ Month
Get Best Price Contact Now

Detail Information

Product Name: FTKS-1806-24H 24 Port Outdoor Fiber Optic Termination Box Capacity: Adapter+Pigtail; PLC Splitter
Material: PC+ABS Material With High Quality Connector Type: SC Connector, LC Connector, Ect.
Color: Black Color Port Type: 8, 16, 24
Size: 385*245*130mm Mode Of Application: Singlemode Type
Application: For Outdoor Use Protection Grade: IP68
High Light:

385mm Fiber Optic Termination Box


IP68 ftth termination box


IP68 Fiber Optic Termination Box

Product Description

FTTH Fiber Optic Termination Box 8 16 24cores IP68 Joint Distribution Caja De Distribucion Fibra Optica


Fiber Optic Termination Box Product Name:


FTKS-1806-24H 24 port Outdoor fiber optic termination box


Fiber Optic Termination Box Description:


FTKS-1806-24H 24 fiber access termination box is able to hold up to 24 subscribers. Also, it is optional of 8 cores or 16 cores.


Classic Black color is good for outdoor use. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Fiber Optic Termination Box Features:

  • Water-proof design with IP-68 Protection level
  • Integrated with flap-up splice trays and adaptor holder
  • Impact test: IK10, Pull Force:100N, Full rugged design
  • All stainless metal plate, anti-rust bolts and nuts
  • Fiber bend radius control more than 40mm
  • Suitable for the fusion splice or mechanical splice
  • 1*8 or 1*16 PLC Splitter can be installed in each splice tray as option
  • 3mm glands for flat drop cable(defaulted)
  • 7mm glands for round drop cable(optional)
  • 1 mid-span cable entrance(10-16.5mm) for uncut cable
  • 24 adaptors for drop cable patching

Fiber Optic Termination Box Application:

  • Optical LAN & WAN & CATV
  • FTTH project & FTTX Deployments
  • Broadband High-bit rate data transmission
  • Active device terminations
  • Testing instruments
  • Optical fiber communication networks
  • PON Networks
  • Optical Signal Distribution

Fiber Optic Termination Box Parameter:


Work Temperature -40 ⁰ C ~+85 ⁰ C
Relative Humidity ≤ 85% (+30 ⁰ C)
Atmospheric Pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation Withstand
The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V
(direct current) Between the grounding device and the box body, the withstand
voltage is over 3000V/Min, with no breakdown and flashover. U ≥3000V (direct current)

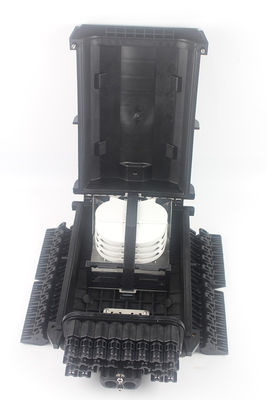

Fiber Optic Termination Box Details:


FTTH Fiber Optic Termination Box 8 16 24cores IP68 Joint Distribution Caja De 0


Fiber Optic Termination Box Other Related:



How To Order Fiber Optic Termination Box:


1. Connector type: LC, SC

2.  Fiber count: simplex, duplex, 4 fibers, 8 fibers, 12 fibers, 16 fibers, 32 fibers, 48 fibers, 96 fibers, etc.

3. Color: grey, white, black.

4. Loading: empty box / full set

5. Quantity


Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

  • With more than 20 years manufacturing experience in Fiber optic products;
  • More than 250 assembly workers with 3 years experienced;
  • More than 10 R&D Engineers;
  • 16 Sets Germany imported Injection Machine and 16 Production Lines;
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
  • OEM Brand is acceptable.
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

  • Spot check the raw material incoming inspection before production;
  • Fully check after every individual process finished;
  • Fully check production half done;
  • Fully check the finished products before packing;
  • Spot check before shipping;


  • Samples: 1-3 working days.
  • Mass Production Order: 3-7 working days.
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request.


  • * DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
  • * By Sea or By Air, could use your own pointed forwarder or our cooperated one.

Payment Term: T/T,Paypal, Western Union and L/C are available.

Price: If your QTY is big, the price could be negotiated.



Q1: How can i get your catalogue and price list?

A1: Please let us know your email or contacts from website directly for our catalogue and price list

Q2: Can I negotiate the prices?

A2: Yes, we may consider discounts for multiple container load of mixed goods

Q3: How much will the shipping charges be?

A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested

Q4: Can I visit you?

A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment

Q5: What if there is quality problem when we get the goods?

A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future

Q6. What is your terms of packing?

A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers

Q7. What is your terms of payment?

A7: T/T 30% as deposit, and 70% before delivery. We"ll show you the photos of the products and packages before you pay the balance

Q8. What is your terms of delivery?


Q9. How about your delivery time?

A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order

Q10. Can you produce according to the samples?

A10: Yes, we can produce by your samples or technical drawings
