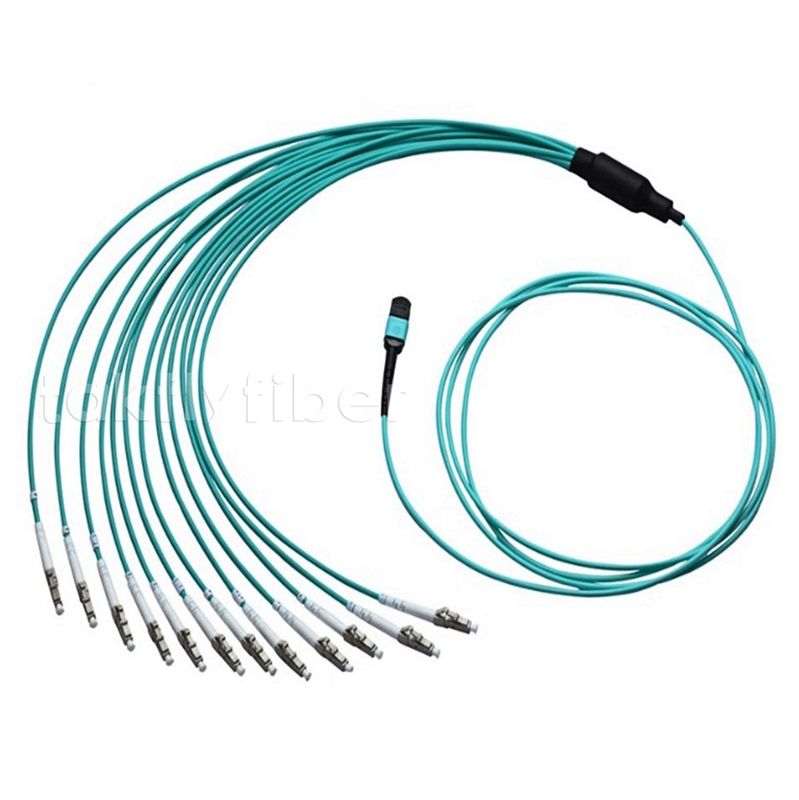

MPO LC Duplex Breakout Cable OM4 12 Fibers 50/125um Fiber Optic Patch Cable for High-Density Data Centers
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, GS |
| Model Number: | MPO Patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | US $8.99-19.99/ Pcs |
| Packaging Details: | PP Bag Then in Carton |
| Delivery Time: | 3-7working day |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 50000pcs/Month |
|
Detail Information |
|||
| Core: | Multicore | Connector A: | LC |
|---|---|---|---|
| Connector B: | MPO /MTP | Fiber Mode: | 50/125um |
| Cable Diameter: | 0.9/2.0/3.0 | Polish Type: | PC/APC |
| Return Loss: | MM/PC:20dB/SM/APC:60dB | Insertion Loss: | 0.35dB Max (0.15dB Typ.) |
| Outer Sheath Material: | PVC/LSZH | Bending Radius Static/Dynamic: | 10d/20d |
| HS Code: | 854470000 | Gender: | Male/Female |
| Highlight: | OM4 optical breakout cable,50/125 Optic Patch Cable,MPO optical breakout cable |
||
Product Description
MPO LC Duplex OM4 12 Fibers Optical Breakout Cable 50/125 Optic Patch Cable
MPO-LC-Duplex-OM4-12 Fibers-Breakout 50/125 MPO Fiber Optic Patch Cable
Product Description
MPO Breakout cable is a cost-effective alternative to time-consuming field termination, designed for high-density fiber patching in data centers that require space saving and reduced cable management. It is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
Product Features
- 12 core fiber available
- Cross Connection: AB/BA
- Parallel Connection: AB/AB
- Small volume, easy management
- Insertion Loss: Low IL & Standard IL available
- Customizable connection method as per QSFP requirements
Applications
- High-speed multi-channel data applications
- Voice & video applications
- Gigabit Ethernet Network
- Access Network
- Telecom
- Optical Test Equipment
- Long-Distance LANs
- CATV & Telecom Backbones
- Industry and Martial Applications
Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Connector A | LC, SC, ST, FC, etc. | Connector B | MPO/MTP |
| Fiber Mode | SM (G652, G655, G657); MM (OM1-OM5) 50/125μm | Minimum Bend Radius | 7.5mm |
| Insertion Loss | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
Return Loss | SM: APC: 60dB MM: PC: 25dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
How to Order
Please specify the following parameters when ordering:
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: as per requirement
- MPO/MTP connector: specify method (A type / B type / C type), male/female, fiber count (4/8/12/16/24/32 fiber)
- Insertion/Return Loss: Standard/Low Loss
- Type: Pigtail/Patch Cord/LGX Box/Patch Panel
Frequently Asked Questions
1. Are you a manufacturer?
Yes, we are a manufacturer and FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
2. What's your MOQ?
MOQ can be 1 piece, but the price is not competitive. Larger quantities receive more competitive pricing.
3. Can you quote FOB price?
Yes. We can deliver by air, DHL, TNT, UPS, FEDEX, etc. For large quantities, we deliver by sea. We provide quotes with freight and lead time based on your detailed requirements and quantity.
4. How is your quality?
Our production follows IEC and European standards. We are CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
5. What's your lead time?
Depends on quantity and products. For fiber optic patch cords, lead time is 2-3 working days for up to 5000 pieces. We keep regular products in stock and can handle urgent orders.
6. What's your warranty?
1-year warranty for patch cords from delivery date for non-artificial damage. For artificial damage, we repair free of charge with freight paid by customer.
7. What's your packing?
International export standard package. Custom logo printing available upon request before quotation.
8. Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
9. Can I have a sample?
Free samples available for products under $10. Freight paid by buyer before delivery.
10. How can I order?
- Send mail or inquiry with product name, specification, and quantity
- We provide quotation with lead time
- After confirmation, we send PI with bank account
- Production begins after payment received
- Confirm consignee before delivery
- Tracking number provided after delivery
11. What is your payment term?
T/T, Western Union, Paypal, MoneyGram. For large amounts: 50% deposit in advance, 50% balance before delivery.
With the same quality standard, if you find better pricing in the market, TAKFLY can match it. Our team has 3+ years of experience in optical fiber industry - we're honored to be your professional product assistant.
