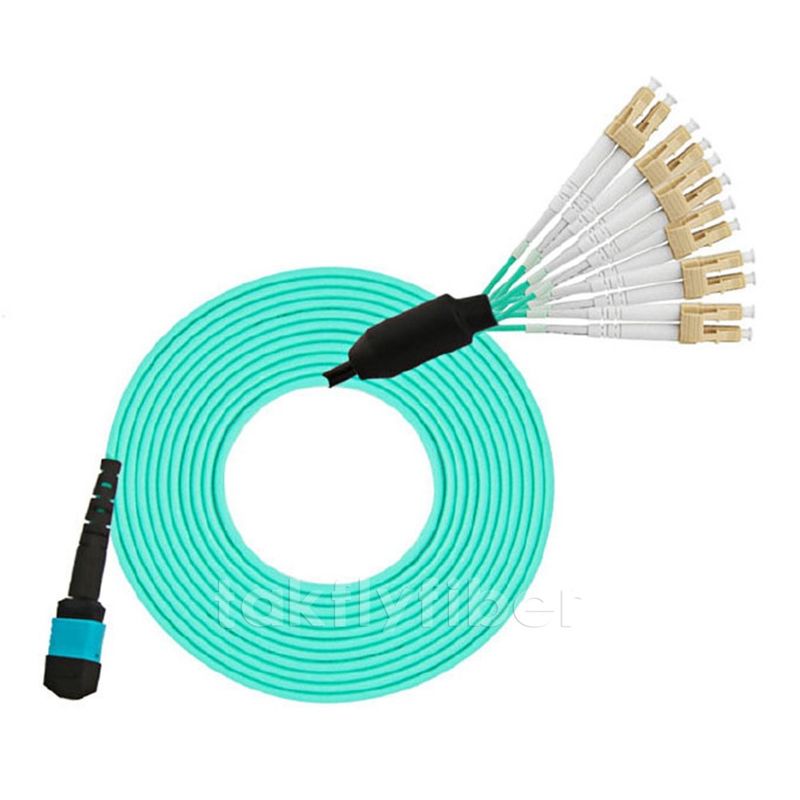

LSZH MPO-LC Fanout Cable with 50/125um Multimode Fiber and Low Insertion Loss MPO Fiber Optic Patch Cord
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, GS |
| Model Number: | MPO Patch cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | US $6.99-19.99/ Pcs |
| Packaging Details: | PP Bag Then in Carton |
| Delivery Time: | 3-7working day |
| Payment Terms: | L/C,T/T,Western Union,Paypal |
| Supply Ability: | 50000pcs/Month |
|
Detail Information |
|||
| Core: | Multicore | Connector A: | LC |
|---|---|---|---|
| Connector B: | MPO /MTP | Fiber Mode: | 50/125um |
| Cable Diameter: | 0.9/2.0/3.0 | Polish Type: | PC/APC |
| Return Loss: | MM/PC:20dB/SM/APC:60dB | Insertion Loss: | 0.35dB Max (0.15dB Typ.) |
| Outer Sheath Material: | PVC/LSZH | Bending Radius Static/Dynamic: | 10d/20d |
| HS Code: | 854470000 | Gender: | Male/Female |
| Highlight: | LSZH Fanout MPO Cables,Fanout Fiber Optic Patch Cord,LC Fanout MPO Cables |
||
Product Description
Fanout MPO-LC Connector Cables LSZH MPO Multimode Fiber Optic Patch Cord are designed for high-performance network applications. These cables feature MTP/MPO connectors used to interconnect cassettes, panels, or fan outs, available in standard 8, 12, 24, or 48 cores versions using a compact and rugged microcables structure. The compact design optimizes cableway use and improves airflow while maintaining the highest quality standards.
- Low insertion loss (≤ 0.20dB) and high return loss (≥ 55 dB)
- Free-floating ceramic ferrule
- UL-rated plastic housing and boot
- Boots available in a variety of colors
- High precision alignment connector
- Local Area Networks (LANs) and Wide Area Networks (WANs)
- Fiber Optic CATV, FTTH, FTTB, FTTP
- Fiber Optic telecommunication systems
- Transmission Mode (ATM)
- Fiber Optic Backbone
- Martial Instrumentation
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Connector A | LC, SC, ST, FC | Connector B | MPO/MTP |
| Fiber Mode | SM (G652, G655, G657); MM (OM1-OM5) 50/125μm | Minimum Bend Radius | 7.5mm |
| Insertion Loss | Standard: ≤0.35/0.7 (Typical/Max) Low Loss: ≤0.2/0.35 (Typical/Max) |
Return Loss | SM: APC: 60dB MM: PC: 25dB |
| Attenuation at 850nm | ≤2.3dB/km | Attenuation at 1300nm | ≤0.6dB/km |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Operating Temperature | -10°C to +70°C | Storage Temperature | -40°C to +85°C |
Please provide the following specifications when ordering:
- Connector type: SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (can customize other diameters)
- Coating material: PVC / LSZH
- Fiber count: simple / duplex / 4 core / 6 core / 8 core / 12 core / 24 core / 48 core / 96 core
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: according to your requirement
- MPO/MTP connector details: method (A type / B type / C type), male or female, fiber count (4/8/12/16/24/32 fiber)
- Insertion/Return Loss: Standard/Low Loss
- Type: Pigtail/Patch Cord/LGX Box/Patch Panel
Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
Yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver by sea. We can quote price with freight and lead time after you provide detailed requirements with quantity.
Our production follows IEC, Europe standards. CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
It depends on quantity and products. For fiber optic patch cord, lead time is 2-3 working days within 5000 pcs. We keep regular products in stock and can handle urgent orders.
1 year warranty for patch cord since delivery for non-artificial damage. For artificial damage, we repair for free with freight paid by customer.
International export standard package. Logo printing available upon request before quotation.
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreement.
Free samples available under $10. Freight paid by buyer before delivery.
1. Send mail or inquiries with product name, specification, and quantity
2. We provide quotation with lead time
3. After confirmation, we send PI with bank account
4. Production starts after payment received
5. Confirm consignee before delivery
6. Tracking number provided after delivery
T/T, Western Union, Paypal, MoneyGram at once. For large amounts: 50% deposit in advance, 50% balance paid before delivery.
With the same quality standard, if you could get better price from the market, TAKFLY also could support you same price.
3 years work experience in optical fiber industry. It's honored to be your professional product assistant.
