FTTH Fiber Optical Indoor Cable GJYFJU-1B6a2 | For Data Center and Telecommunications
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | FTTH Fiber Optical Indoor Cable GJYFJU-1B6a2 | For Data Center and Telecommunications |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | FTTH Fiber Optical Indoor Cable GJYFJU-1B6a2 | For Data Center And Telecommunications | SM Attenuation: | Typical 0.36/0.22 |
|---|---|---|---|
| Cladding Diameter(µm): | 125±1.0 | MM Attenuation: | Typical 3.0/1.0 |
| Optical Fiber Fiber Count: | 24-288 C | Loose Tube Color: | The Chromatographic |
| Sheath Material: | LSZH | Sheath Diameter: | 3.0±0.1mm |
| Temperature Range: | -20℃-+60℃ | Warranty: | 5 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | FTTH indoor fiber optic cable,GJYFJU-1B6a2 fiber cable,data center fiber optic cable |
||
Product Description

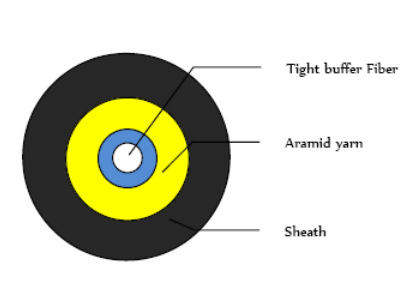

The GJYFJU-1B6a2 universal indoor and outdoor fiber optic cable is constructed by evenly applying strands of Aramid yarn as the strength member over ф900μm LSZH tight-buffered fibers, then completed with a TPU (LSZH) outer jacket. This design delivers reliable performance for both indoor and outdoor fiber routing environments.
- Optical fiber active connection jumper or pigtail fiber
- Routing and patching for data centers and indoor communication network locations
- Interconnection of instruments and communication equipment
- Coated fiber is easy to peel off, simplifying field termination
- Aramid yarn reinforced strength member provides excellent tensile resistance
- Multi-core capability with small outer diameter for space-saving installation
- Good flame-retardant performance with low induced attenuation within the operating temperature range
| NO. | Item | Unit | Specification (G657A2) |
|---|---|---|---|
| 1 | Mode Field Diameter @1310nm | μm | 8.2~9.0 |
| Mode Field Diameter @1550nm | μm | 9.1~10.1 | |
| 2 | Cladding Diameter | μm | 125±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12 |
| 8 | Cable Cutoff Wavelength | nm | λcc ≤1260 |
| 9 | Attenuation (Max) @1310nm | dB/km | ≤0.36 |
| Attenuation (Max) @1550nm | dB/km | ≤0.25 | |
| 10 | Macro-Bending Loss (1 turn × 7.5mm radius @1550nm) | dB | ≤0.08 |
| Macro-Bending Loss (1 turn × 7.5mm radius @1265nm) | dB | ≤0.25 |
| Item | Descriptions |
|---|---|
| Optical Fiber — Fiber Count | 1 |
| Optical Fiber — Color | Red |
| Tight Buffer Fiber — Material | LSZH |
| Tight Buffer Fiber — Diameter | 0.85±0.05 mm |
| Tight Buffer Fiber — Color | Red |
| Tight Buffer Fiber — One-time Stripping Length | 5–8 mm |
| Strength Member — Material | Aramid yarn |
| Outer Jacket — Material | TPU |
| Outer Jacket — Diameter | 3.0±0.2 mm |
| Outer Jacket — Color | Black |
| Items | Standard | Condition | Value |
|---|---|---|---|
| Tensile Performance | IEC 60794-1-2-E1 | Short-term | 800N |
| Tensile Performance | IEC 60794-1-2-E1 | Long-term | 300N |
| Crush Resistance | IEC 60794-1-E3 | Short-term | 500N |
| Crush Resistance | IEC 60794-1-E3 | Long-term | 100N |
| Cable Impact | IEC 60794-1-E4 | — | No damage to outer jacket and inner elements |
| Repeat Bending | IEC 60794-1-E6 | — | — |
| Torsion | IEC 60794-1-E7 | — | — |
| Cable Bend | IEC 60794-1-E11 | — | — |
| Temperature Range | IEC 60794-1-2-F1 | — | -20℃ to +60℃ |
| Bending Radius | — | Static | 10mm |
| Bending Radius | — | Dynamic | 20mm |
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience each
- 10+ R&D engineers dedicated to innovation
- 16 Germany-imported injection machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
- Samples: 1–3 working days
- Mass Production Orders: 3–7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Please provide your email or contact information through our website to receive our catalogue and price list.
Yes, we may consider discounts for multiple container loads of mixed goods.
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
EXW, FOB, CFR, CIF, DDU.
Generally 5–7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Yes, we can manufacture products based on your samples or technical drawings.
