40G QSFP+ to 4x10G SFP+ Active Optical Cable – Breakout, 4-Channel Full-Duplex, VCSEL, Hot-Pluggable
Product Details:
| Place of Origin: | ShenZhen & ZhongShan China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | 40G QSFP+ to 4×10G SFP+AOC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 Works depend on the QTY |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 3000PCS/Week |
|
Detail Information |
|||
| Highlight: | 40G QSFP+ breakout optical cable,4x10G SFP+ active optical cable,VCSEL hot-pluggable QSFP+ cable |
||
|---|---|---|---|
Product Description

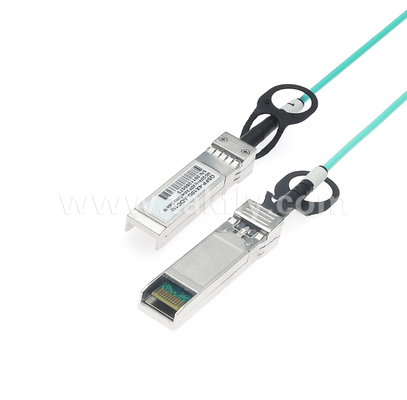

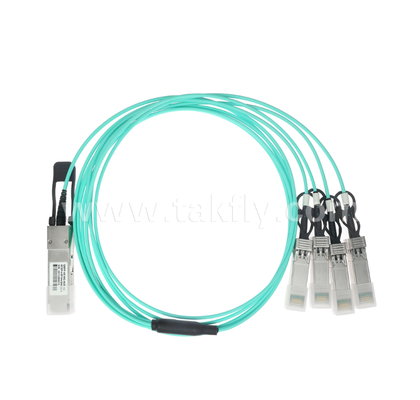

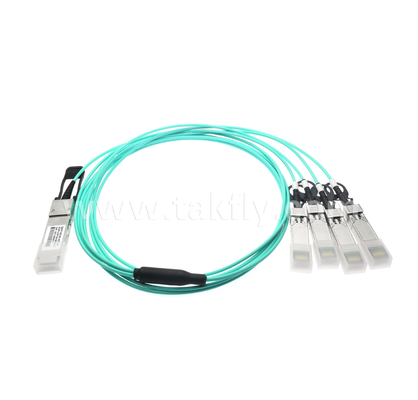

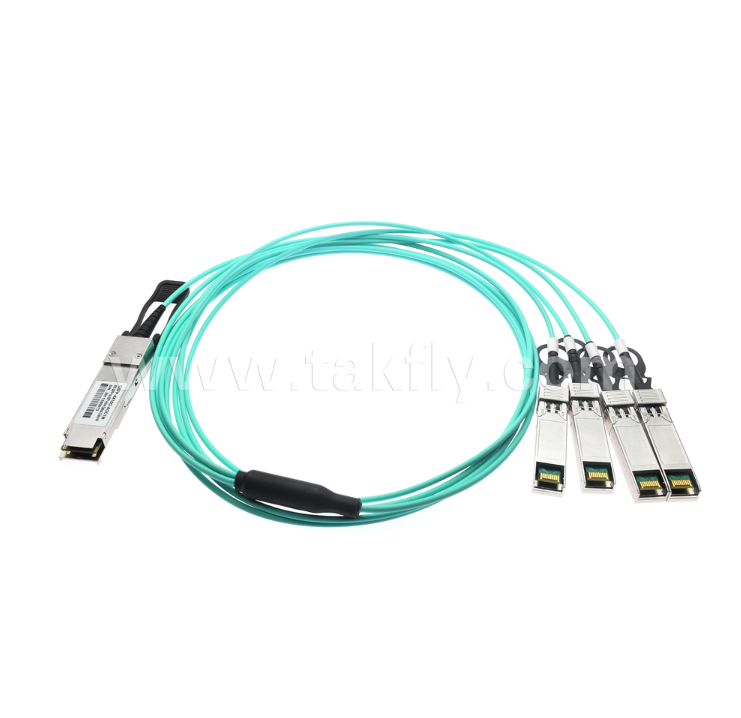

40G QSFP+ to 4x10G SFP+ Active Optical Cable
This high-performance breakout cable is engineered for 40G to 4×10G applications, integrating four full-duplex data lanes on the QSFP+ end with each operating at 10.3125Gbps to deliver an aggregate bandwidth of 40Gbps. The cable breaks out into four independent 10G SFP+ connectors for direct connection to 10G equipment.
The breakout AOC provides a cost-effective, space-saving alternative to using separate QSFP+ transceivers, fan-out cassettes, SFP+ transceivers, and fiber patch cords. This integrated assembly reduces connection points, improves signal integrity, and simplifies cable management in high-density environments.
Key Features
- 40G to 4×10G breakout capability for direct connection between 40G and 10G equipment
- QSFP+ end compliant with SFF-8436 industry standard specification
- SFP+ ends compliant with SFF-8431 industry standard specification
- IEEE 802.3ba-2010 compliant for 40GBASE-SR4 and XLPPI specifications
- InfiniBand QDR/DDR/SDR support with backward compatibility
- 850nm VCSEL technology for proven high reliability and long service life
- Low power consumption: QSFP+ end <1.5W, SFP+ ends <0.35W each
- Hot-pluggable design for easy servicing and installation
- Two-wire serial interface with digital diagnostics support
- Lightweight, high-density fiber for optimal cable management
Applications
- 40G to 4×10G breakout connections in data centers
- Top-of-rack (TOR) switch to server connectivity
- InfiniBand QDR networks (40G to 10G)
- 40GBASE-SR4 Ethernet to 10G SFP+ equipment
- High-performance computing (HPC) clusters
