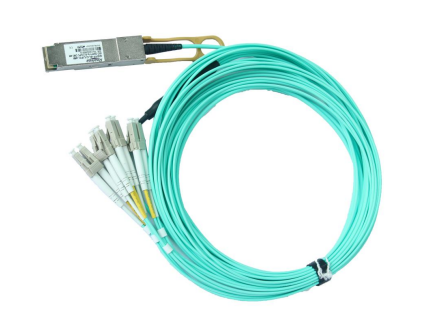

40Gb/s QSFP+ – 4x double LC connect TKQS-4*Double LC-XXXC | High Quality and Fiber Optical Network
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TKQS-4*Double LC-XXXC |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | T/T,/Paypal,L/C |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 40Gb/s QSFP+ – 4x Double LC Connect TKQS-4*Double LC-XXXC | High Quality And Fiber Optical Network | Supply Voltage: | 3.14-3.46V |
|---|---|---|---|
| Supply Current: | 300 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 180-700 MA | Data Input Swing Differentia: | 400-1800 MV |
| Transmit Disable Assert Time: | 10 Us | Differential Data Output Swing: | 300-850 MA |
| Operating Case Temperature: | 0 To +70°C | Warranty: | 1 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 40Gb/s QSFP+ optical transceiver,QSFP+ double LC connector,fiber optical network module |
||
Product Description
40Gb/s QSFP+ – 4x Double LC Connect TKQS-4*Double LC-XXXC
High Quality Fiber Optical Network Breakout Cable Solution
Product Overview
The TKQS-4*Double LC-XXXC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4× double LC connect cable breakout solution. This breakout cable is designed for 40G to 4× 10G applications, providing reliable high-performance connectivity.
This AOC delivers high performance for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth, with each lane operating at 10.3125 Gbps. The cables support 4 x 10G InfiniBand QDR applications and maintain backward compatibility with 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applications.
Leveraging TAKFLY's proven QSFP+ to QSFP+ Active Optical Cable and SFP+ Active Optical Cable technologies, this product incorporates advanced integrated circuit and VCSEL technology to ensure reliable long-life performance and consistent service.
Applications
- 40GbE and 10GbE break-out applications for Datacom switch and router connections
- 40G to 4×10G density applications for Datacom and Proprietary protocol applications
- Datacenter infrastructure and connectivity solutions
Key Features
QSFP+ AOC End:
- Compliant with 40GBASE-SR4 and XLPPI specifications per IEEE 802.3ba-2010
- Supports 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
- Compliant with industry standard SFF-8436 QSFP+ Specification
- Power Level 1: Maximum Power < 1.5 W
- Operates at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbE applications
- Operates at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR applications
Each 4 × Double LC Connect End:
- Available with double LC Single Mode or double LC Multi-mode connectors
Active Optical Cable Assembly:
- Operating temperature range: 0 to 70°C case temperature
- Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
- Hot pluggable for ease of servicing and installation
- Two Wire Serial interface
- Utilizes optical fiber for high density and thin, lightweight cable management
Recommended Operating Conditions and Supply Requirements
Technical Specifications
Product Images
Why Choose TAKFLY?
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control Process
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
