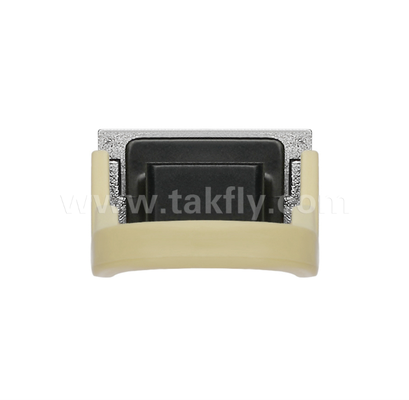

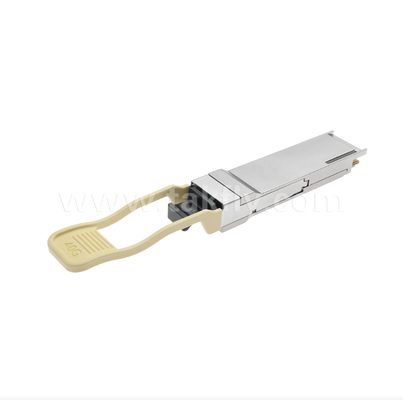

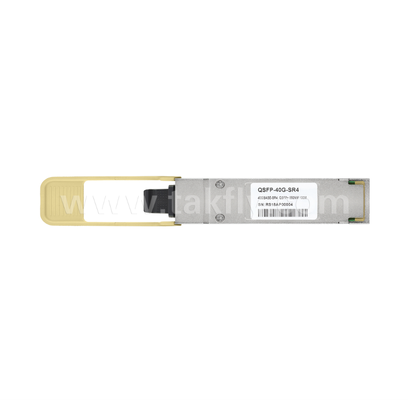

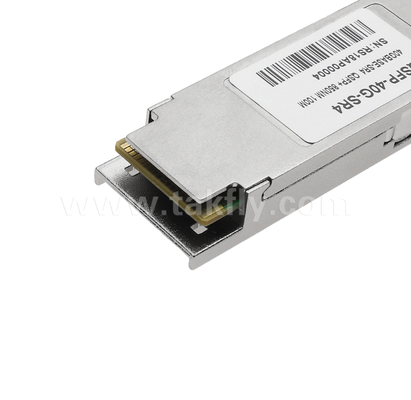

TAKFLY 40G QSFP+ SR4 Transceiver – 850nm VCSEL, 100m/150m MMF, MPO-12, Short-Reach Data Center Solution
Product Details:
| Place of Origin: | ShenZhen & ZhongShan China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | TKQSFP-40G-SR4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Can be negotiation |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 Works depend on the QTY |
| Payment Terms: | T/T,Paypal |
| Supply Ability: | 3000PCS/Week |
|
Detail Information |
|||
| Highlight: | 40G QSFP+ SR4 transceiver 850nm VCSEL,QSFP+ transceiver MPO-12 MMF,Short-reach data center optical transceiver |
||
|---|---|---|---|
Product Description
TAKFLY 40G QSFP+ SR4 Transceiver
High-performance QSFP+ optical transceiver designed for 40GBASE-SR4 Ethernet, InfiniBand, and short-range multi-lane data communication applications. Featuring 4-channel parallel optics with 850nm VCSEL array, this module delivers 40Gbps bandwidth over multimode fiber, making it ideal for data center interconnects, high-performance computing (HPC), and enterprise network aggregation.
Technical Specifications
- 40Gbps aggregate bandwidth - 4 x 10.3125Gbps per channel
- 4-channel full-duplex transceiver - simultaneous transmit and receive
- 850nm VCSEL array - low power, high reliability, long life
- 4-channel PIN photodetector array - high-sensitivity signal detection
- 100m (OM3) / 150m (OM4) reach - over multi-mode fiber (MMF)
- MTP/MPO-12 optical interface - standard 12-fiber ribbon connection
- Hot-pluggable QSFP+ form factor - plug-and-play, no system shutdown
- Low power consumption - <1.5W, +3.3V power supply
- Built-in digital diagnostic functions - DDM/DOM for real-time monitoring
- Housing isolated from connector ground - enhanced signal integrity
- Wide operating temperature - 0°C to +70°C
- RoHS-6 compliant - lead-free and environmentally friendly
- IEEE 802.3ba compliant - 40GBASE-SR4 standard
- QSFP+ MSA compliant - interoperable with major networking equipment
Manufacturing Excellence
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
Strong R&D Capability: More than 10 R&D engineers
Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, and light checkers
OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Presence
Active participation in major industry exhibitions including:
Source Electronics Exhibition
OFC
FOCC
ConnecAsia
NFTCOM
AFRICACOM
SMART ICT
Contelem
Delivery Information
| Samples | 1-3 working days |
| Mass production orders | 3-7 working days |
| Packaging | Plastic bag, carton, and pallet options available according to your requirements |
