96 Cores Floor Type Fiber Optic Cross Connect Cabinet | High-capacity Networking Solution
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | 96 Cores Floor Type Fiber Optic Cross Connect Cabinet |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | 96 Cores Floor Type Fiber Optic Cross Connect Cabinet | Capacity: | 96 Cores |
|---|---|---|---|
| Return Loss:: | FC / UPC ≥ 50dB FC / APC: ≥ 60dB | Relative Humidity:: | ≤93% (+ 40 ºC) |
| Operating Temperature: | -40 ºC ~ +60 ºC | Dimension: | 770 * 450 * 260 |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 96 cores fiber optic cabinet,floor type fiber optic panel,high-capacity fiber optic cross connect |
||
Product Description

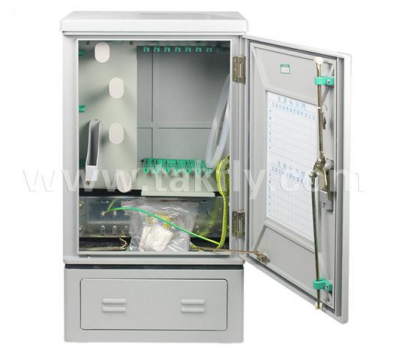

96 Cores Floor Type Fiber Optic Cross Connect Cabinet
High-capacity networking solution for backbone cable and wiring cable nodes in fiber optic networks. Primarily used for outdoor cable connection, wiring, scheduling, and flexible core connections through fiber optic connectors and jumper cables.
Product Overview
This optical cable transfer box delivers excellent performance with safe, reliable operation and flexible core scheduling. Ideal for fiber-optic local area networks, regional networks, and fiber access networks.
Applications
- Telecommunications subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN networks
- CATV systems
Key Features
- Fully enclosed SMC molding chassis with IP65 protection rating - moisture, water, dust, salt spray, corrosion, and aging resistant
- Optimized fiber routing with bending radius greater than 40mm
- Clear identification and marking for each fiber connection
- Compatible with both ribbon and non-ribbon cables
- Integrated optical disk storage capacity
- Full modular design for flexible customer assembly
- Individual removable modules for easy construction and maintenance
- Reliable cable fixation, stripping, and grounding protection
- Front-access fiber distribution and scheduling
Technical Specifications
| Specification | Value |
|---|---|
| Cabinet Size (Floor Type) | 770 × 450 × 260 mm |
| Cabinet Size (Wall Mounted) | 590 × 450 × 260 mm |
| Operating Temperature | -40°C to +60°C |
| Relative Humidity | ≤93% (+40°C) |
| Atmospheric Pressure | 70KPa to 106Kpa |
| Connector Attenuation | ≤ 0.2dB |
| Return Loss (FC/UPC) | ≥ 50dB |
| Return Loss (FC/APC) | ≥ 60dB |
| Connector Durability | > 1000 insertions |
| Insulation Resistance | ≥ 20000MΩ / 500V (DC) |
| Protection Level | IP65 |
Dimensions
Wall Mounted: 590mm (height) × 450mm (width) × 260mm (depth) excluding base
Floor Type: 770mm (height) × 450mm (width) × 260mm (depth) including base
Floor Type: 770mm (height) × 450mm (width) × 260mm (depth) including base
Why Choose TAKFLY?
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
A5: If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
A6: We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
A10: Yes, we can manufacture products based on your samples or technical drawings.
