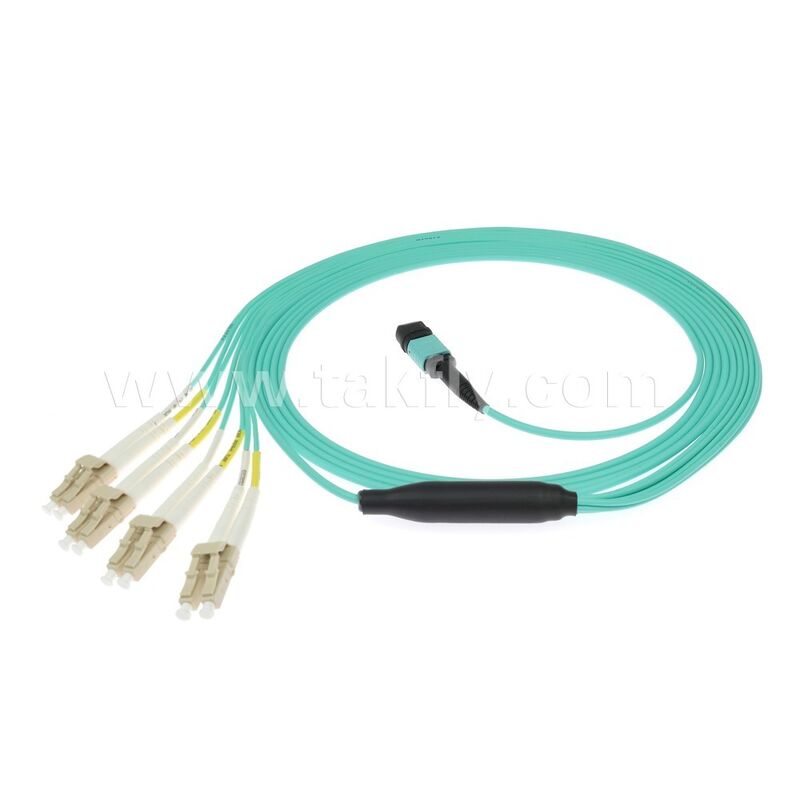

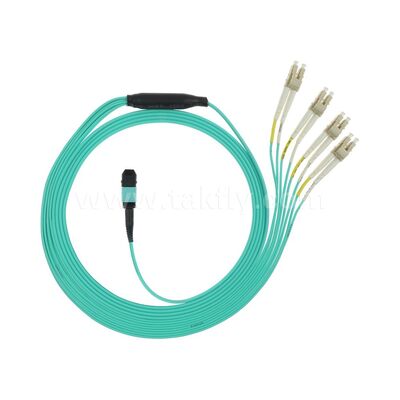

MPO/MTP-LC Breakout Patchcord Fiber Optic Cable for Data Center AI Cabling FTTx
Product Details:
| Place of Origin: | China |
| Brand Name: | OEM |
| Certification: | ISO, CE RoHS |
| Model Number: | MPO/MTP-LC-SM/MM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD10-58/pc |
| Packaging Details: | PE Self-sealing Bag + Carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 50000pcs per month |
|
Detail Information |
|||
| Fiber Type: | Singlemode/Multimode | Customization: | Yes |
|---|---|---|---|
| Highlight: | MPO LC breakout fiber cable,MTP fiber optic patchcord for data center,MPO MTP cable for FTTx |
||
Product Description
MPO/MTP-LC Breakout Patchcord Fiber Optic Cable
Ideal solution for Data Center AI Cabling and FTTx applications, providing efficient optical connectivity in high-density environments.
Product Overview
MPO/MTP breakout patch cords consist of four main components: main cable, breakout cable, branching device, and connector. The multi-core main cable design simplifies cabling management and prevents tangling, making it perfect for high-density optical cabling environments.
Key Features
- High Quality Ferrules: Professional polishing technology and precise optical endface matching ensure stable transmission and efficient connections
- 100% Quality Testing: All TAKFLY MPO/MTP-LC breakout patch cords undergo comprehensive testing to meet product standards and user requirements
- Multiple Configuration Options: Full range of MPO/MTP-LC breakout patch cords available with customizable transmission mode, cable type, and connector type
Technical Specifications
| Parameter | LC, SC, ST, FC | MPO/MTP |
|---|---|---|
| End face type | UPC and APC | PC and APC |
| Fiber type | SM (G652, G655, G657); MM (OM1~OM5) | |
| Core number | 12, 24 | |
| Cable Diameter | 0.9, 2.0, 3.0 | Mini round cable: Max 4.5mm; Ribbon cable: Max 3.0*5.0mm |
| Insertion Loss(dB) | ≤0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return Loss(Min) | UPC SM: 40dB APC SM: 60dB PC MM: 25dB |
SM APC 60dB | MM PC 20dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
|
| Repeatability | ≤0.1dB | |
| Durability | ≤0.2dB | |
| Interchangeability | ≤0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | PVC, LSZH | |
| Bending radius (Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Applications
TAKFLY MPO/MTP breakout patch cords feature stable transmission and high reliability, making them ideal optical cabling products for high-density environments. Widely applicable in optical network scenarios including data centers and various optical cabling applications.
