Newly Design High Density MPO Patch Panel and Rack Mount | MPO Cable Assemblies | For Fiber Network Solution
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | Newly Design High Density MPO Patch Panel and Rack Mount | MPO Cable Assemblies | For Fiber Network Solution |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union,T/T,MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | Newly Design High Density MPO Patch Panel And Rack Mount | MPO Cable Assemblies | For Fiber Network Solution | End Face Type: | UPC And APC; PC And APC |
|---|---|---|---|
| Fiber Type: | SM（G652、G655、G657）；MM（OM1-OM5） | Cable Diameter: | 2.0、3.0 Or Customized (Simplex/duplex) |
| Insertion Loss: | ≤ 0.3 DB | Return Loss: | UPC SM≥50dB 、APC SM≥ 60 DB、 PC MM ≥ 35 DB |
| Repeatability: | ≤ 0.1 | Wavelength: | SM:1310/1550 MM:850/1300 |
| Operating Temperature: | -20℃~70℃ | Storage Temperature: | -40℃~80℃ |
| Outer Sheath Material: | PVC、LSZH | Bending Radius（Static/Dynamic）: | 10D/20D |
| Length: | Customized | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | high density MPO patch panel,rack mount MPO cable assemblies,fiber network MPO solution |
||
Product Description
High Density MPO Patch Panel and Rack Mount
Newly designed 1U-19 inch MPO/MTP high-density rack-mount fiber patch panel engineered for large data center applications, MDF installations, IDF wiring areas, optical fiber backbone connections, fiber distribution unit management, and other high-density integrated fiber environments.

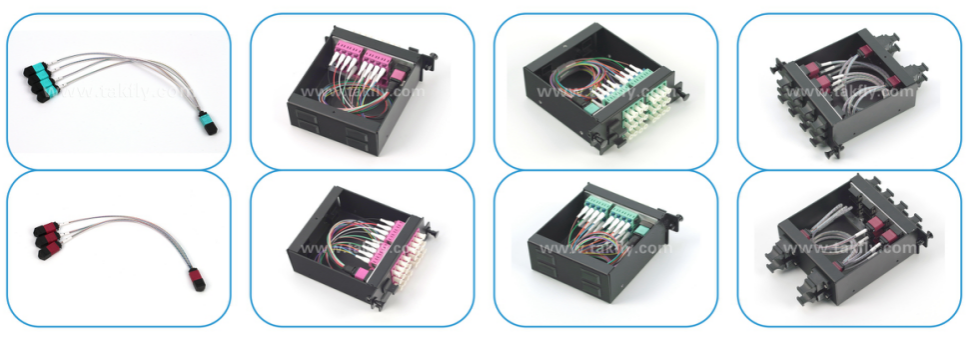

This 1U 19-inch MPO/MTP patch panel accommodates 4 pre-connected cassette modules, with maximum capacity of 1152 cores for MPO interface or 96 cores for LC interface. Each independent pre-terminated module box is placed within the optical fiber distribution frame to complete the full patch panel assembly.
Applications
- Optical fiber communication dense wiring systems between buildings
- Optical link interconnection in optical active equipment for LAN cabling
- Telecommunication base stations
- Data center rooms in industrial areas
- Data center rooms in commercial buildings
- CATV systems
- LAN networks
- WAN networks
- FTTX deployments
Key Features
- Installed in 19-inch rack-mount cabinets for cassette module centralized management
- 1U high-density design with capacity for 1152 fibers (MPO) or 96 fibers (LC)
- Input port available on front or back panel, output port on front panel
- Male or Female MPO/MTP connectors available with precise PIN and adaptor positioning
- Modular design with plug-in locking structure and clear line sequence identification
- High-quality aluminum alloy material with electrostatic coating surface
- Compact, lightweight, impact-resistant, flame-retardant, and corrosion-resistant construction
Configuration Schemes
Model A1 Configuration
| LGX Cassette Capacity | LGX | Total Capacity | Connector Type | Size | Application |
|---|---|---|---|---|---|
| R: 72F MPO×4 pcs T: 24F MPO×12 pcs =288F |
4 | 1152F | MPO×16×4 | 1U | 1 A1 LGX Cassette connects with 12 C3 LGX Cassettes |
Model A2 Configuration
| LGX Cassette Capacity | LGX | Total Capacity | Connector Type | Size | Application |
|---|---|---|---|---|---|
| R: 72F MPO×4 pcs T: 48F MPO×6 pcs=288F |
4 | 1152F | MPO×10×4 | 1U | 1 A2 LGX Cassette connects with 3 C1 LGX Cassettes |
Model B1 Configuration
| LGX Cassette Capacity | LGX | Total Capacity | Connector Type | Size | Application |
|---|---|---|---|---|---|
| R: 72F MPO×1 pc T: 16F MPO×3 pcs + 24F MPO×1 pc=72F |
4 | 288F | MPO×5×4 | 1U | Connects with 400G transmission devices and C3 LGX Cassettes |
Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Type | SM (G652, G655, G657); MM (OM1-OM5) |
| Connector | Male/Female MPO/MTP, LC |
| Cable Diameter | Mini Round: Max 4.5mm; Ribbon: Max 3.0×5.0mm; 0.9/0.6 |
| Insertion Loss | Standard: ≤0.35/0.7dB; Low Loss: ≤0.2/0.35dB; LC: ≤0.3dB |
| Return Loss | APC SM: 60dB; PC MM: 20dB; UPC SM: 40dB |
| Test Wavelength | SM: 1310/1550nm; MM: 850/1300nm |
| Dimensions | Module Box: 93×100×39mm; Machine Case: 482×200×44.2mm |
| Material | Aluminum |
Packaging Information
| Weight | Inner Box Size | Outer Box Dimensions | Weight per Carton |
|---|---|---|---|
| 1.5kg | 500×280×80mm | 510×300×420mm | 11kg |
Why Choose TAKFLY?
Professional Manufacturing
- 26+ years manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years experience
- 10+ R&D Engineers
- 16 Germany imported injection machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- OEM branding available
- Global exhibition participation
Quality Control
- Raw material incoming inspection
- Full inspection after every production process
- Half-production quality checks
- Finished product inspection before packing
- Pre-shipping spot checks
Delivery
- Samples: 1-3 working days
- Mass production: 3-7 working days
- Flexible packaging options available
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we offer discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and method. We provide quotes upon request.
Q4: Can I visit your factory?
A4: Yes, our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there are quality problems with the goods?
A5: If quality issues arise, please provide photos for our QC department to analyze and resolve. We continuously improve our quality processes.
If you're interested in our products or have any questions, feel free to contact us at any time!
