MTP-16CH-FA Fiber Array Assembly – MTP Connector to 16-Channel V-Groove Fiber Array, Low Insertion Loss, for High-Speed Optical Transceivers & CPO/Data Center Applications
Product Details:
| Place of Origin: | ShenZhen & ZhongShan,China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | MTP 16CH-FA 16CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | can be negotiated |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 working days depend on QTY |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 1000 PCS/Days |
|
Detail Information |
|||
| Highlight: | MTP fiber array assembly,16-channel V-groove fiber array,MTP connector for optical transceivers |
||
|---|---|---|---|
Product Description

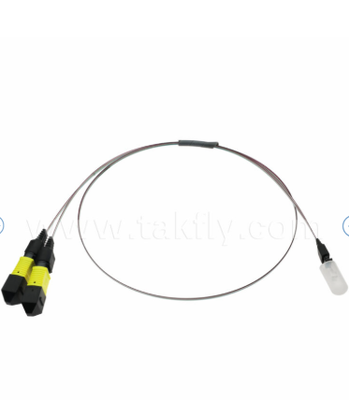

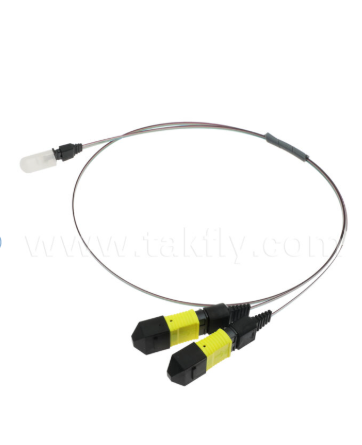

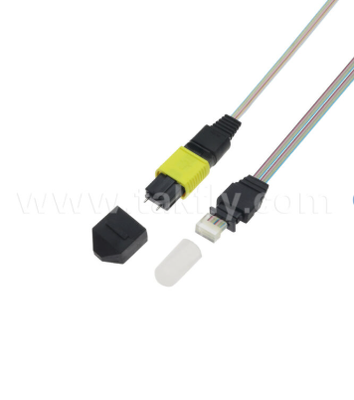

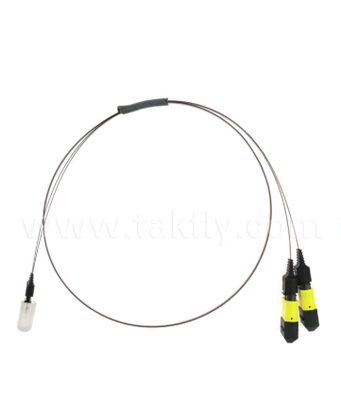

MTP-16CH-FA Fiber Array Assembly
MTP Connector to 16-Channel V-Groove Fiber Array, Low Insertion Loss, for High-Speed Optical Transceivers & CPO/Data Center Applications
Product Overview
The MTP-16CH-FA is a precision fiber array assembly designed for internal optical coupling in high-speed optical transceivers (400G/800G) and CPO/OCS applications. It features an MTP/MPO connector input (containing an MT ferrule) and a 16-channel V-groove fiber array output, enabling efficient light transmission between external fiber networks and photonic integrated circuits (PICs).
Key Features
- MTP/MPO connector to 16-channel V-groove fiber array
- Low insertion loss for optimal signal transmission
- Precision alignment for efficient optical coupling
- Designed for high-speed 400G/800G applications
- Compact design for space-constrained environments
Applications
- QSFP / QSFP-DD / OSFP optical transceivers (400G/800G)
- CPO (Co-packaged Optics) and OCS (Optical Circuit Switch) applications
- Silicon photonics edge coupling
- Parallel optical transceiver modules and supercomputers
- Data center high-density interconnects
- Active optical modules and test equipment
How It Works
The MTP-16CH-FA receives parallel optical signals from an MTP/MPO connector (plugged into the module's external interface), then routes the signals through precisely aligned fibers to the 16-channel V-groove output array. This output array is positioned directly against the photonic integrated circuit (PIC) or PD array inside the optical module, enabling efficient optical coupling with minimal loss.
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
- Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
- Strong R&D Capability: More than 10 R&D engineers
- Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
- Comprehensive Testing Facilities: More than 30 sets of testing instruments, including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM Branding Accepted: Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Presence
Active participation in major industry exhibitions including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and Source Electronics Exhibition.
Delivery Information
| Service Type | Timeline |
|---|---|
| Samples | 1-3 working days |
| Mass production orders | 3-7 working days |
| Packaging | Plastic bag, carton, and pallet options available according to your requirements |
