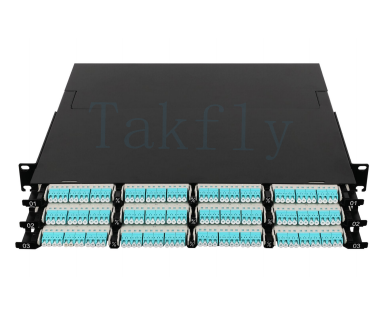

1U 144C Ultra-High Density MPO Patch Panel – 12 Cassette Slots, 144 LC Cores, for MDF/IDF Backbone Connection
Product Details:
| Place of Origin: | ShenZhen & ZhongShan,China |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | 144 Core |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | can be negotiated |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 working days depend on QTY |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 1000 PCS/Days |
|
Detail Information |
|||
| Highlight: | 1U MPO patch panel for backbone connection,144C high-density fiber optic patch panel,12 cassette slots MPO patch panel |
||
|---|---|---|---|
Product Description
1U 144C Ultra-High Density MPO Patch Panel
12 Cassette Slots, 144 LC Cores, for MDF/IDF Backbone Connection
Product Overview
This 1U 19-inch MPO/MTP high-density rack-mount fiber patch panel is engineered for large data center environments including MDF applications, IDF wiring areas, optical fiber backbone connections, fiber distribution unit management, and other high-density integrated fiber optic environments. Designed for installation in standard 19-inch racks and cabinets, this patch panel accommodates 12 pre-connected cassette modules with maximum capacity of 144 cores for LC interfaces.
Applications
- Optical fiber communication dense wiring systems between buildings
- Optical link interconnection in optical active equipment for LAN cabling
- Telecommunication base stations
- Data center rooms in industrial areas
- Data center rooms in commercial buildings
- CATV systems
- LAN networks
- WAN networks
- FTTX deployments
Key Features
- Compatible with 19-inch rack-mount and cabinet installations for centralized cassette module management
- 1U high-density design supports 144 fibers for LC interface
- Available in multiple sizes: 2U (288 fibers) and 4U (576 fibers) for LC interface
- Male or Female MPO/MTP connectors available with precise PIN and adaptor positioning
- Modular design with plug-in locking structure and clear line sequence identification
- Easy testing, installation, removal, and mating adjustments
- Sturdy, durable construction with electrostatic coating surface
- Compact, lightweight cassette modules with impact-resistant, high-pressure, flame-retardant properties
- Corrosion-resistant and strong structural protection for internal optical fibers
Technical Specifications
Packaging Details
Product Structure
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team
80+ assembly workers with 6+ years of experience
Strong R&D Capability
10+ R&D engineers
Advanced Production Equipment
16 German imported injection machines and 16 production lines
Comprehensive Testing
30+ testing instruments including OTDR, ILD, VFL, RL, IL, and strength testers
OEM Branding Accepted
Custom logo and branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry events including OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and Source Electronics Exhibition.
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available according to requirements
Want to Know more details about this product
