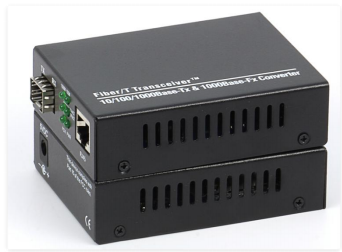

10/100/1000M SFP Port Media Converter
Product Details:
| Place of Origin: | China，Shenzhen |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Model Number: | DF-MC-1000M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be Negotiable |
| Packaging Details: | 0.1kg/pcs |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union, Paypal, MoneyGram |
| Supply Ability: | 100000pcs a month |
|
Detail Information |
|||
| Access Method:: | 10/100/1000Mbps | Wavelength:: | 850nm/1310nm/1550nm |
|---|---|---|---|
| Power Dissipation:: | 3 W | Power Supply:: | DC5V 1A (external Power), AC220 0.5A /DC-48( Internal Power ) |
| Operating Temperature:: | 0 ~ 50 ℃ | Storage Temperature:: | 40~ 70 ℃ |
| Highlight: | Gigabit SFP media converter,10/100/1000M fiber converter,SFP port fiber optic converter |
||
Product Description
10/100/1000M SFP Port Media Converter
This advanced media converter provides seamless conversion between auto-adaptation 10Base-T, 100Base-TX, or 1000Base-T and 1000Base-SX/LX interfaces, operating in full duplex 1000M working pattern.
Product Features
- Advanced HIC solution with low-temperature-rise chip design eliminates need for cooling system
- Implements flow control to decrease broadcast storm and improve network efficiency
- High-quality optical-electronic-integration module ensures reliable data transmission and extended operational life
- Supports broadcast filtering, address auto-learning and auto-updating capabilities
- Store-and-forward operating mechanism for optimal data integrity
- Full-duplex flow control and half-duplex back pressure working patterns with auto-negotiation
- 9kbyte super data packet transmission via store and forwarder mode
- Comprehensive indicator lamps for link-loss, electrical and optical link diagnostics
- Exceeds 50,000 hours MTBF, compliant with telecom operating standards
- Flexible optical port selection: dual fiber (MM), dual fiber (SM), or single fiber (SM)
Key Specifications
- 10/100/1000Mbps auto-sensing for easy network upgrades
- Full-duplex and half-duplex auto-sensing capability
- MDI/MDI-X Auto Negotiation
- 10/100/1000Mbps store-and-forward operation
- 1000Mbps cut-through transmission
- Packet size support up to 1518 bytes (extendable to 1600 bytes)
- VLAN / VoIP / QoS packet compatibility
- Broadcast packet reduction and flow control
- STP support for redundant network formation
- Extremely low power consumption with stable thermal performance
- Multiple installation options: Desktop, Wall-mounted, Chassis, DIN-rail
- External Power Adapter or USB power source compatibility
- DIP Switch for configuration settings
