10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter
Product Details:
| Place of Origin: | China，Shenzhen |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Model Number: | DF-MC-1000M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Can be Negotiable |
| Packaging Details: | 0.1kg/pcs |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T, Western Union, Paypal, MoneyGram |
| Supply Ability: | 100000pcs a month |
|
Detail Information |
|||
| Item: | 1000M Media Converter | Wavelength:: | TX 1550 Nm/RX 1310 Nm |
|---|---|---|---|
| Power Consumption: | 0.2W | 1Working Power:: | DC5V 1A |
| AC Power Supply:: | 100V~ AC240V To 5V1A | Or DC Power Supply:: | -36~-72V To 5V1A |
| Highlight: | 10/100/1000Base-TX fiber optic converter,1000Base-FX media converter with warranty,gigabit Ethernet fiber optic converter |
||
Product Description

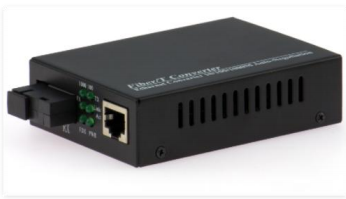

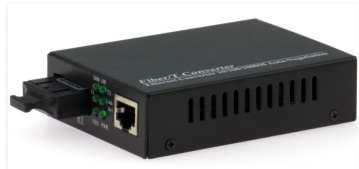

10/100/1000Base-TX to 1000Base-FX Fiber Optic Media Converter
The DF-MC-1000M Serial Fiber Media Converter translates signals from twisted-pair 10/100/1000M Base-TX cables to 1000Base-FX fiber optic cables, extending data transmission distance from 100 meters via copper cables to 120 kilometers using fiber optic technology.
Key Features
- 10/100/1000Mbps auto-sensing for easy upgrades
- Full-duplex and half-duplex auto-sensing
- MDI/MDI-X Auto Negotiation
- 10/100/1000Mbps store-and-forward operation
- 1000Mbps cut-through transmission
- Packet size up to 1518 bytes
- Supports VLAN, VoIP, and QoS packets
- Flow control with reduced broadcast packets
- STP support for redundant network formation
- Extremely low power consumption with stable performance
- Multiple installation options: Desktop, Wall-mounted, Chassis, DIN-rail
- External Power Adapter or USB power source
- DIP Switch for configuration settings
- Supports extra-long packets up to 1600 bytes
Technical Specifications
Frequently Asked Questions
Do you provide OEM service?
Yes, we can print your logo or label on the products or packaging.
Can you provide free samples?
Low-value samples can be provided free of charge, but shipping costs must be covered by the customer.
How can you guarantee the quality?
All products undergo 100% testing before shipment as part of our comprehensive quality management system.
What is your delivery time?
Samples: 3-5 working days. Formal orders: 7-10 working days.
What's your payment terms?
We accept T/T, Western Union, PayPal, and L/C. Samples require 100% payment. Formal orders: 30%-100% deposit with balance payment before shipment.
