MPO/MTP Fiber Distribution Panel – 1U Rack-Mount, Pre-Connectorized Cassette Module, 4 Slots, LC/MPO Interface, for Data Center Fiber Management
Product Details:
| Place of Origin: | ShenZhen, China |
| Brand Name: | Takfly/OEM/Nuetral |
| Certification: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Model Number: | TK-HRS-1096E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | can be negotiated |
| Packaging Details: | Carton |
| Delivery Time: | 5-9 working days depend on QTY |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 100 PCS/Days |
|
Detail Information |
|||
| Highlight: | 1U rack-mount fiber distribution panel,MPO/MTP pre-connectorized cassette module,LC/MPO data center patch panel |
||
|---|---|---|---|
Product Description

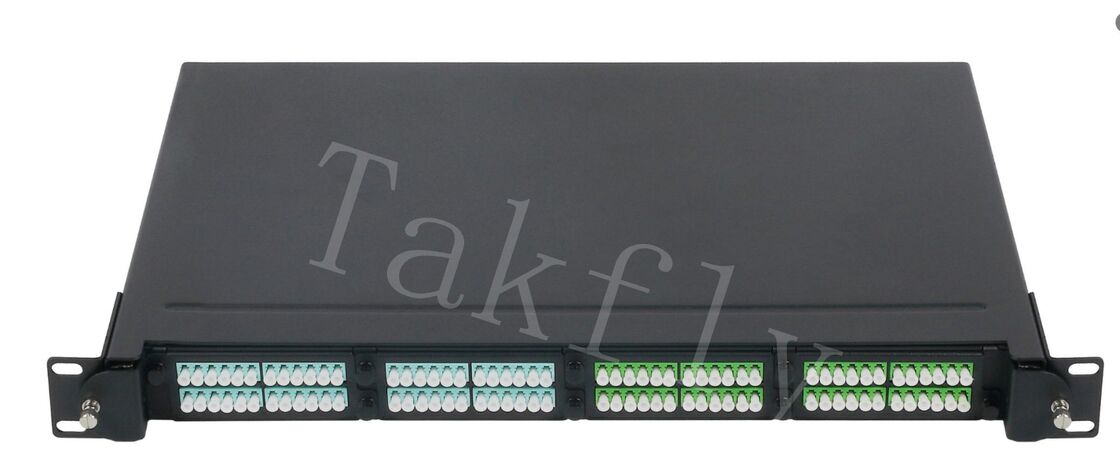

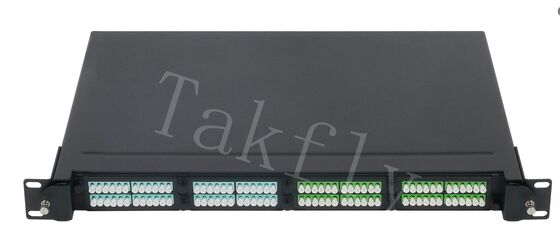

MPO/MTP Fiber Distribution Panel – 1U Rack-Mount
Pre-connectorized cassette module with 4 slots, LC/MPO interface, designed for data center fiber management applications.
Product Overview
This 1U 19-inch MPO/MTP high-density rack-mount fiber patch panel is engineered for large data center environments including MDF applications, IDF wiring areas, optical fiber backbone connections, and high-density integrated fiber environments. Designed for installation in standard 19-inch racks and cabinets.
The panel accommodates 4 pre-connected cassette modules with maximum capacity of 1152 cores for MPO interface or 96 cores for LC interface. Each independent pre-terminated module box is placed within the optical fiber distribution frame to create a complete patch panel system.
Applications
- Optical fiber communication dense wiring systems between buildings
- Optical link interconnection in optical active equipment for LAN cabling
- Telecommunication base stations
- Data center rooms in industrial areas
- Data center rooms in commercial buildings
- CATV systems
- LAN networks
- WAN networks
- FTTX deployments
Key Features
- Constructed from high-quality aluminum alloy material with sturdy, durable electrostatic coating surface
- Designed for 19-inch rack-mount and cabinet installation, ideal for cassette modules centralized management
- Flexible configuration options: 1U high-density size capacity 96 fibers for LC interface or installation with LC, SC, MPO/MTP adapter panels fusion splice type
- Compatible with male or female MPO/MTP connectors
- Connected and positioned by PIN and adaptor for precise, stable connections
- Modular design with plug-in locking structure and clear fiber line sequence identification
- Easy testing, installation, removal, and mating adjustments
- Compact, lightweight cassette modules and patch panels with impact-resistant, high-pressure, flame-retardant, corrosion-resistant construction
- Strong structure protects internal optical fibers with ultra-high sealing performance for dust-proof operation
- Innovative design optimized for advanced network equipment
Technical Specifications
Packaging
Structure Design
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
Strong R&D Capability: More than 10 R&D engineers
Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities: More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
OEM Branding Accepted: Custom logo/branding available
Quality Control Process
Incoming inspection: Spot check of raw materials before production
In-process inspection: Full inspection at every individual process completion
Pre-packaging inspection: Full inspection of finished products before packing
Pre-shipping inspection: Spot check before shipping
Industry Participation
Active participation in major industry exhibitions including Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, and events in China.
Delivery Information
Samples: 1-3 working days
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton, and pallet options available according to your requirements
