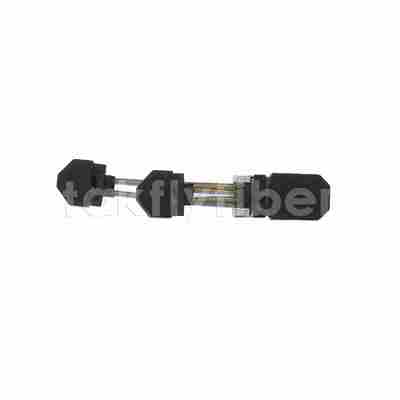

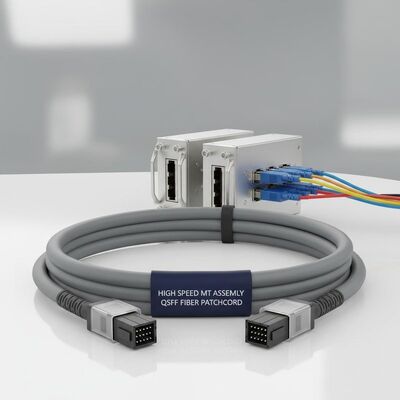

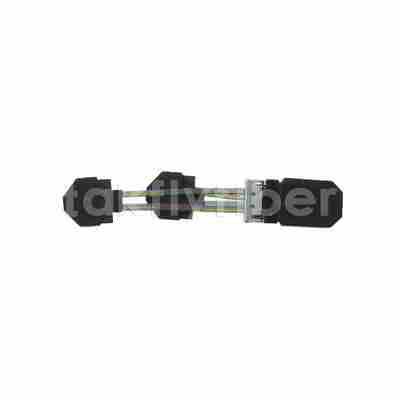

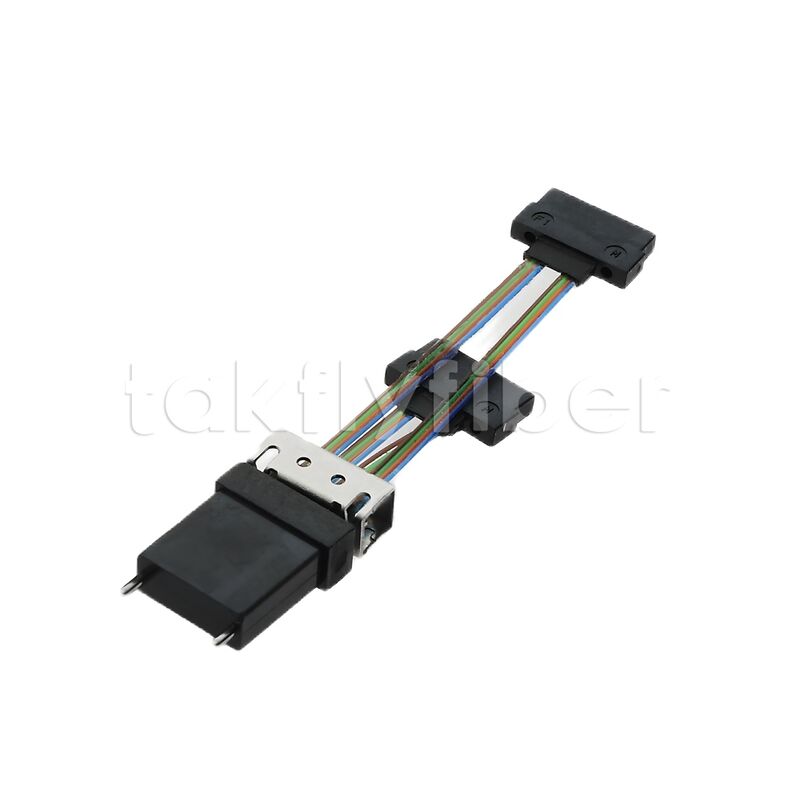

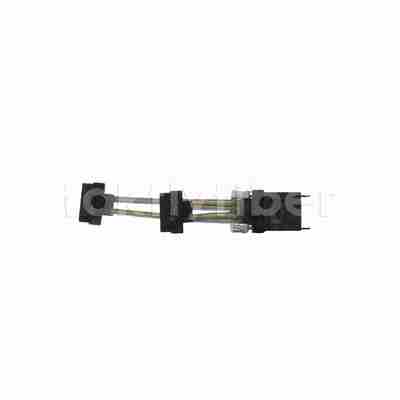

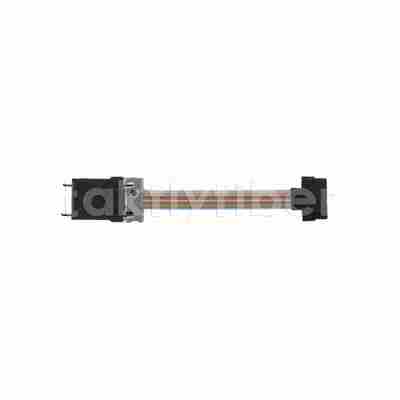

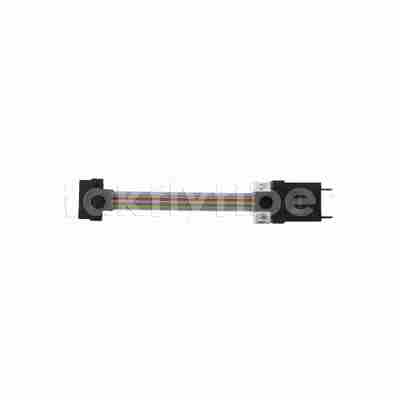

High Speed Low Loss Customizable MT Assembly Fiber Optic Patchcord for QSFP Modules
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | OEM |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | MPO MTP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 5.99~19.99US$/PC |
| Packaging Details: | with Carton Box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 50000pcs per week |
|
Detail Information |
|||
| Product Name: | High Speed MT Assembly Fiber Optic Patchcord For QSFP Modules | Fiber Cores: | 2F/4F/8F/12F/24F |
|---|---|---|---|
| Fiber Mode: | OM2, OM3, OM4, OM5; OS1,OS2 | Polishing Type: | APC Or PC |
| Gender: | Male, Female | Loss: | Low Loss Or Standard Loss |
| Fiber Length: | 20mm To 50mm | Fiber Shape: | Ribbon Type |
| Length Tolerance: | +0.3/-0mm~+0.5/-0mm | ||
| Highlight: | High Speed MT Patchcord,Low Loss QSFP Patchcord,Customizable MT Assembly Fiber Optic Patchcord |
||
Product Description
High Speed MT Assembly Fiber Optic Patchcord for QSFP Modules
Takfly's High Speed MT Short Patchcord is a vital component in parallel optic technology, specifically designed to connect internal optical lenses and external ports in QSFP optical modules, ensuring seamless signal transmission. With attributes like stable transmission, high reliability, and customizable options, this jumper finds extensive applications in optical modules, testing equipment, medical devices, and more.
Takfly offers a comprehensive range of MT patchcord products, allowing flexible customization of transmission modes, cable types, and connector variations.
Key Features
- Compatible with GR-1435 and GR-1221 standards
- Transmission mode: multi-channel parallel optical connection
- Support for 40G (4x10G), 100G (4x25G), 4x32G, 200G (8x25G), 800G (8x100G)
- Coupling mode: passive coupling between MT and MT at 0° and 8° through guide pin
- Insertion loss ≤ 0.60dB, typical insertion loss 0.20dB, return loss ≥ 20dB
- Operating temperature: -40℃ to +85℃
Applications
The products are applied to QSFP, QSFP+, QSFP28, 100GPSM4, QSFP-DD, Micro, OSFP, CXP, CFP, CDFP and other parallel transmission optical transceiver modules, and support OEM/ODM matching for internal micro connection applications of various types of optical modules above 200G.
Technical Specifications
| Item | Specification |
|---|---|
| Connector A | MT insert with guide pin |
| Connector B | MT pin |
| Fiber shape | Ribbon / loose fiber |
| Number of cores | 8F/12F/16F/24F |
| Optical fiber model | OM2, OM3, OM4, OM5; OS1, OS2 |
| Length | 20-50mm Optional |
| Length tolerance | +0.3/-0mm to +0.5/-0mm |
Quality Assurance: 100% Testing for insertion loss, return loss, end face test, 3D Test and polarity test before shipping.
Why Choose Takfly
- More than 25 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 6+ years experience
- More than 10 R&D Engineers
- 16 sets of Germany imported injection machines and 16 production lines
- More than 30 sets of testing machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
- OEM branding accepted
- Regular exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
- Main Cooperated partners: Nvidia, Google, Vodafone, Telefonica, Orange, Movistar, and more
Quality Control Process
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
Samples: 1-3 working days
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton and pallet options available according to your requirements
Mass production orders: 3-7 working days
Packaging: Plastic bag, carton and pallet options available according to your requirements
