MTRJ Duplex Connector SM/MM FTTH Telecommunication
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | MTRJ Duplex Connector SM/MM FTTH Telecommunication |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | MTRJ Duplex Connector SM/MM FTTH Telecommunication | Insertion Loss: | Type 0.2-0.4dB, Max 0.5-1dB |
|---|---|---|---|
| Durability (1000 Mating): | 0.2dB Max | Operating Temperature: | -40℃~+75℃ |
| Storage Temperature: | -40℃～+85℃ | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | MTRJ fiber optic connector SM/MM,FTTH MTRJ connector,single-mode multi-mode MTRJ connector |
||
Product Description
MTRJ Duplex Connector SM/MM FTTH Telecommunication
The MTRJ Duplex is a compact, cost-effective, and user-friendly duplex fiber optic connector that was widely utilized in high-density cabling environments, distinguished by its small form factor and integrated dual-fiber design.
MTRJ Duplex Connector Applications
- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
MTRJ Duplex Connector Features
- MTRJ Duplex connector
- ANSI, IEC, TIA/EIA, NTT and JIS standard compatible
- UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
- Precision mechanical dimensions
- Zirconia ferrule PC or 8 degree APC diameter125~128 um high concentricity
- All parts compliant with ROHS
- Multi-piece type or one-piece type is available
- Single mode, Multimode and Angle PC
MTRJ Duplex Connector Specifications
| Item | Parameter | |
|
SM
|
MM | |
| Insertion Loss | Type 0.2-0.4dB, Max 0.5-1dB | |
| Durability (1000 times) | 0.2dB Max | |
| Operating Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |
|
Remark:Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance +1/-0.5um |
||

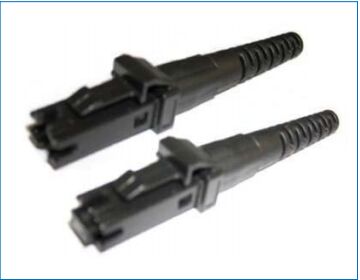

MTRJ Duplex Connector Pictures
Order Information
Why Choose TAKFLY
- With more than 26 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experience
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
