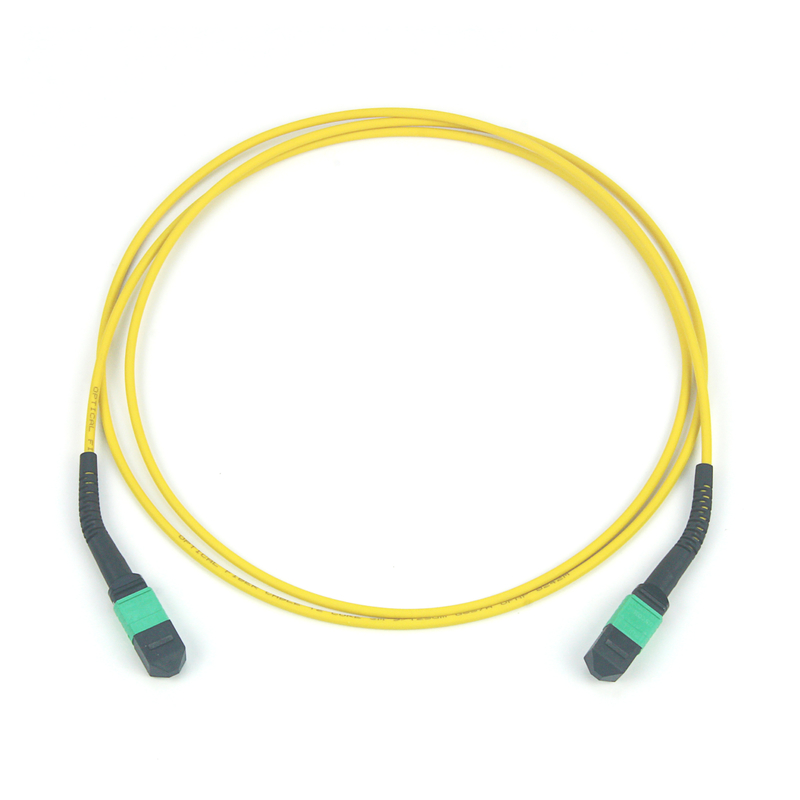

High Performance MPO MTP Fiber Optic Trunk Cable with Double Jacket Design and Customized Lengths
Product Details:
| Brand Name: | Takfly/DF |
| Certification: | CE, ROHS, ISO14001, ISO9001, CPR,ANATEL,REACH |
| Model Number: | TK-MPO-PC |
| Document: | MPO-MTP Patchcord specifica...EN.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 26 |
| Packaging Details: | International Export Packing |
| Delivery Time: | 1-3 Working Days( Depends On Quantity) |
| Payment Terms: | TT 100% |
| Supply Ability: | 3000 Pcs/ Day |
|
Detail Information |
|||
| Other Fanout Way: | Available | Gender: | Male( With PIN)/ Female(without PIN) |
|---|---|---|---|
| Jacket Od: | 3.0mm-4.5mm(double Jacket) | Cable Material: | LSZH / PVC |
| Interchangeability: | ≤ 0.2dB | Repeatability: | ≤ 0.1dB |
| Fiber Diameter: | 50/125um, 62.5/125um, 9/125um | Durability: | ≤ 0.2dB |
| Highlight: | LSZH Push On Bend boot Cable,Push On Bend boot Cable |
||
Product Description
Optimized Performance LSZH Multi-Fiber Push On Bend Boot Cable
Customized Lengths 1/2/3/5/7/10m With LSZH / PVC Material
Product Overview
The MPO MTP Fiber Optic Trunk Cable is a high-performance solution designed for data centers, telecommunications networks, and high-density environments. Featuring Multi-Fiber Push-On Connectors (MPO) on each end, it enables quick and reliable connections between devices.
Key Features
- MPO MTP Fiber Optic Cable with Multi-Fiber Termination Push-On Adapter
- Available in Male (With PIN) or Female (without PIN) configurations
- Customizable lengths: 1m, 2m, 3m, 5m, 7m, 10m or custom sizes
- Polish Type options: PC (Physical Contact) or APC (Angled Physical Contact)
- High repeatability: ≤ 0.1dB for consistent performance
- Durable double jacket design (3.0mm-4.5mm OD)
- Available in LSZH or PVC cable materials
- Breakout length options: 0.5M, 1M, 1.5M or customized
Technical Specifications
| Parameter | Specification |
|---|---|
| Durability | ≤ 0.2dB |
| Test Wavelength (nm) | SM: 1310/1550 MM: 850/1300 |
| Jacket OD | 3.0mm-4.5mm (double Jacket) |
| Fiber Diameter | 50/125um, 62.5/125um, 9/125um |
| Cable Material | LSZH / PVC |
| Fiber Mode | Singlemode / Multi-mode |
| Polish Type | PC/APC |
| Repeatability | ≤ 0.1dB |
| Length | Customized (1/2/3/5/7/10m, etc) |
| Breakout Length | 0.5M / 1M / 1.5M / Customized |
Applications
The MPO MTP Fiber Optic Cable is ideal for:
- Data center installations
- Telecommunications networks
- High-speed network infrastructure
- Complex device connections
Certified with CE, ROHS, ISO14001, ISO9001, CPR, ANATEL, and REACH standards. Available with quick delivery (1-3 working days) and flexible supply capacity (3000 pcs/day).
Support & Services
Comprehensive technical support available for installation, configuration, and troubleshooting. Additional services include product training, maintenance, and repair.
Packaging & Shipping
Each MPO MTP Fiber Optic Connector is carefully packaged in protective plastic cases and shipped in sturdy cardboard boxes to ensure safe delivery.
