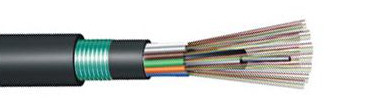

Outdoor Cable GYFTY53 2-144F Duplex Sheath Optical with MDPE/HDPE Sheath Material

Outdoor Cable GYFTY53 2-144F Duplex Sheath Optical with MDPE/HDPE Sheath Material

Product Details:

Place of Origin: Shenzhen, China
Brand Name: TAKFLY
Certification: CE,ROHS,REACH,ISO9001,ISO14001
Model Number: DF-Cable-GYFTY53

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pices
Price: Can be negotiated
Packaging Details: spone + box + carton
Delivery Time: 3-7working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Get Best Price Contact Now

Detail Information

Fiber Count: 2-144F Center Reinforcement: FRP/FRP With PE Cover
Loose Tube Material: PBT Fiber Options: G652D ,G655
Running Temperature: -20 ℃ ~+70 ℃ Outer Sheath Sheath Material: MDPE/HDPE
Protective Material: Water Blocking Tape/PSP
Highlight:

Outdoor Cable GYFTY53

,

Duplex Sheath Outdoor Cable

,

MDPE/HDPE Sheath Outdoor Cable

Product Description


   The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A FRP, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a central strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.



Product application:



1. Adopted to outdoor distribution;
2. Suitable for aerial, pipeline laying method;
3. Long distance and local area network communication.



Product characteristics:


1. Good mechanical and temperature performance;
2. High strength loose tube that is hydrolysis resistant;
3. Special tube filling compound ensure a critical protection of fiber;
4. Crush resistance and flexibility:
5. The following measures are taken to ensure the cable watertight:
         FRP used as the central strength member
         Loose tube filling compound
         100% cable core filling
         Water-blocking material
         PSP enhancing moisture-proof



Optical parameters and properties:


Outdoor Cable GYFTY53 2-144F Duplex Sheath Optical with MDPE/HDPE Sheath Material 0

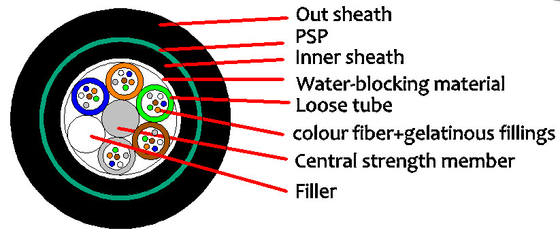

Product structure:

Outdoor Cable GYFTY53 2-144F Duplex Sheath Optical with MDPE/HDPE Sheath Material 1

Other requirements:

Length of production optical cable:2000M
Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GYFTY53 144C 16.5 MM/YY 00000M
