Customizable Cable Length Flat Duplex Optical Cable for Forced Ventilation Level Wiring

Customizable Cable Length Flat Duplex Optical Cable for Forced Ventilation Level Wiring

Product Details:

Place of Origin: Guangdong, SHENZHEN
Brand Name: TAKFLY
Certification: CE,ROHS,REACH,ISO9001,ISO14001
Model Number: DX-Armored-T715

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pices
Price: US$0.01 ~ US$1200/PC
Packaging Details: spone + box + carton
Delivery Time: 3-7working days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Get Best Price Contact Now

Detail Information

Keyword: Out Door Adss Fiber Optic Cable Port: Shenzhen Port
Fiber Type: G.652D, G.657A1, G.657A2, G.657B3 Use: Optical Jumper Or Pigtail
Attenuation: ≤0.4dB/km @1310nm, ≤0.3dB/km @1550nm Data Rate: 10G
Quality Control: 100% Test Before Shipping Color: Customized Color Optional
Length Per Drum: 2KM Or Customized Connector: SC FC ST LC MPO MU MTRJ D4 SMA...
Number Of Conductors: 4 Cover Material: PE
Installation Tensile: 1200N Jacket: HDPE
Cable Length: Customizable
Highlight:

Customizable Flat Duplex Optical Cable

,

Forced Ventilation Level Duplex Optical Cable

Product Description

Product description:

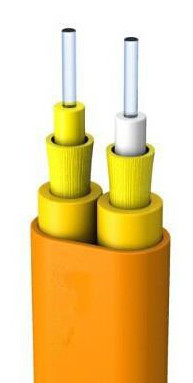

  Flat duplex optical cable uses Φ600µm or Φ900µm compact fiber as the optical transmission medium. The compact fiber is wrapped in a layer of aramid yarn as the strength component unit, which is made of a layer of PVC or LSZH material, It is then made of a flat layer of polyvinyl chloride (PVC) or a low-smoke halogen-free material (LSZH low-smoke, halogen-free, flame retardant) jacket.



Product application:

  • Flat Duplex (two basic units inside) moving connection jumper or tail fiber;
  • Indoor shaft stage and forced ventilation level wiring;
  • Interconnection of instruments and communication equipment.



Product characteristics:

  • Adopt a tight sleeve optical fiber for easy stripping;

  • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;

  • Good performance of flame-retardant ,low induced attenuation within the operating temperature range.

Optical parameters and properties:

Optical fiber type



Test wavelength

Decay Full injection bandwidth (MHZ.km) Effective modal bandwidth (MHZ.km)

Minimum

bending

radius(mm)

Typical (dB/km) Maximum (dB/km)
G652D



1310/ 1550nm

0.36/0.22 0.5/0.4 ... ... 16
G657A1 0.36/0.22 0.5/0.4 ... ... 10
G657A2 0.36/0.22 0.5/0.4 ... ... 7.5
62.5/ 125



850/ 1300nm

3.0/ 1.0 3.5/ 1.5 ≥200/500 ... 30
50/ 125 3.0/ 1.0 3.5/ 1.5 ≥500/500 ... 30
OM3 3.0/ 1.0 3.5/ 1.5 ≥1500/500 ≥2000/... 7.5
OM4 3.0/ 1.0 3.5/ 1.5 ≥3500/500 ≥4700/... 7.5
OM5 850/953nm/ 1300nm 3.0/.../ 1.0 3.5/.../ 1.5 ≥3500/ 1850/500 ≥4700/2470/... 7.5

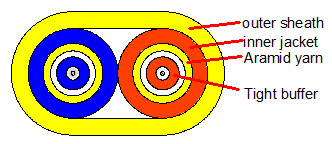

Product structure:

Fiber count 2



Optical fiber

Diameter(±1µm) 125µm
Coating diameter(±5µm) 250µm





Tight buffer

Diameter(±50µm) 900µm
Sheath materiall PVC/LSZH
Color 1. White 2. Yellow/Orange or other colors available upon request





Subunit

Outside diameter(±0. 15mm) 2.0mm 3.0mm
Sheath material PVC/LSZH
Color Yellow for single mode cable, Orange for multi mode cable; Or others color available upon request
Strength member Core reinforce Aramid yarn
Outer sheath Sheath material PVC/LSZH
Color Yellow for single mode cable, Orange for multi mode cable; Or others color available upon request













Cable

Outside diameter(±0.15*±0.30mm) 3.0*5.4 4.0*7.0
Cable weight (kg/km) 15 25
Max tensile force(N) Long-term/s hort-term 100/200 100/200

Crush

resistance(N/ 100mm)

Short-term 1000 1000
Min bend radius(D) Dynamic/ static 20/ 10 20/ 10
Running temperature -20 ℃ ~+70 ℃



Other requirements:

Length of production optical cable: 2000M

Optical cable outer sheath printing specifications, such as: ARMORED OPTICAL FIBER CABLE 4.0X7.0 SM G652D-9/ 125um - LSZH - MM/YY 00000M
