MPO/PC/F-LC/UPC Uniboot Multimode OM5 12F MPO Patch Cord
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Neutral/OEM |
| Certification: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | OM5 MPO-LC Patch Cord |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Zip-lock Bag |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, L/C, T/T, Paypal |
| Supply Ability: | 100PCS/Day |
|
Detail Information |
|||
| Cores: | 12 Fibers | Fiber Type: | Multimode OM5 |
|---|---|---|---|
| Length: | 5m, 10m And Customized | Cable Diameter: | 3.0mm Or 4.5mm |
| Connector Type: | OM5 MPO-LC | Cable Jacket: | LSZH，OFNP |
| Highlight: | OM5 12F MPO Patch Cord,Uniboot Multimode MPO Patch Cord |
||
Product Description
MPO/PC/F-LC/UPC Uniboot Multimode OM5 12F MPO Patch Cord
Fiber Optic MPO-LC OM5 Patch Cord Name:

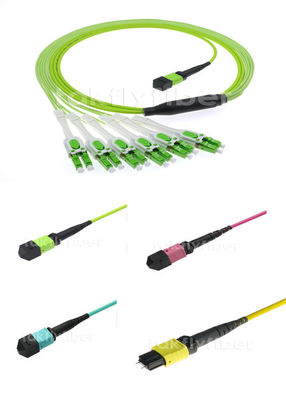

Multimode OM5 Lime Green MPO 12F Patch Cord MPO/PC/F-LC/UPC Uniboot
Fiber Optic MPO-LC OM5 Patch Cord Description:
This Multimode OM5 MPO 12F Patch Cord MPO/PC/F-LC/UPC Uniboot MPO-LC Patch Cord is in Lime Green. Other cores like 8 cores, 12 cores, 24 cores and other colors are also available.
Fiber Optic MPO-LC OM5 Patch Cord Features:
| Precision molded MT ferrule |
| High precision guide pins for exact alignment |
| Compact design, up to 4,8,12,24 fibers |
| IEC 61754-7 Compliant |
| Cable diameter 3.0mm, and 4.5mm available |
Fiber Optic MPO-LC OM5 Patch Cord Applications:
- Telecommunication Networks
- Active Deviced/Transceiver Interface
- Gigabit Ethernet
- CATV, Video and Multimedia
- Premise Installations
- Optical Switch interframe connections
- Data Center
Fiber Optic MPO-LC OM5 Patch Cord Specifications:
| Item | LC,SC,ST,FC....... | MPO/MTP | |
| End face type | PC,UPC and APC | PC and APC | |
| Fiber type | SM(G652,G655,G657)；MM(OM1-OM5) | ||
| Core number | 12, 24 | ||
| Cable Diameter | 0.9,2.0,3.0 | Mini Round cable:Max4.5mm； Ribbon cable:Max3.0*5.0mm | |
| Insertion loss(dB) | ≤ 0.3 | Standard:≤0.35/0.7(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max) | |
| Return loss(Min) |
UPC SM:40dB APC SM:60 dB PC MM:25 dB |
SM: APC:60dB | MM: PC:20dB |
| Test Wavelength (nm) | SM:1310/1550 MM:850/1300 | ||
| Repeatability | ≤ 0.1dB | ||
| Durability | ≤ 0.2dB | ||
| Interchangeability | ≤ 0.2dB | ||
Delivery:
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
Price: If your QTY is big, the price could be negotiated.
