Drop Wire Cable Patch Cord SC APC To SC APC Patch Cords Single Mode FTTH Flat Fiber Optic
|Place of Origin:||Shenzhen, China|
|Certification:||CE, ISO, RoHS, CPR, FCC|
Payment & Shipping Terms:
|Minimum Order Quantity:||Total length for 1KM Cable|
|Packaging Details:||PP bag/Drum+ Carton box|
|Delivery Time:||3-15 working days|
|Payment Terms:||L/C, T/T, Western Union, MoneyGram, Paypal|
|Supply Ability:||200000 pcs/ Month|
|Product Name:||Fiber Drop Cable SC/APC-SC/APC Patch Cord||Connector Type:||SC/APC-SC/APC|
|Fiber Count:||1 Fiber||Cable Diameter:||2.0*5.0mm|
|Mode Type:||Singlemode G657A2||Core Type:||9/125um|
|Cable Color:||Grey||Insertion Loss:||Less Than 0.35dB|
|Return Loss:||APC SM≥ 60 DB Or As Require||Outer Sheath Material:||LSZH Material|
fiber optic cable patch cord,
SC APC To SC APC Patch Cords,
fiber optic cable patch cord
Drop Wire Cable Patch Cord SC/APC-SC/APC Patchcord Single Mode FTTH Flat Fiber Optic
Fiber Optic Patchcord Product Name:
Fiber Drop Cable SC/APC-SC/APC Patch Cord
Fiber Optic Patchcord Description:
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a greay LSZH sheath, assembly the connectors SC/APC in both ends.

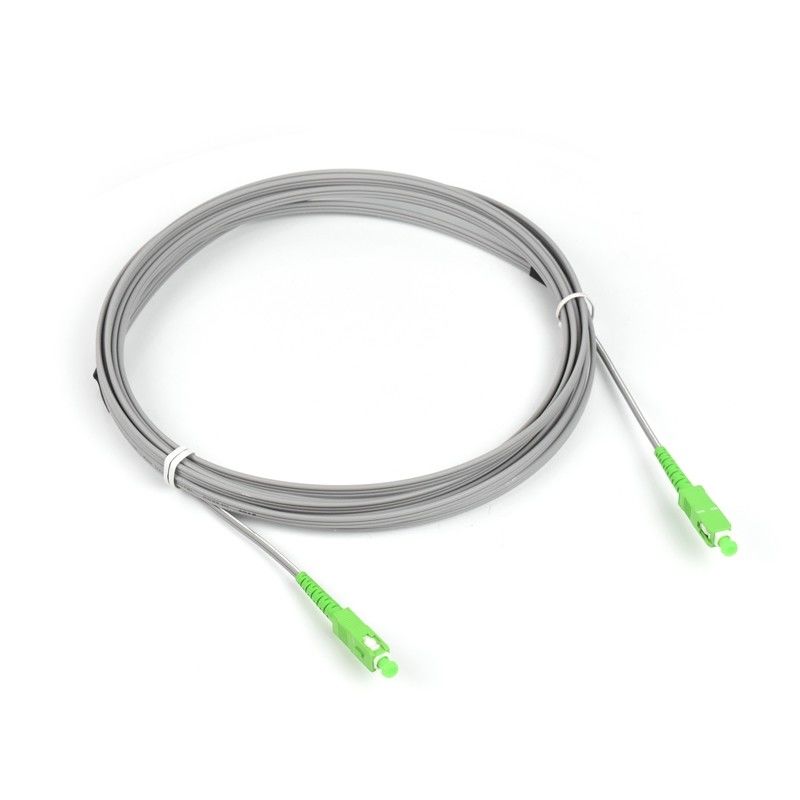

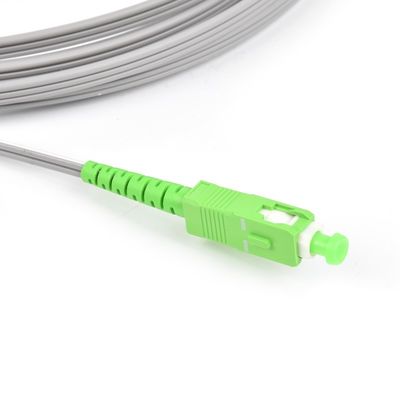

Fiber Optic Patchcord Photo:
Fiber Optic Patchcord Applications:
- Access Network
- Telecom/CATV Systems
Fiber Optic Patchcord Features:
- Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
- Simple structure, light weight and high practicability
- Novel flute design, easily strip and splice, simplify the installation and maintenance
- Low smoke, zero halogen and flame retardant sheath
- Standard: Telcordia GR-326-CORE
Fiber Optic Patchcord Specification:
|End face type||APC|
|Fiber type||SM(G652, G655,G657)；MM(OM1-OM5)|
|Cable Diameter||2.0*5.0,2.0,3.0 or customized(Simplex/duplex)|
|Insertion loss||≤ 0.35 dB|
|Return loss||UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB|
|Outer Sheath Material||PVC,LSZH,TPU|
How to order Fiber Optic Patchcord:
1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement
8. MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )
Fiber Optic Patchcord types:
Fiber Optic Patchcord Workshop:
Why choose TAKFLY--Advantages as follows:
- With more than 20 years manufacturing experience in Fiber optic products;
- More than 250 assembly workers with 3 years experienced;
- More than 10 R&D Engineers;
- 16 Sets Germany imported Injection Machine and 16 Production Lines;
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
- OEM Brand is acceptable.
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.
- Spot check the raw material incoming inspection before production;
- Fully check after every individual process finished;
- Fully check production half done;
- Fully check the finished products before packing;
- Spot check before shipping;
- Samples: 1-3 working days.
- Mass Production Order: 3-7 working days.
- Packaging: Plastic Bag, Carton and Pallet are available according to your request.
- DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
- By Sea or By Air, could use your own pointed forwarder or our cooperated one.
Payment Term: T/T,Paypal, Western Union and L/C are available.
Price: If your QTY is big, the price could be negotiated.
Q1: How can i get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quanlity problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Further-more we will also take action to improve the quality in future
Q6. What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7. What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We"ll show you the photos of the products and packages before you pay the balance
Q8. What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9. How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10. Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
