SC/APC - SC/APC Breakout Fiber Cable Singlemode SM 12 Cores Fiber Optic Patchcord

Product Description

Breakout Fiber Cable SC/APC - SC/APC Singlemode SM 12 Cores Fiber Optic Patchcord



Fiber Optic Patchcord Product Name:

12 Cores SC/APC - SC/APC SM Breakout Patch Cord


Fiber Optic Patchcord Description:

Breakout 12 Cores SC/APC-SC/APC Patch Cord is consist of 12 Fiber Connectors SC/APC in both ends, with 1 meter 1.6mm branch.



For termination and maintenance, branch optical cables are conducive to independent wiring or branching of optical fibers.



The application of these branch optical cables can be placed in the pipeline under the freezing point between the buildings, in the upward rise well in the building, under the floor of the computer room, and fiber to the desktop

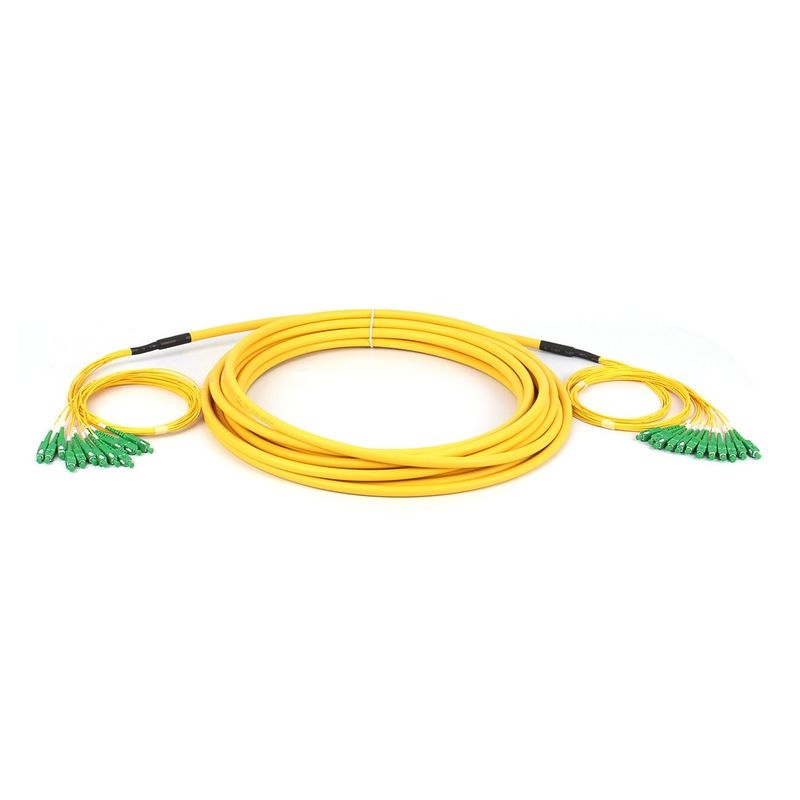

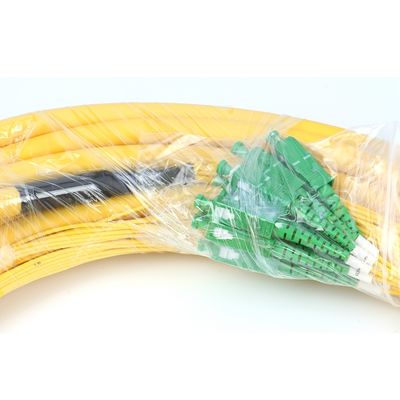

Fiber Optic Patchcord Photo:



Fiber Optic Patchcord Applications:


• Buildings
• Fiber to the Home
• Telecommunication networks
• Local area networks(LANs)
• Data processing networks
• Wide area networks(WANs)


Fiber Optic Patchcord Features:


• Independent Wiring
• Easily for fiber branch
• Low insertion loss and High reflection loss
• Good exchangeability
• Good durability
• High-temperature stability
• Standard: Telcordia GR-326-CORE



Fiber Optic Patchcord Specification:

End face type	APC
Fiber type	SM(G652, G655,G657)；MM(OM1-OM5)
Cable Diameter	2.0,3.0 or customized(Simplex/duplex)
Insertion loss	≤ 0.3 dB
Return loss	UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB
Repeatability	≤ 0.1
Durability	≤ 0.2dB
Interchangeability	≤ 0.2dB
Tensile strength	>70N
Operating Temperature	-20℃~70℃
Storage Temperature	-40℃~80℃
Outer Sheath Material	PVC,LSZH,TPU
Bending radius (Static/Dynamic	10D/20D
Length	Customized





How to order Fiber Optic Patchcord:



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8. MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female, fiber count (4/8/12/16/24/32 fiber )


Fiber Optic Patchcord types:




Fiber Optic Patchcord Workshop:






Why choose TAKFLY--Advantages as follows:
Professional manufacturer:

• With more than 20 years manufacturing experience in Fiber optic products;
• More than 250 assembly workers with 3 years experienced;
• More than 10 R&D Engineers;
• 16 Sets Germany imported Injection Machine and 16 Production Lines;
• More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, ect.
• OEM Brand is acceptable.
• Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia ,Global Soure Electronic Exhibition,etc.

Quality Control:

• Spot check the raw material incoming inspection before production;
• Fully check after every individual process finished;
• Fully check production half done;
• Fully check the finished products before packing;
• Spot check before shipping;

Delivery:

• Samples: 1-3 working days.
• Mass Production Order: 3-7 working days.
• Packaging: Plastic Bag, Carton and Pallet are available according to your request.

Shipping:

• DHL,UPS,FEDEX,TNT,EMS, usually is 3-5 working days. Would keep tracking shipping status and reporting to clients;
• By Sea or By Air, could use your own pointed forwarder or our cooperated one.

Payment Term: T/T,Paypal, Western Union and L/C are available.

Price: If your QTY is big, the price could be negotiated.
