AOC Cable 40G QSFP+ to 2SFP+ 3M-30M 40G to 2*10G Breakout Active Optical Cable for Data Center
Product Details:
| Place of Origin: | China |
| Brand Name: | Takfly |
| Certification: | CE,ROHS,FCC,REACH,ISO9001,ISO14001 |
| Model Number: | TKC40GQSFP-2*10GSFP-xM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | USD 35/pcs ~ USD 135/pcs |
| Packaging Details: | blister box + spone + carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, Paypal, L/C |
| Supply Ability: | 30000pcs/month |
|
Detail Information |
|||
| Speed: | 40Gbps | Transmission Distance: | 0.5-30M |
|---|---|---|---|
| Compatible Switch Brand: | CISCO/HP/Huawei/H3C/Juniper/ZTE/........ | Fiber Type: | OM3, OM4 |
| Highlight: | QSFP Optical Transceiver Module,3M Breakout Active Optical Cable,7M Optical Transceiver Module |
||
Product Description

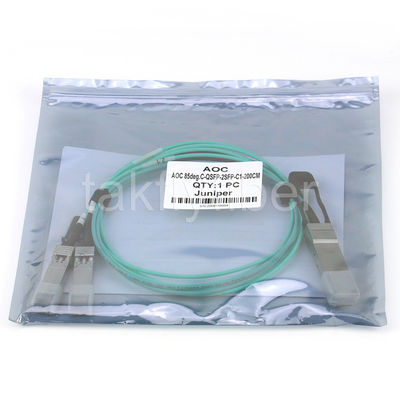

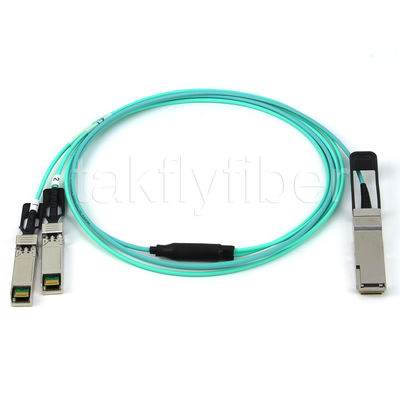

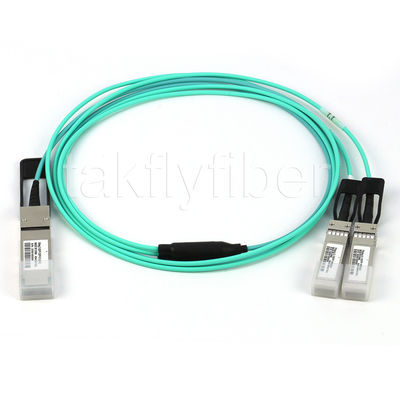

AOC Cable 40G QSFP+ to 2SFP+ 3M-30M 40G to 2*10G Breakout Active Optical Cable for Data Center
Description
The TK-2SFP10G-AOCXXM is a Two-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 2× SFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 40G to 2× 10G applications.
This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 2 x 10G InfiniBand
QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applications.
This product is leveraged from TAKFLY QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. Where applicable, consult these respective datasheets.
This AOC incorporates TAKFLY' proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
QSFP+ AOC end:
- Compliant to the 40GBASE-SR4 and XLPPI Specification per IEEE 802.3ba-2010 and supporting 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
- Compliant to the industry standard SFF-8436 QSFP+ Specification
-
Power Level 1: Max Power < 1.5 W
-
Operate at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbE application and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application
Each 2× SFP+ end:
- Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
- Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF”
-
Maximum power dissipation 0.35W per end.
Active Optical Cable Assembly:
- 0 to 85 C degree case temperature operating range
- Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
- Hot pluggable for ease of servicing and installation
- Two Wire Serial interface
- Utilizes optical fiber for high density and thin, lightweight cable management
Application
- 40GbE and 10GbE break-out applications for Datacom switch and router connections
- 40G to 2×10G density applications for Datacom and Proprietary protocol applications
- Data Center
Recommended Operating Conditions and Supply Requirements
Order Information
| Series | Product Description |
| 40G AOC QSFP+ to 2x10G SFP+ | QSFP+ to 2SFP+, 40Gb/s, AOC, 1M, MMF |
| QSFP+ to 2SFP+, 40Gb/s, AOC, 2M, MMF | |
| QSFP+ to 2SFP+, 40Gb/s, AOC, 3M, MMF | |
| QSFP+ to 2SFP+, 40Gb/s, AOC, 5M, MMF | |
| QSFP+ to 2SFP+, 40Gb/s, AOC, 7M, MMF | |
| QSFP+ to 2SFP+, 40Gb/s, AOC, 10M, MMF | |
| QSFP+ to 2SFP+, 40Gb/s, AOC, 15M, MMF | |
| QSFP+ to 2SFP+, 40Gb/s, AOC, 20M, MMF | |
| QSFP+ to 2SFP+, 40Gb/s, AOC, 25M, MMF | |
| QSFP+ to 2SFP+, 40Gb/s, AOC, 30M, MMF |
Q: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q: What is your delivery time ?
A: Generally, sample: 3~5 working days. Formal order: 7-10 working days.
Q: What's your payment terms ?
A: We accept T/T, Western Union, Paypal, L/C
For samples: 100% payment. Formal order: 30%~100% as deposit, balance payment before shipment.
