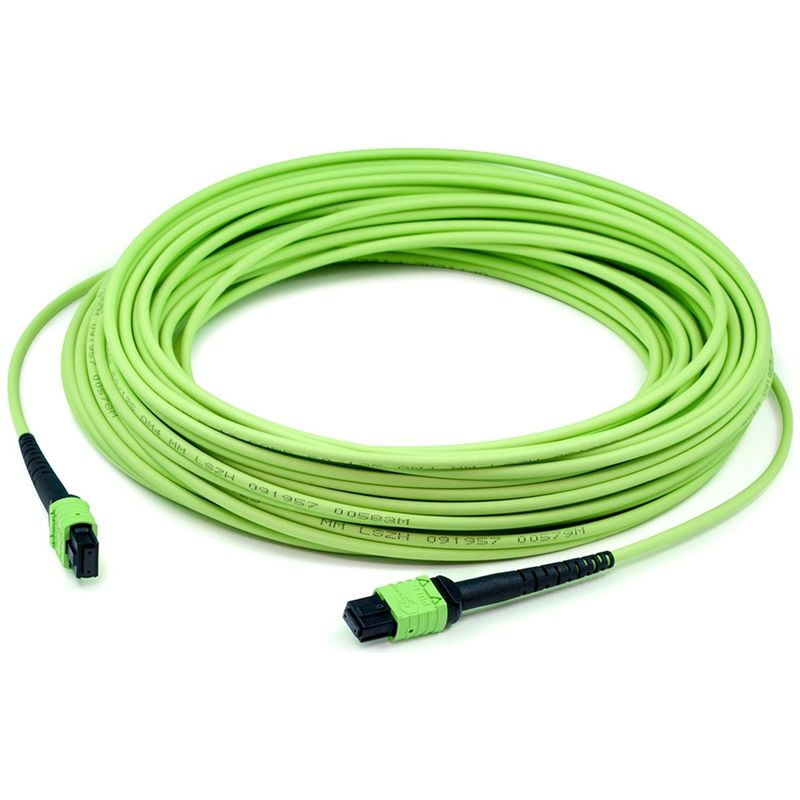

400G MPO MTP Female MM 50/125 OM5 3.0mm LSZH Fiber Optic Patchcord

400G MPO MTP Female MM 50/125 OM5 3.0mm LSZH Fiber Optic Patchcord

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Takfly/OEM
Certification: CE, ISO, RoHS, CPR, FCC
Model Number: MPO/MTP

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Can be negotiated
Packaging Details: PP bag+ Carton box
Delivery Time: 3-15 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 50000 pcs/ Month
Get Best Price Contact Now

Detail Information

Product Name: 400G MPO MTP Female MM 50/125 OM5 3.0mm LSZH Fiber Optic Patchcord Connector Type: MPO/MTP
Fiber Count: 24F Polarity: B Type
Gender: Female Cable Type: Round Cable 3.0mm
Mode Type: MM OM5 Cable Color: Light Green
Insertion Loss: 0.3-0.7dB Return Loss: UPC SM:40dB APC SM:60 DB PC MM:25 DB
Test Wavelength (nm): MM: 850/1300 ReDurabilitypeatability: ≤ 0.1dB
Outer Sheath Material: PVC、LSZH Length: Customized
High Light:

3.0mm MPO MTP

,

LSZH fiber optic Patchcord

,

OM5 MPO MTP

Product Description

MPO/MTP Patchcord Product Name:



400G MPO MTP Female MM 50/125 OM5 3.0mm LSZH Fiber Optic Patchcord







MPO/MTP Patchcord Description:



MPO/ MTP is a very high-density fiber optic connector, it only the double size of LC, but it can be contained from 8 fibers to 72 fibers. extremely save the space for the data center.



The MPO connection principle is that the same core number connector must be connected (12 cores with 12 cores, 24 cores with 24 cores, etc.), one male connector connects with a female connector, and it must be the same polishing type( PC to PC, APC to APC). If both are female MPO MTP connectors, then they can't be connected. Also, the PC polishing couldn't be connected with APC polishing.



When we choosing the MPO patch cord, you should know the gender and polarity of the MPO MTP patch cord in your data center. For example, if the MPO MTP connector is a male type, then you should purchase a female type MPO MTP patch cord so that they can be connected together.





MPO/MTP Patchcord Polarity:



400G MPO MTP Female MM 50/125 OM5 3.0mm LSZH Fiber Optic Patchcord 0



MPO/MTP Patchcord Applications:



  • Asynchronous Transmission Mode(ATM)
  • Gigabit Ethernet
  • Active Device/Transceiver Interface
  • CATV, Video, and Multimedia
  • Premise Installations
  • Telecommunication Networks
  • Parallel optical interconnects between PC Cards and patch panels
  • Interconnection for O/E modules
  • Industrial & Military
  • Optical Switch interframe connections




MPO/MTP Patchcord Features:



  • Precision molded MT ferrule
  • High precision guide pins for exact alignment
  • Compact design, up to 4,8,12,24 fibers
  • IEC 61754-7 Compliant
  • EIA/TIA-604-5 Compliant





MPO/MTP Patchcord Specification:

Item

LC,SC,ST,FC.......

MPO/MTP

End face type

PC,UPC and APC

PC and APC

Fiber type

SM(G652,G655,G657);MM(OM1-OM5)

 Core number

12,24

Cable Diameter

0.9,2.0,3.0

Mini Round cable:Max4.5mm;

Ribbon cable:Max3.0*5.0mm

Insertion loss(dB)

≤ 0.3

Standard:≤0.35/0.7(Typical/Max)

Low Loss:≤0.2/0.35(Typical/Max)

Return loss(Min)

UPC SM:40dB

APC SM:60 dB

PC MM:25 dB

SM:

APC:60dB

MM:

PC:20dB

Test Wavelength(nm)

SM:1310/1550

MM:850/1300

Repeatability

≤ 0.1dB

Durability

≤ 0.2dB

Interchangeability

≤ 0.2dB

Operating Temperature

-20℃~70℃

Storage Temperature

-40℃~80℃

Outer Sheath Material

PVC,LSZH

Bending radius(Static/Dynamic)

10D/20D

Length

Customized





MPO/ MTP Patchcord fiber count types:



400G MPO MTP Female MM 50/125 OM5 3.0mm LSZH Fiber Optic Patchcord 1





MPO/ MTP Patchcord Workshop:



400G MPO MTP Female MM 50/125 OM5 3.0mm LSZH Fiber Optic Patchcord 2





How to order MPO /MTP Patchcord



1. Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
2. Mode type : single mode ( UPC and APC ) / multi mode ( PC )
3. Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
4. Coating material : PVC / LSZH
5. fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
6. Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
7. Patch cord length : according to your requirement

8.MPO/MTP connector should let us know which method ( A type / B type /C type ), male or female , fiber count (4/8/12/16/24/32 fiber )
