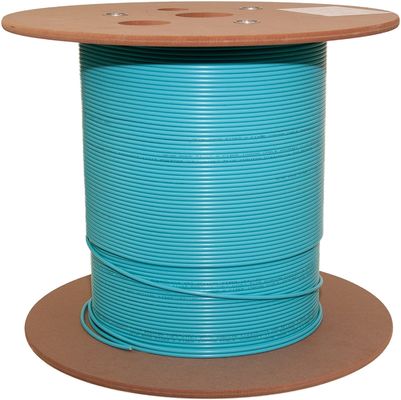

OM3 Aqua Jacket Tight Buffer Fiber Optic Cable 24 Core Indoor Fiber Distribution Cable
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Takfly/OEM |
| Certification: | CE, ISO, RoHS, CPR, FCC |
| Model Number: | OM3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1KM |
|---|---|
| Price: | Can be negotiated |
| Packaging Details: | Standard export packing |
| Delivery Time: | 3-15 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Paypal |
| Supply Ability: | 40KM / DAY |
|
Detail Information |
|||
| Product Name: | 24 Fibers Indoor Distribution Cable OM3 Aqua Jacket Tight Buffer Fiber Optic Cable | Mode Type: | Multimode |
|---|---|---|---|
| Fiber Count: | 24 Fibers | Cable Color: | Aqua |
| Jacket Material: | LSZH | Cable Type: | Distribution Cable |
| Core Type: | 50/125um | Cable Diameter: | 8.0mm |
| Max.Tension （N）: | Long-term 250N; Short-term 700N | Min. Bending Radius (mm): | Dynamic 20D; Static10D |
| Storage Temperature （℃): | -20~+70 | Application: | Indoor Distribution |
| High Light: | OM3 Fiber Optic Cable,OM3 fiber distribution cable,8.0mm Fiber Optic Cable |
||
Product Description
Fiber Optic Cable Product Name:
24 fibers indoor distribution cable OM3 aqua jacket tight buffer fiber optic cable
Fiber Optic Cable Description:
Fiber optic cable has indoor cable and outdoor cable. The 24 fibers indoor distribution cable OM3 aqua jacket tight buffer fiber optic cable is an indoor type cable. it only can be used in the indoor data center, cable connection, cable distribution.

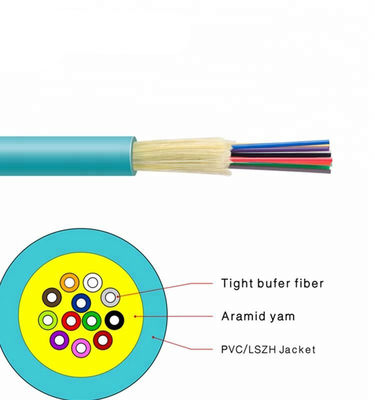

Distribution Tight Buffer Optical Cable use 2~48core Ø0.9mm or Ø0.6mm flame-retardant tight buffer fiber as the optical communication medium.

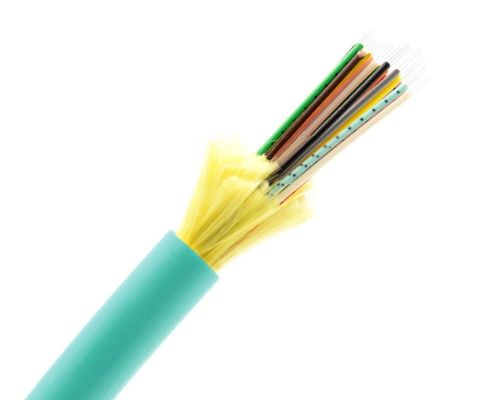

The tight buffer fiber wrapped with a layer of aramid yarn as a strength member,then completed with a layer of PVC or LSZH material as out jacket.
Fiber Optic Cable Characteristics:
- Large fiber count small out diameter
- Non-metal central strength member
Fiber Optic Cable Application:
- Components for various indoor cables
- Suitable for patch cords and pigtails
- Suitable for communication equipment served
Fiber Optic Cable Technical Parameters:
| Fiber count | Diameter (mm) |
Weight (Kg/km) |
Max.Tension (N) |
Min. Bending Radius (mm) |
Storage temperature (℃) |
||
| Long-term | Short-term | Dynamic | Static | ||||
| 4 | 4.8 | 22 | 80 | 150 | 20D | 10D | -20~+70 |
| 6 | 5.2 | 25 | 80 | 150 | 20D | 10D | |
| 8 | 5.5 | 27 | 100 | 300 | 20D | 10D | |
| 10 | 5.6 | 30 | 150 | 450 | 20D | 10D | |
| 12 | 6.0 | 35 | 200 | 600 | 20D | 10D | |
| 24 | 8.0 | 60 | 250 | 700 | 20D | 10D | |
| 48 | 12.5 | 120 | 500 | 1200 | 20D | 10D | |
How to order Fiber Optic Cable:
|
Fiber Type |
Single-mode | multimode |
| 9/125um G652D | 62.5/125um OM1 | |
| 9/125um G657A1 | 50/125um OM2 | |
| 9/125um G657A2 | 50/125um OM3-150 | |
| 9/125um G657B3 | 50/125um OM3-300 | |
| 9/125um G655 | 50/125um OM4 | |
| 50/125um OM5 | ||
| Core type | YOFC, Corning | |
| Fiber count | Simplex ,Duplex, 4cores, 6cores, 12cores, 24cores,48core.... | |
| Cable jacket | PVC, LSZH, PE | |
| cable type | Indoor / outdoor cable,armored cable, drop cable...... | |
| Cable color | Blue, orange, green, brown, grey, white, red, black, yellow, magenta, pink, aqua. | |
| Cable diameter | 0.9mm, 2.0mm, 3.0mm.... | |
| Length / drum(meter) | 1000/2000/3000......... | |
| Logo print | available | |
FQA :
1. Q: Are you a manufacturer?
A: yes, we are a manufacturer, FTTH solution, and data center total solution provider in Shenzhen, China, established in 2000.
2. Q: What's your MOQ?
A: MOQ can be 1 pcs, but the price is not competitive. With more quantity, the price will be more competitive.
3. Q: Can you quote the FOB price?
A: yes. We can deliver by air, DHL, TNT, UPC, FEDEX, etc. For big quantity, we will deliver it by sea.
We can quote the price with freight and lead time for you after you let us know detailed requirements with quantity.
We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
4. Q: How is your quality?
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified.
All the products are 100% test before delivery.
5. Q: What's your lead time?
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2 -3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
6. Q: What's your warranty?
A: Depends on different products, we have1 years warranty for the patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
7. Q: What's your packing?
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
8. Q: Can you offer OEM/ODM?
A: yes, we can. all products accept OEM /ODM. we can sign the Confidentiality Agreement.
9. Q: Can I have a sample?
A: It depends on which products, Free samples provide under 10 USD. Freight will be paid by the buyer before delivery.
10. Q: How can I order?
A:1.send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
2.We will offer our quotation with lead time.
3.After the quotation confirmed, we will send a PI with our bank account.
4.Production will be arranged after the payment received.
5.Confirm the consignee with you before we deliver it.
6.The tracking number will be provided after the delivery.
- Q: What your payment term?
A: T/T, Western Union, Paypal, Money Gram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
