TK-B23(32)92-3LCD10 10Gbps SFP+ Bi-Directional Transceiver, 10km Reach Tx1270/1330nm / Rx1330/1270 nm
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-B23(32)92-3LCD10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | TK-B23(32)92-3LCD10 10Gbps SFP+ Bi-Directional Transceiver, 10km Reach Tx1270/1330nm / Rx1330/1270 Nm | Supply Voltage: | 3.14-3.46V |
|---|---|---|---|
| Supply Current: | 300 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 180-700 MA | Data Input Swing Differentia: | 400-1800 MV |
| Transmit Disable Assert Time: | 10 Us | Differential Data Output Swing: | 300-850 MA |
| Operating Case Temperature: | 0 To +70°C | Warranty: | 1 Years, Lifetime Maintenance |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | 10Gbps SFP+ transceiver 10km reach,Bi-Directional transceiver Tx1270/1330nm,SFP+ optical module with warranty |
||
Product Description

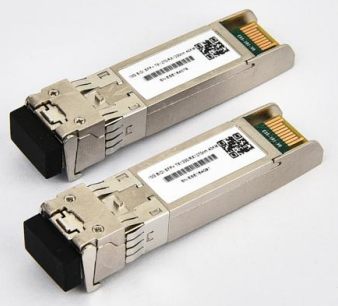

TK-B23(32)92-3LCD10 10Gbps SFP+ Bi-Directional Transceiver
TK-B23(32)92-3LCD10
10Gbps SFP+ Bi-Directional Transceiver, 10km Reach
Tx1270/1330nm / Rx1330/1270 nm
Tx1270/1330nm / Rx1330/1270 nm
Product Overview
The TK-B23(32)92-3LCD10 series single mode transceiver is a small form factor pluggable module designed for duplex optical data communications, including 10GBASE-LR/LW as defined by IEEE 802.3ae. Featuring an SFP+ 20-pin connector, it enables hot plug capability for seamless integration.
This module is engineered for single mode fiber operation with nominal wavelengths of 1270nm or 1330nm. The transmitter section employs a multiple quantum well DFB laser that complies with Class 1 laser safety standards per IEC-60825.
The receiver section incorporates an integrated InGaAs detector preamplifier (IDP) mounted in an optical header, paired with a limiting post-amplifier IC for optimal performance.
Applications
- 10GBASE-LR at 10.3125Gbps
- 10GBASE-LW at 9.953Gbps
- Other Optical Links
Key Features
- Supports 9.95Gb/s to 10.3Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3V Supply
- Up to 10km on 9/125um SMF
- A:1270nm DFB Laser transmitter, 1330nm receiver
- B:1330nm DFB Laser transmitter, 1270nm receiver
- Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Operating case temperature: Standard: 0 ~ 70 °C
Compliance Standards
- SFP+ MSA Compliant
- SFF-8472 reversion 9.5 compliant
- IEEE802.3-2005 compliant
- Telcordia GR-468-CORE compliant
- FCC 47 CFR Part 15, Class B compliant
- FDA 21 CFR 1040.10 and 1040.11, class1 compliant
- RoHS compliant
Technical Specifications
Technical Notes
- Connected directly to TX data input pins. AC coupled thereafter.
- Or open circuit
- Into 100 ohms differential termination.
- 20 - 80%.
- Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
- Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
