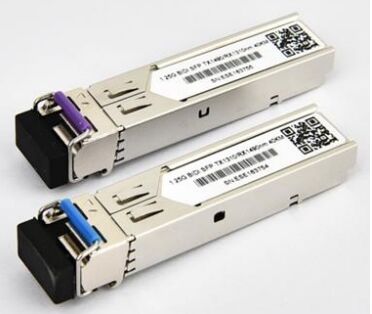

TK-B3424-3LCD20 1.25Gbps SFP Bi-Directional Transceiver, 20KM Reach Tx1310nm/Rx1490nm
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | DF-PS-G 10/100/1000M PoE Splitter Cable (13W) |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | TK-B3424-3LCD20 1.25Gbps SFP Bi-Directional Transceiver, 20KM Reach Tx1310nm/Rx1490nm | Supply Voltage: | 3.15-3.6V |
|---|---|---|---|
| Supply Current: | 185-280 MA | Input Differential Impedance: | 100 Ω |
| Single Ended Data Input Swing: | 250-1200 MV | Transmit Disable Assert Time: | 10 Us |
| ISingle Ended Data Output Swing: | 250-800 MV | Power Supply Rejection: | 100 MVpp |
| Working Temperature: | 0 °C To +70 °C | Storage Temperature: | -40 °C To +85 °C (Industrial) |
| Warranty: | 1 Years, Lifetime Maintenance | Fiber Brand: | Corning, YOFC, OFS, Draka |
| Highlight: | 1.25Gbps SFP transceiver 20KM reach,Bi-Directional SFP transceiver Tx1310nm/Rx1490nm,Optical transceiver module with 20KM range |
||
Product Description
The SFP-BIDI transceivers are high-performance, cost-effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps with 20KM transmission distance over single-mode fiber.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472 specifications.
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1310nm FP laser and PIN photodetector for 20KM transmission
- Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
- Digital Diagnostic Monitoring with Internal or External Calibration
- Compatible with SONET OC-24-LR-1
- RoHS compliant
- +3.3V single power supply
- Operating case temperature range: 0°C to +70°C (Commercial) / -40°C to +85°C (Industrial)
Notes:
1. Connected directly to TX data input pins. AC coupled thereafter.
2. Or open circuit.
3. Into 100 ohms differential termination
4. 20 - 80%
5. Loss Of Signal is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
6. Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
