GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F
Product Details:
| Place of Origin: | China, Shenzhen |
| Brand Name: | DF/OEM/Nuetral |
| Certification: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Model Number: | TK-PC-48F-SC-OS2-50M |
Payment & Shipping Terms:
| Minimum Order Quantity: | negotiable |
|---|---|
| Price: | negotiable denpend on QTY |
| Packaging Details: | Blister box+Carton |
| Delivery Time: | 5-9 working days depends on QTY |
| Payment Terms: | Western Union, T/T, MoneyGram/Paypal |
| Supply Ability: | 1000PCS/Day |
|
Detail Information |
|||
| Product Name: | GJFXTKV Optical Cable | Fiber Count: | 2-24 |
|---|---|---|---|
| Optical Fiber Diameter(±1µm): | 125μm | Optical Fiber Coating Diameter(±5µm): | 250μm |
| Loose Tube Diameter(mm): | 1.8 2.2-2.5 3.0 | Core Reinforce: | E-glass Yarn Or Aramid Yarn |
| Supplementar: | Filler | Sheath Sheath Material: | MDPE/HDPE Or LSZH |
| Color: | Black | Outside Diameter(mm): | 6.0; 8.0 |
| Cable Weight (kg/km): | 45;55;85 | Operation Temperature: | -20℃~70℃ |
| Fiber Brand: | Corning, YOFC, OFS, Draka | ||
| Highlight: | MDPE HDPE fiber optic cable,LSZH fiber optic cable,2-24F optical cable |
||
Product Description
GJFXTKV Optical Cable MDPE/HDPE or LSZH 2-24F

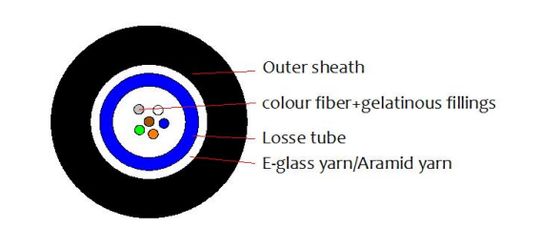

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking glass yarn/Aramid yarn. Then the cable is completed with a PE/LSZH sheath.
Product Applications
- Adopted to indoor distribution
- Suitable for communication equipment served
- With excellent waterproofing performance
- Meet various requirements of market and clients
Product Features
- Good mechanical and temperature performance
- High strength loose tube that is hydrolysis resistant
- Special tube filling compound ensure a critical protection of fiber
- The following measures are taken to ensure the cable watertight:
- Loose tube filling compound
- 100% cable core filling
- Meet various requirements of market and clients
Optical Parameter and Properties
Product Structure
Other Requirements
- Length of production optical cable: 2000M
- Optical cable outer sheath printing specifications, such as:
OPTICAL FIBER CABLE GJFXTKV 24C 8.0 SM G652D MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
- With more than 25 years manufacturing experience in Fiber optic products
- More than 450 assembly workers with 3 years experienced
- More than 10 R&D Engineers
- 16 Sets Germany imported Injection Machine and 16 Production Lines
- More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
- OEM Brand is acceptable
- Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
- Spot check the raw material incoming inspection before production
- Fully check after every individual process finished
- Fully check production half done
- Fully check the finished products before packing
- Spot check before shipping
Delivery
- Samples: 1-3 working days
- Mass Production Order: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet are available according to your request
